Home › Saab › 2005 › 9-3 Arc, 2D Convertible, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › 6-Speed, AF40 › Component location › Fuse 2, engine bay fuse box 342 › Trionic › Notes

Fuse 2, engine bay fuse box 342: Trionic: Notes

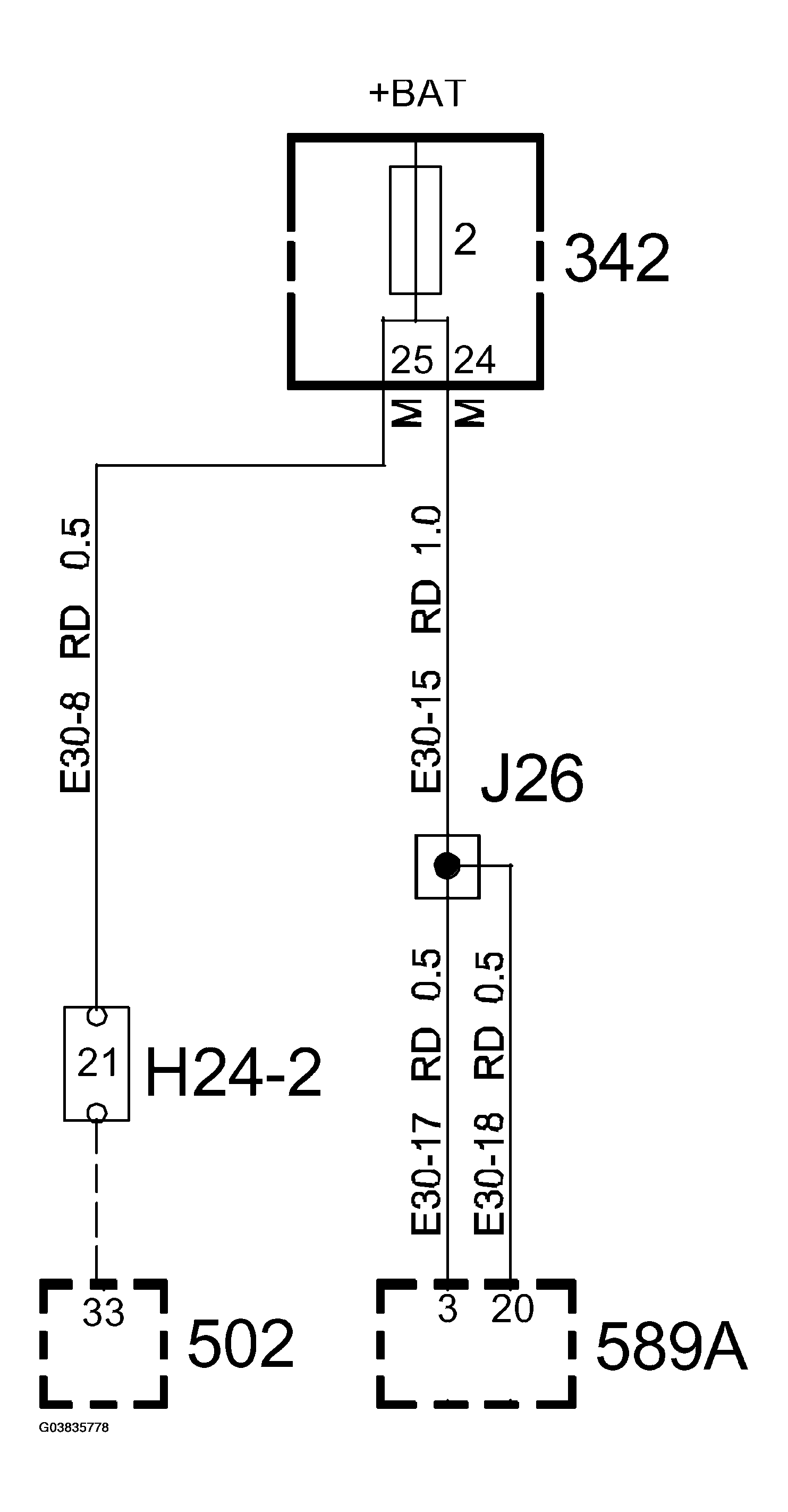

Fig 1: Circuit Diagram - Fuse 2 Trionic
G03835778Courtesy of SAAB-SCANIA OF AMERICA, INC.
