Installation Procedure

  1. NOTE: Only with new rear window pane.

    Apply primer.

  2. Apply adhesive bead.

    Cut into the tip of the cartridge in such a way that a bead of adhesive approximately 13 mm (0.5 in)  thick is produced.

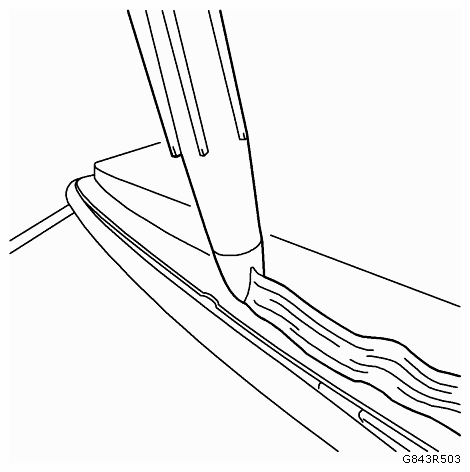

    Fig 1: Applying Adhesive Bead
    G09435637Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install rear window into the opening.
    • Second mechanic required.
    • Insert rear window with BO-641  suction holder.
    • Position using fibre tape.
  4. Remove BO-641  suction holder.
  5. Install the rear window trim finish panel. Refer to PARCEL SHELF, REPLACEMENT .
  6. Install the body lock pillar upper trim panel. Refer to C-PILLAR UPPER TRIM PANEL, REPLACE 4D .
  7. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  8. Close the rear compartment lid.
