Transmission Control Position Indicator Lamp Replacement

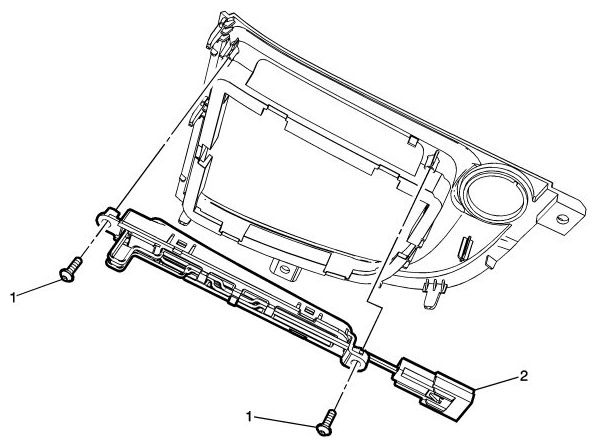

Fig 1: Transmission Control Position Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the front floor console trim plate.
1	Transmission Control Position Indicator Lamp Bolts (Qty: 2) Refer to CAUTION: RETAINER
2	Transmission Control Position Indicator Lamp Procedure  Disconnect the electrical connector.
