Center Differential Carrier: Installation

  1. Install the center differential assembly with the shim(s).
    NOTE: Insert the center differential assembly and shim(s) completely into the bearing shoulder bottom.

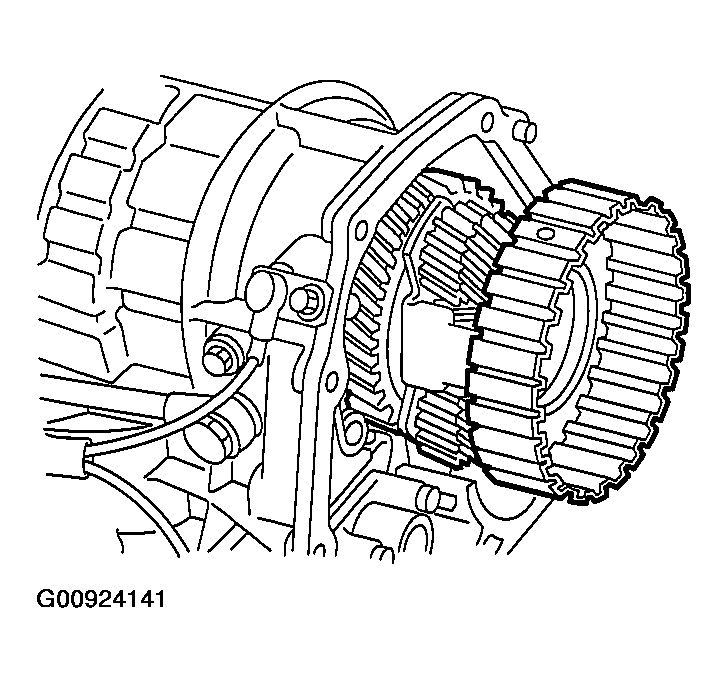

    Fig 1: Installing Center Differential Assembly With Shim
    G00924141Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the rear driveshaft. Refer to INSTALLATION .
  3. Connect the transmission case and extension case, and install the rear wheel speed sensor. Refer to INSTALLATION .
  4. Install the transmission assembly onto vehicle. Refer to INSTALLATION .
