Inspection
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on a level surface.
- Move the vehicle 3 to 4 meters (10 to 13 feet) directly forward.

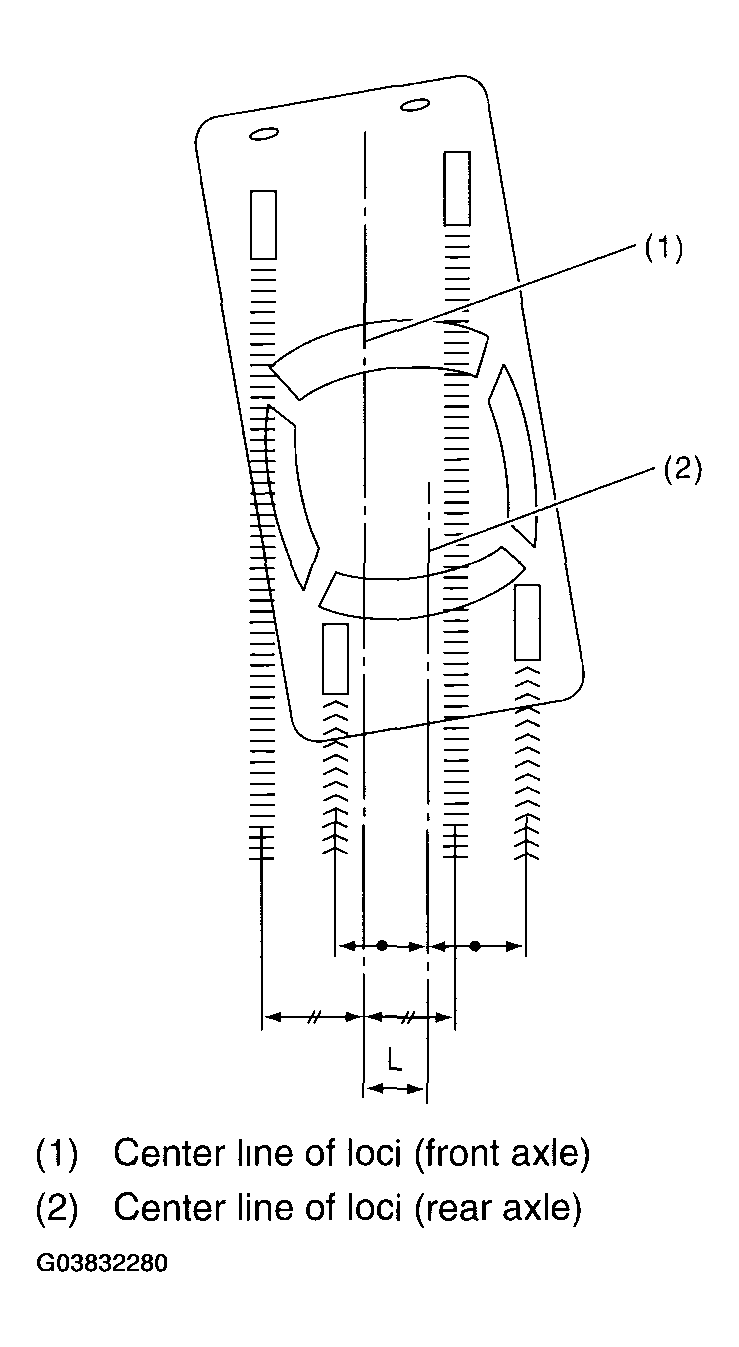

- Draw the center of loci of both the front and rear axles.
- Measure the distance "L" between center lines of the loci of axles.
Thrust angle:
0°+/-30' Less than 30' when "L" is less than 23 mm (0.9 in).
