Water Pump

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Gasoline engine model

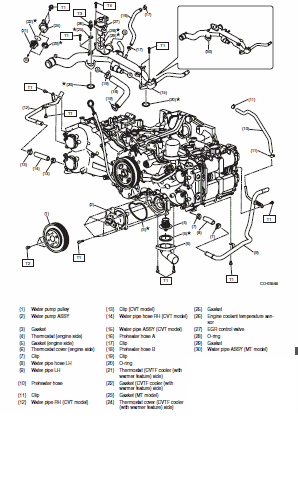

Fig 1: Identifying Water Pump Components (Gasoline Engine Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14 (1.4, 10.3)

T3: 18 (1.8, 13.3)

T4: 22 (2.2, 16.2)
HEV model

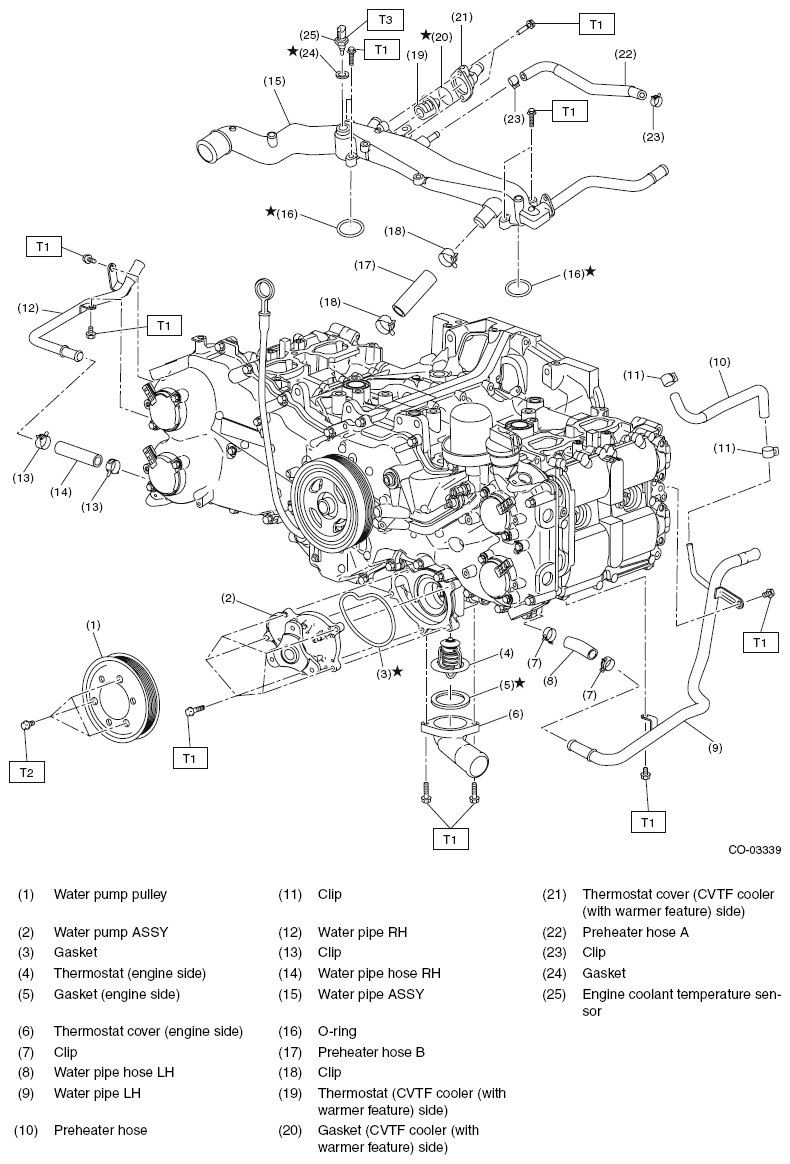

Fig 2: Identifying Water Pump Components (HEV Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14 (1.4, 10.3)

T3: 18 (1.8, 13.3)
