Chain Cover

2.0 L model

Fig 1: Chain Cover Components Location (2.0 L Model)

G16760957

Courtesy of SUBARU OF AMERICA, INC.

(1)	Oil level gauge
(2)	O-ring
(3)	Oil level gauge guide
(4)	O-ring
(5)	Front oil seal
(6)	Oil filler cap
(7)	Gasket
(8)	CHAIN COVER
(9)	O-ring
(10)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2 Ref. to MECHANICAL (H4DO)>CHAIN COVER>INSTALLATION .

2.5 L model

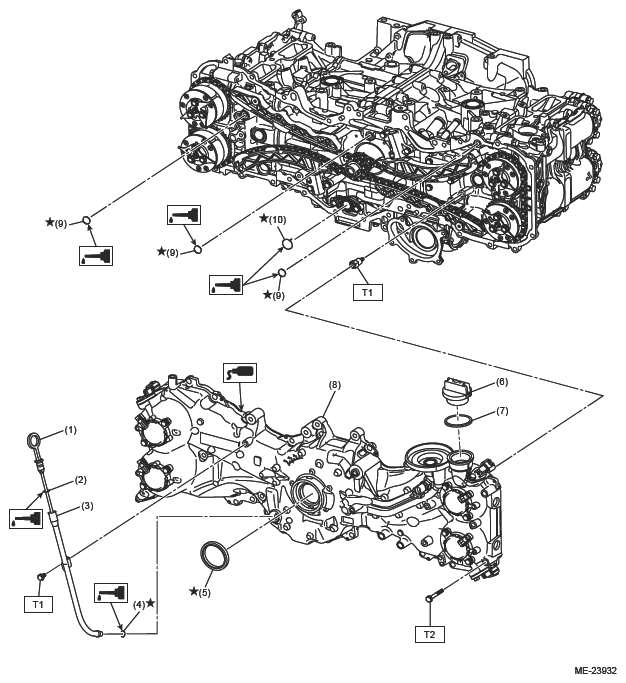

Fig 2: Chain Cover Components Location (2.5 L Model)

G16760958

Courtesy of SUBARU OF AMERICA, INC.

(1)	Oil level gauge
(2)	O-ring
(3)	Oil level gauge guide
(4)	O-ring
(5)	Front oil seal
(6)	Oil filler cap
(7)	Gasket
(8)	CHAIN COVER
(9)	O-ring
(10)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2 Ref. to MECHANICAL (H4DO)>CHAIN COVER>INSTALLATION .
