Tie-Down Range

For ground transportation

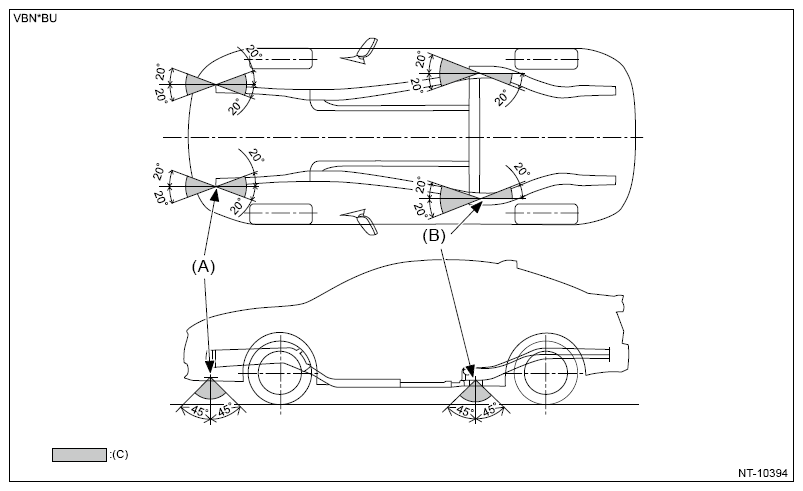

Tie-down at 4 locations

CAUTION: When the vehicle is tied down toward the vehicle inside, hook the hooks on the rear tie-down holes from vehicle inside. When the vehicle is tied down toward the vehicle outside, hook the hooks from vehicle outside.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Front tie-down hook
(B)	Rear tie-down hole
(C)	Chain pulling range at tie-down condition

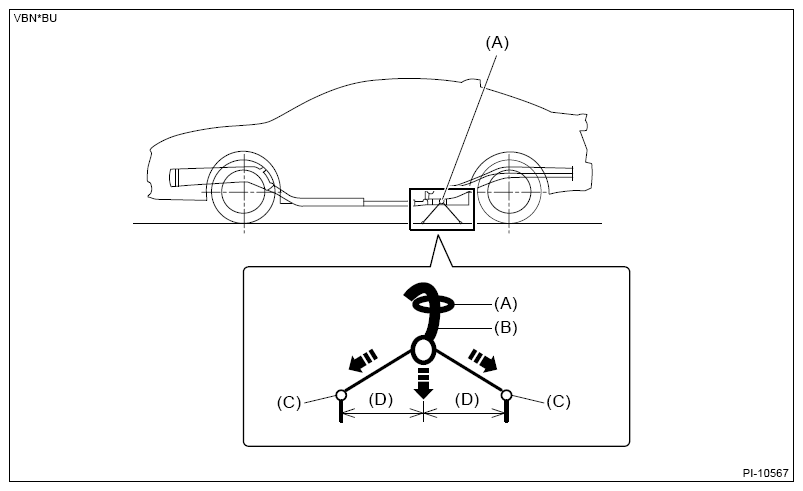

Tie-down at 2 locations

CAUTION: Pull the tie-down hook rope evenly to the front and rear side. Do not hook the hooks outside the wheelbase to avoid up/down pitching.

NOTE: The length (D) should be the same.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Rear tie-down hole
(B)	Tie-down hook
(C)	Hook
(D)	Rope length

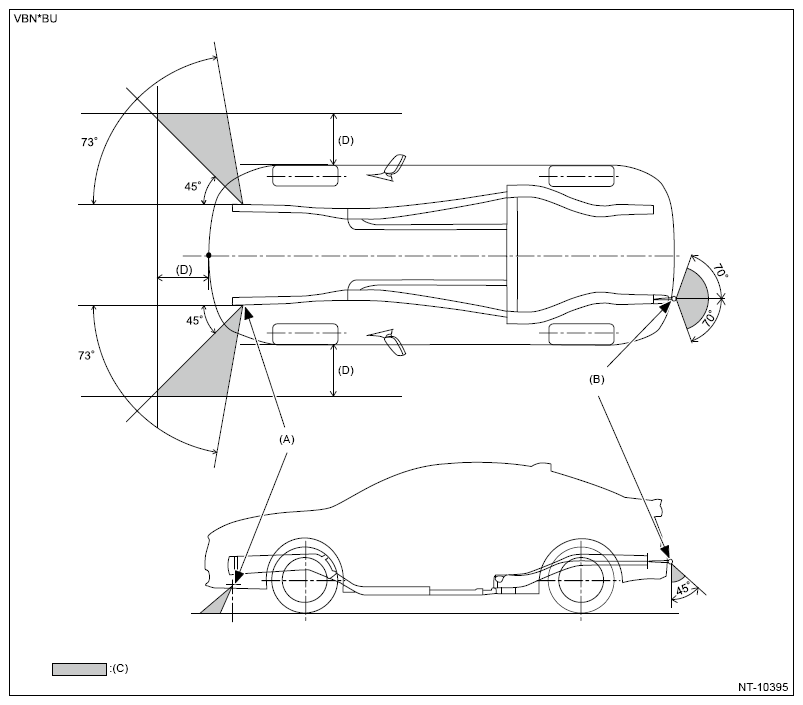

For sea transportation

CAUTION:

For front tie-down hook, use a hook for sea transportation.

Hook on the front tie-down hook from vehicle outside, and tie down toward vehicle outside.

Also, hook on the front tie-down hook and the towing hook (eyebolt) from top to bottom.

The towing hooks (eyebolts) are exclusively used for towing and sea transportation tie-down, and do not use them for ground and freight transportation.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Front tie-down hook
(B)	Towing hook (eyebolt)
(C)	Chain pulling range at tie-down condition
(D)	300 mm (11.8 in)
