Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

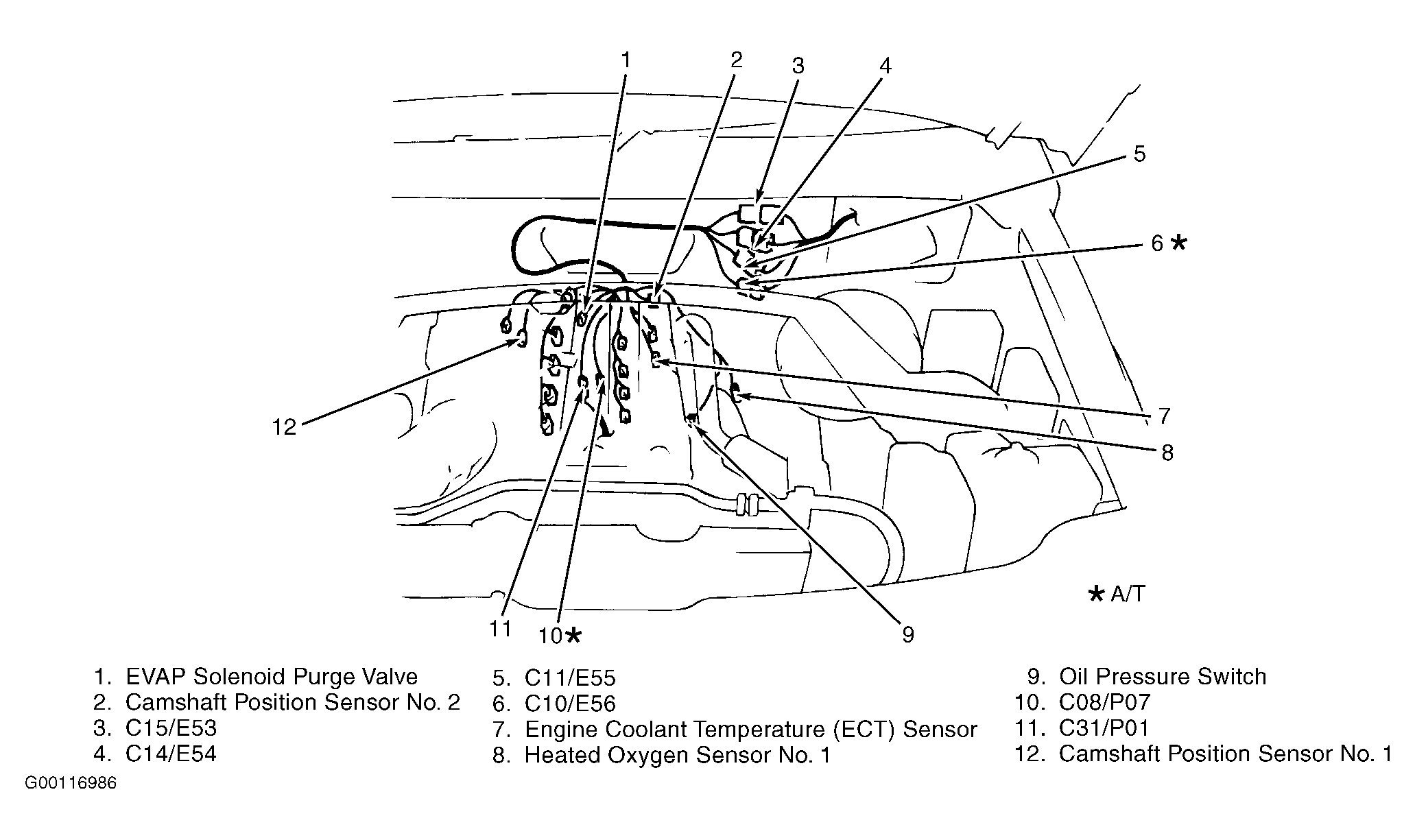

Fig 1: Engine Compartment

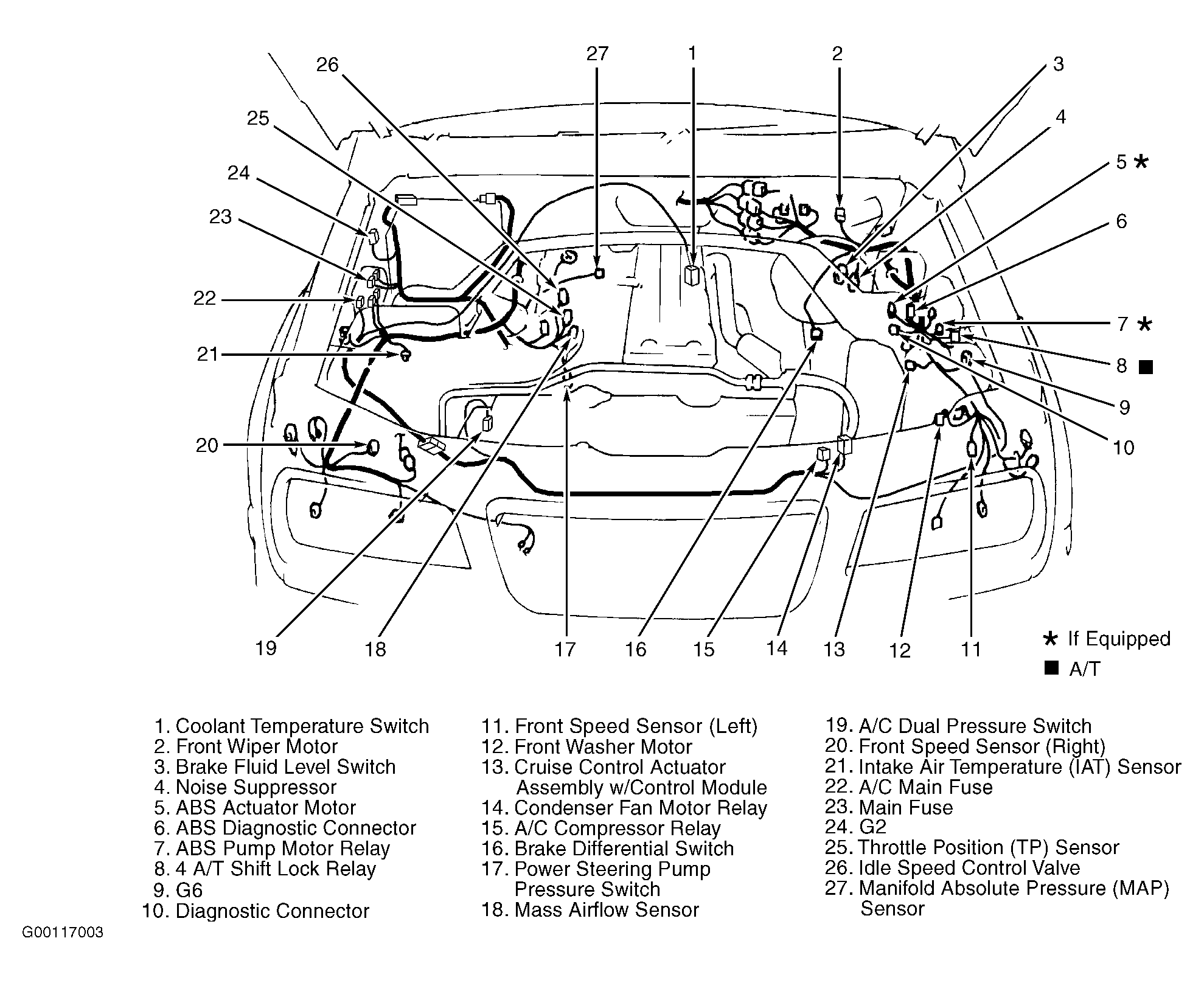

Fig 2: Engine Compartment

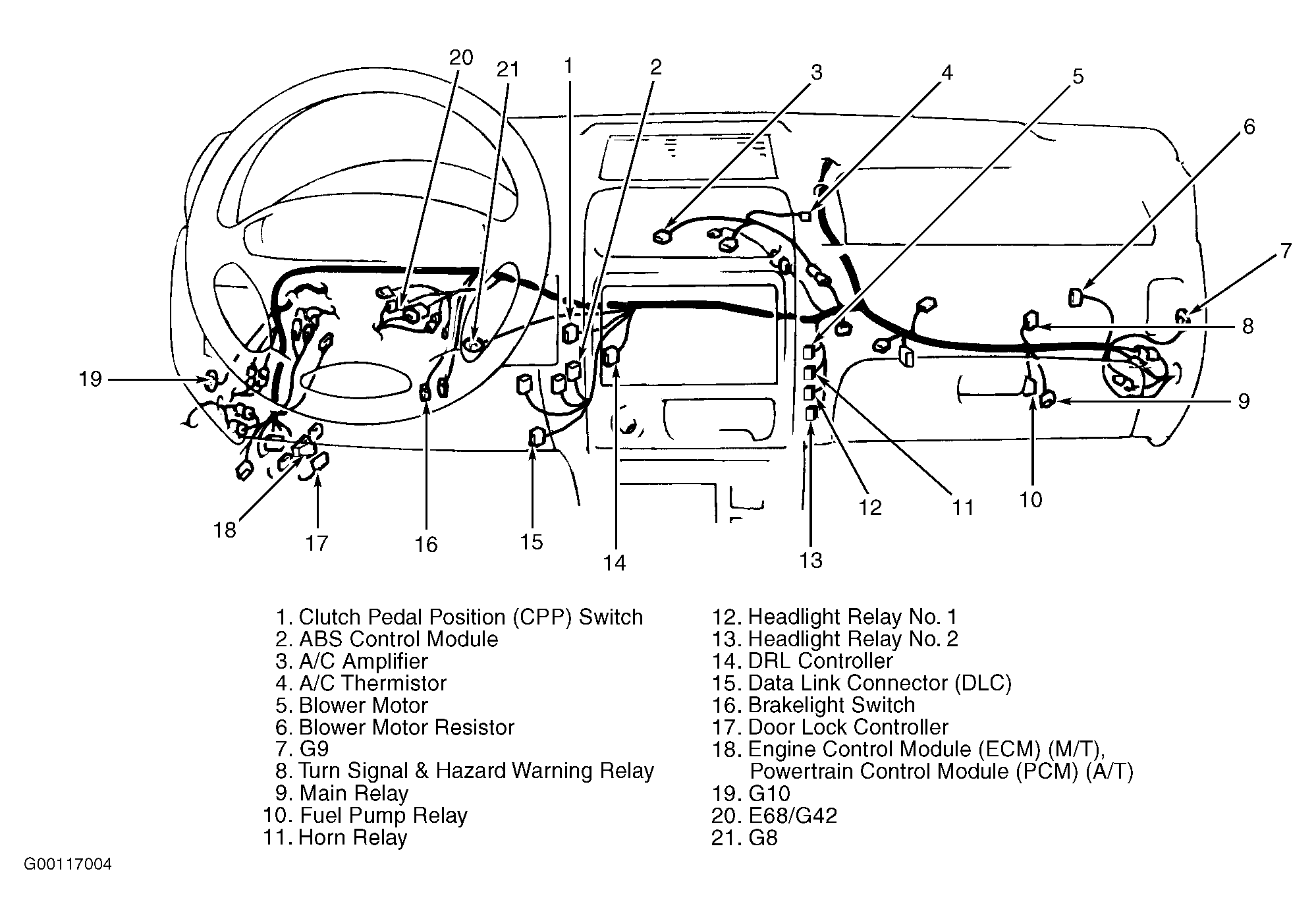

Fig 3: Dash

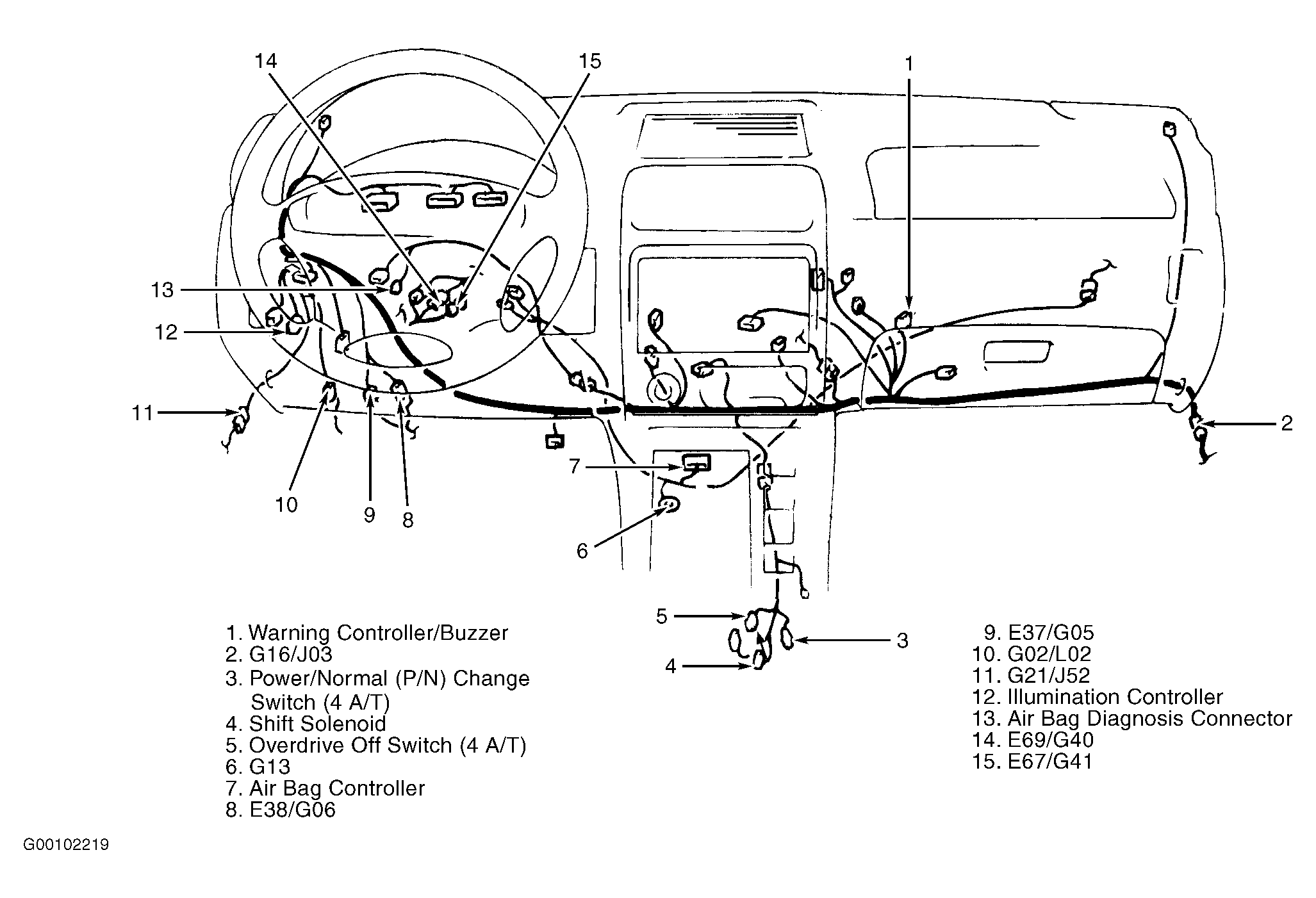

Fig 4: Dash
