DTC 31 - Map Sensor Signal (2.2L)

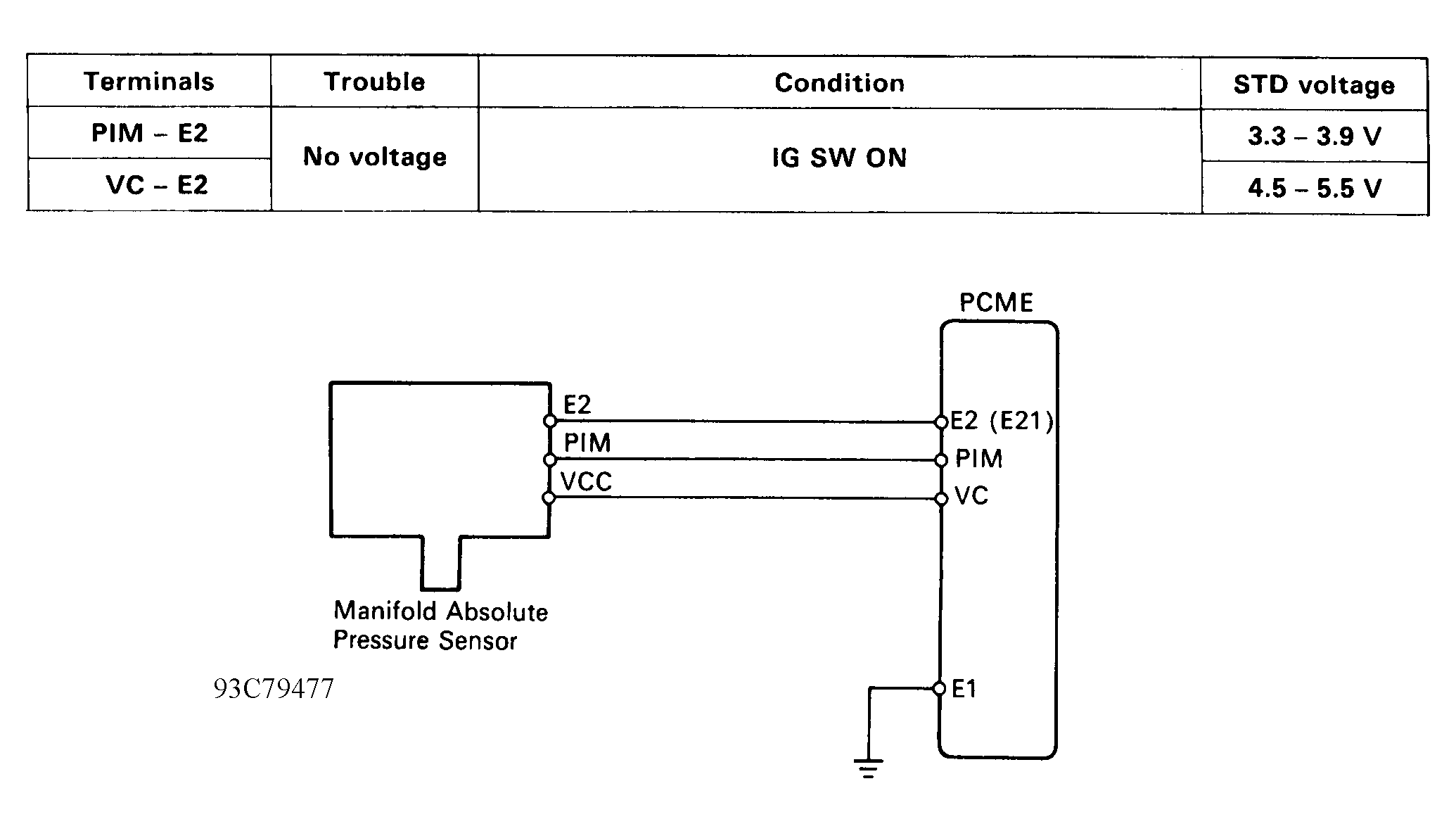

Fig 1: DTC 31 - Schematic
G93C79477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

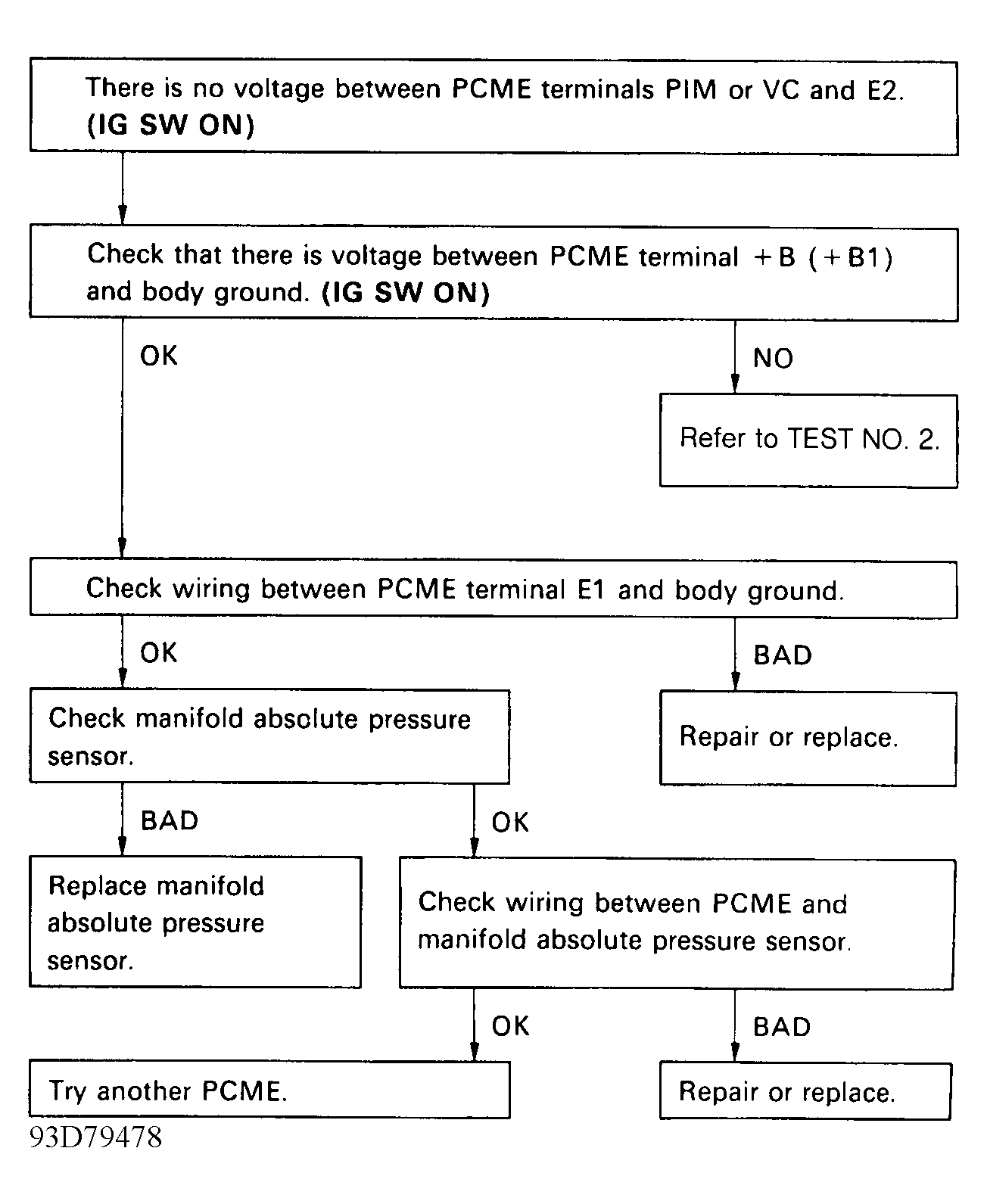

Fig 2: DTC 31 - Diagnostic Flowchart
G93D79478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
