Prius Base
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System (1NZ-FXE)
›
Smart Key System
›
Parts Location
Parts Location

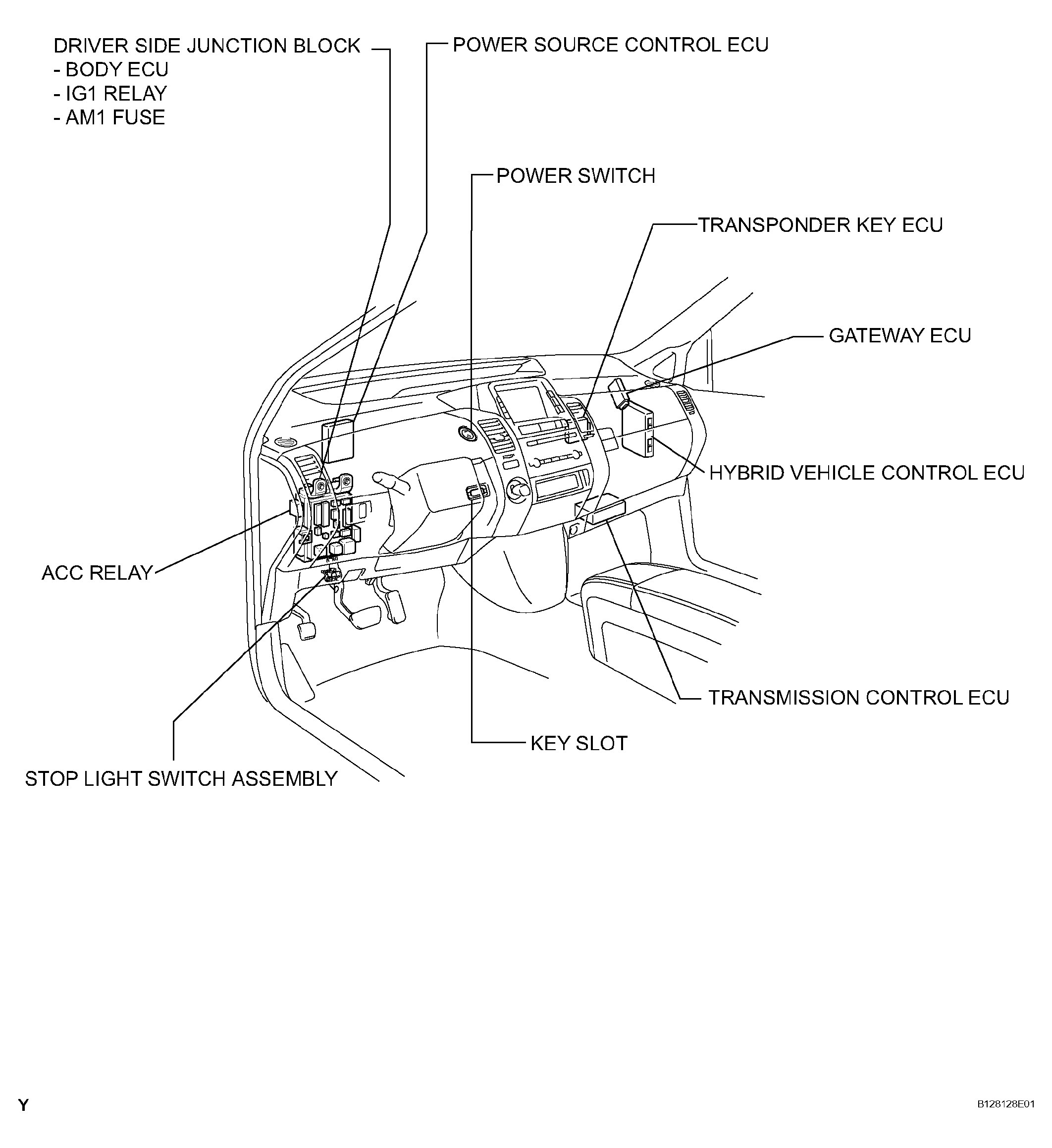

Fig 1: Locating Smart Key System Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

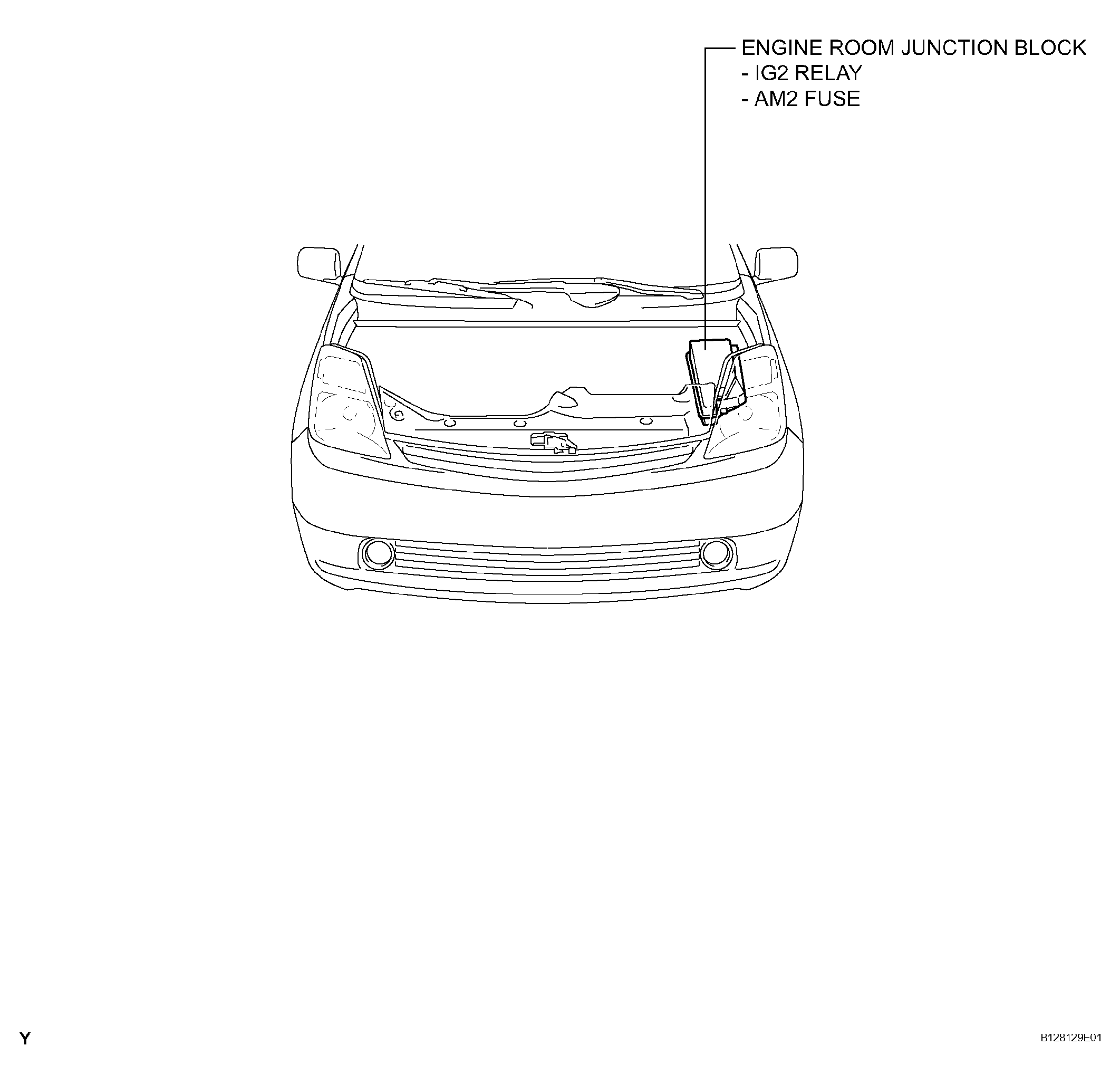

Fig 2: Locating Smart Key System Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
