A/T Shift Position Signal
A/T Shift Position Signal

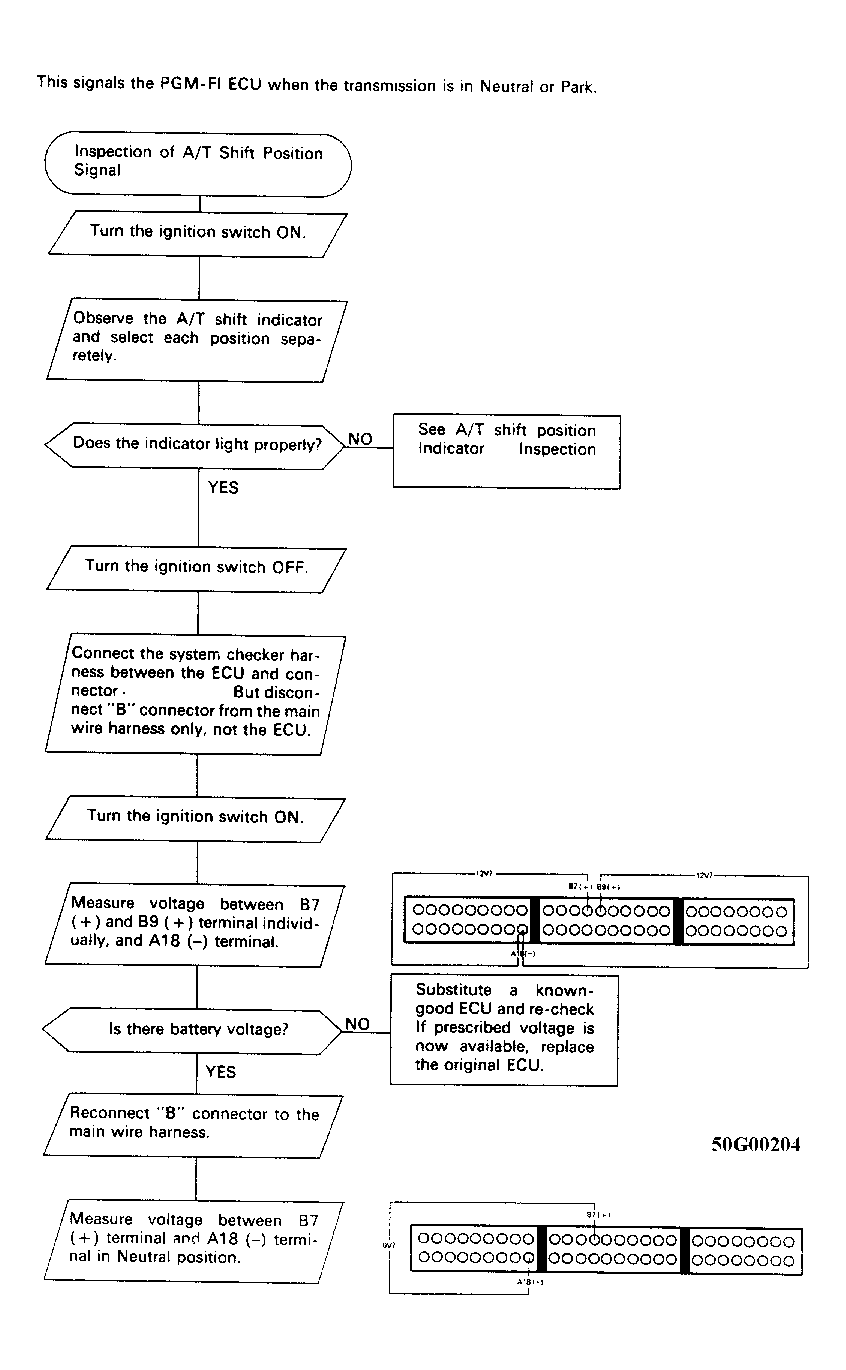

Fig 1: A/T Shift Position Signal, Flow Chart (1 of 2)
Fig 2: A/T Shift Position Signal, Flow Chart (2 of 2)
