Alternator Fr Signal

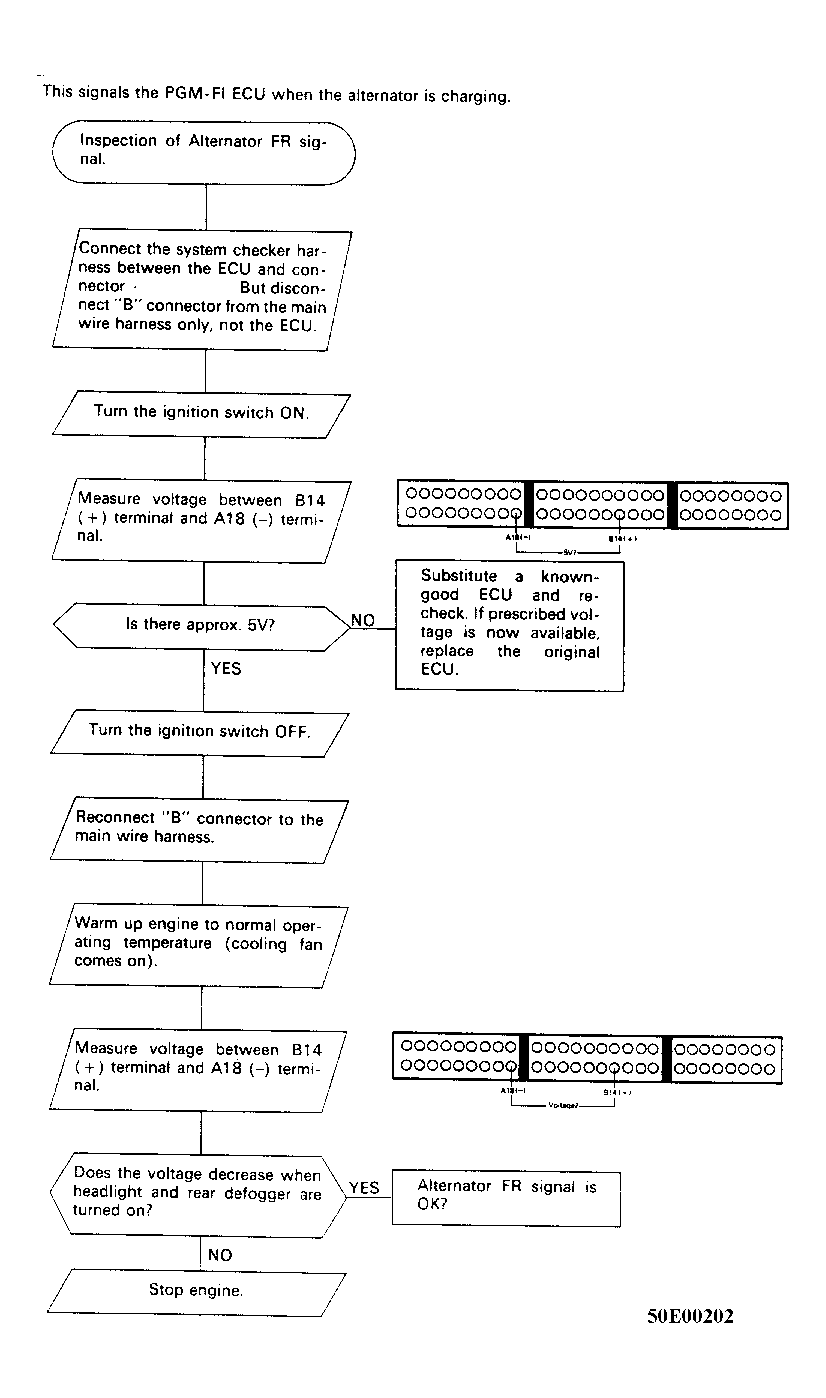

Fig 1: Alternator FR Signal, Flow Chart (1 of 2)

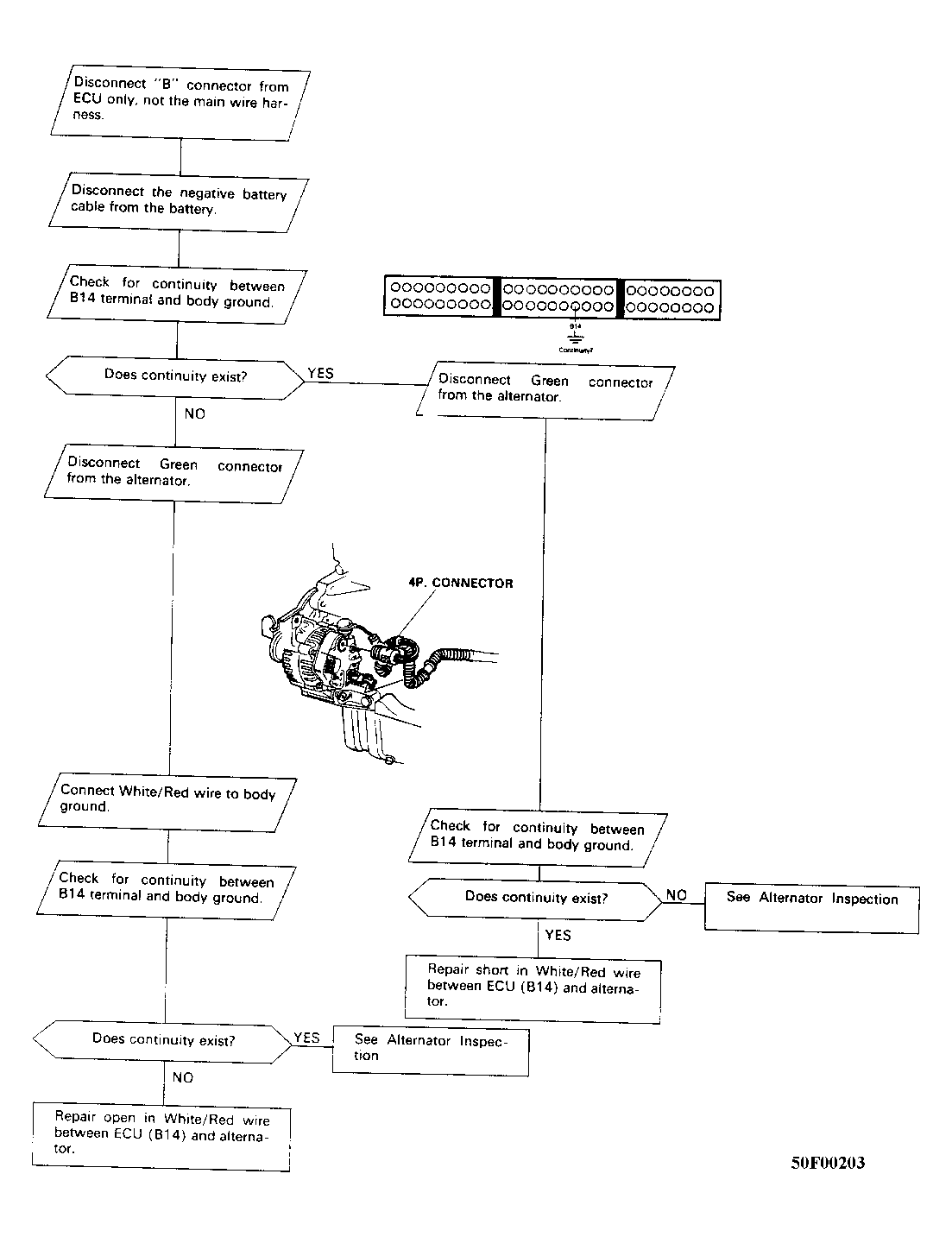

Fig 2: Alternator FR Signal, Flow Chart (2 of 2)
