Power Mirror Switch Test

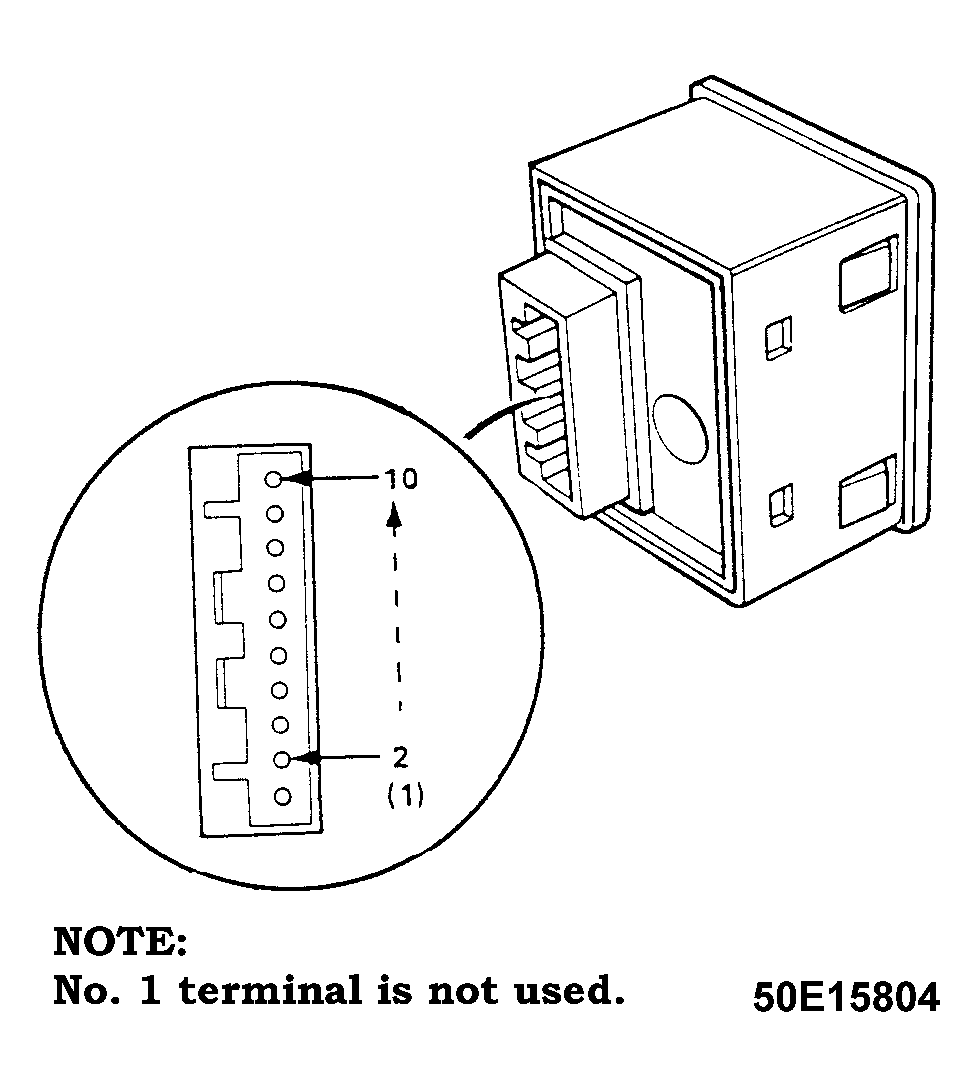

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in each position. See Fig 1 . See POWER MIRROR SWITCH CONTINUITY TEST table.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | Terminal Number | |
|---|---|---|
| Right Mirror | ||
| Off | 3-5-6-10; 2-8 | |
| Up | 5-9; 3-6-10; 2-8 | |
| Down | 5-10; 3-6-9; 2-8 | |
| Left | 3-10; 5-6-9; 2-8 | |
| Right | 3-9; 5-6-10; 2-8 | |
| Left Mirror | ||
| Off | 4-5-7-10; 2-8 | |
| Up | 5-9; 4-7-10; 2-8 | |
| Down | 5-10; 4-7-9; 2-8 | |
| Left | 4-10; 5-7-9; 2-8 | |
| Right | 4-9; 5-7-10; 2-8 | |
