Code 10: Intake Air Temperature Sensor

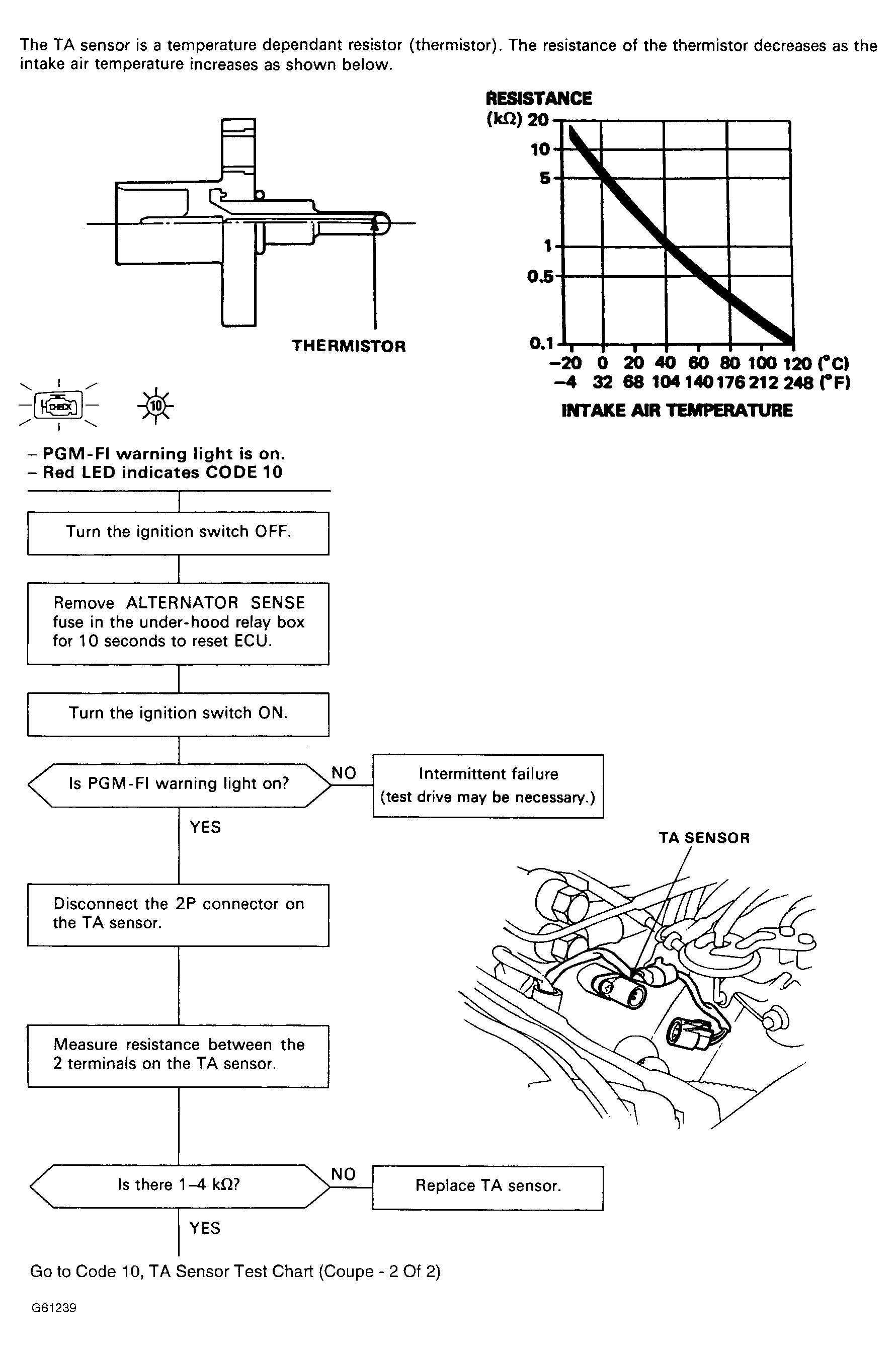

Fig 1: Code 10, TA Sensor Test Chart (Coupe - 1 Of 2)

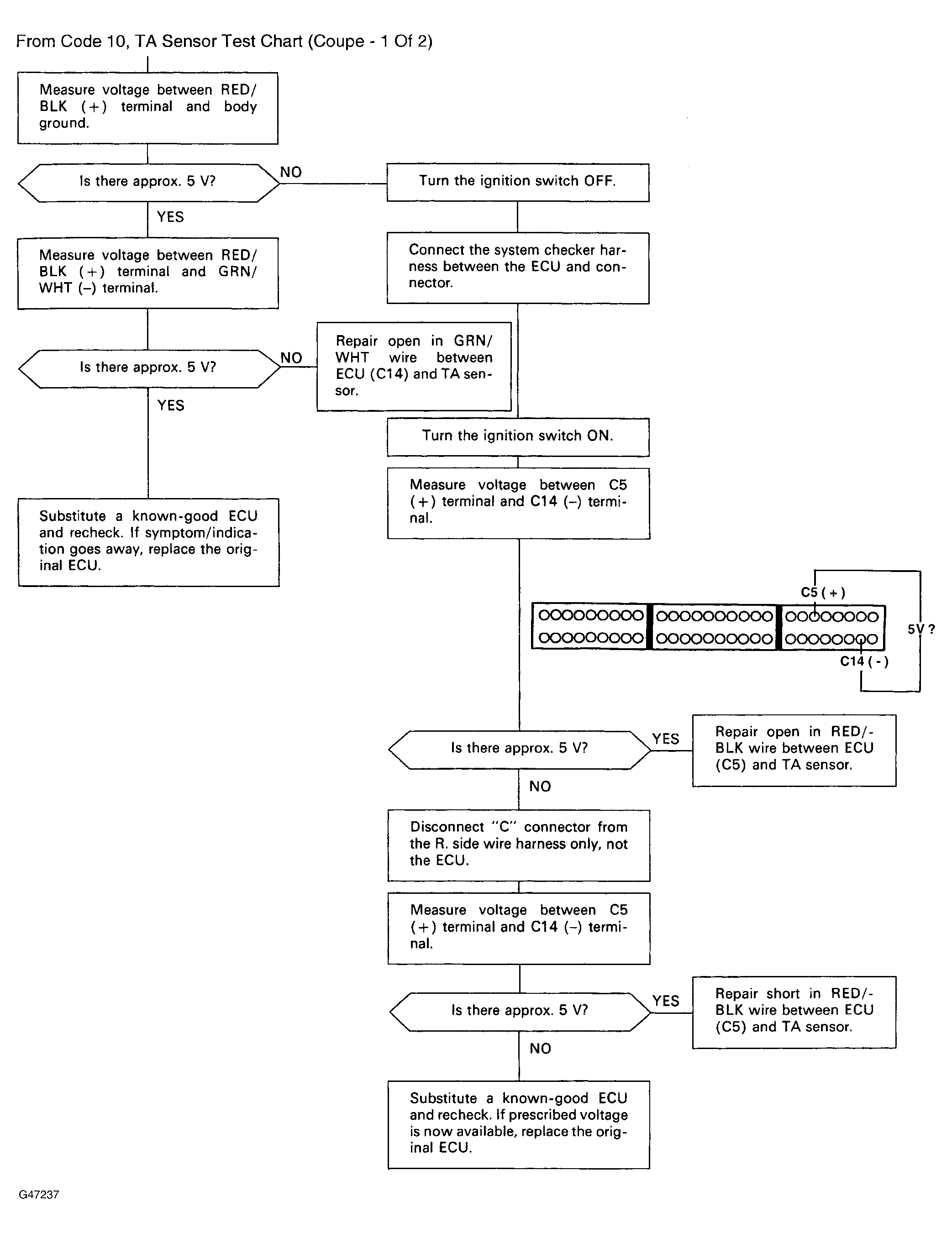

Fig 2: Code 10, TA Sensor Test Chart (Coupe - 2 Of 2)

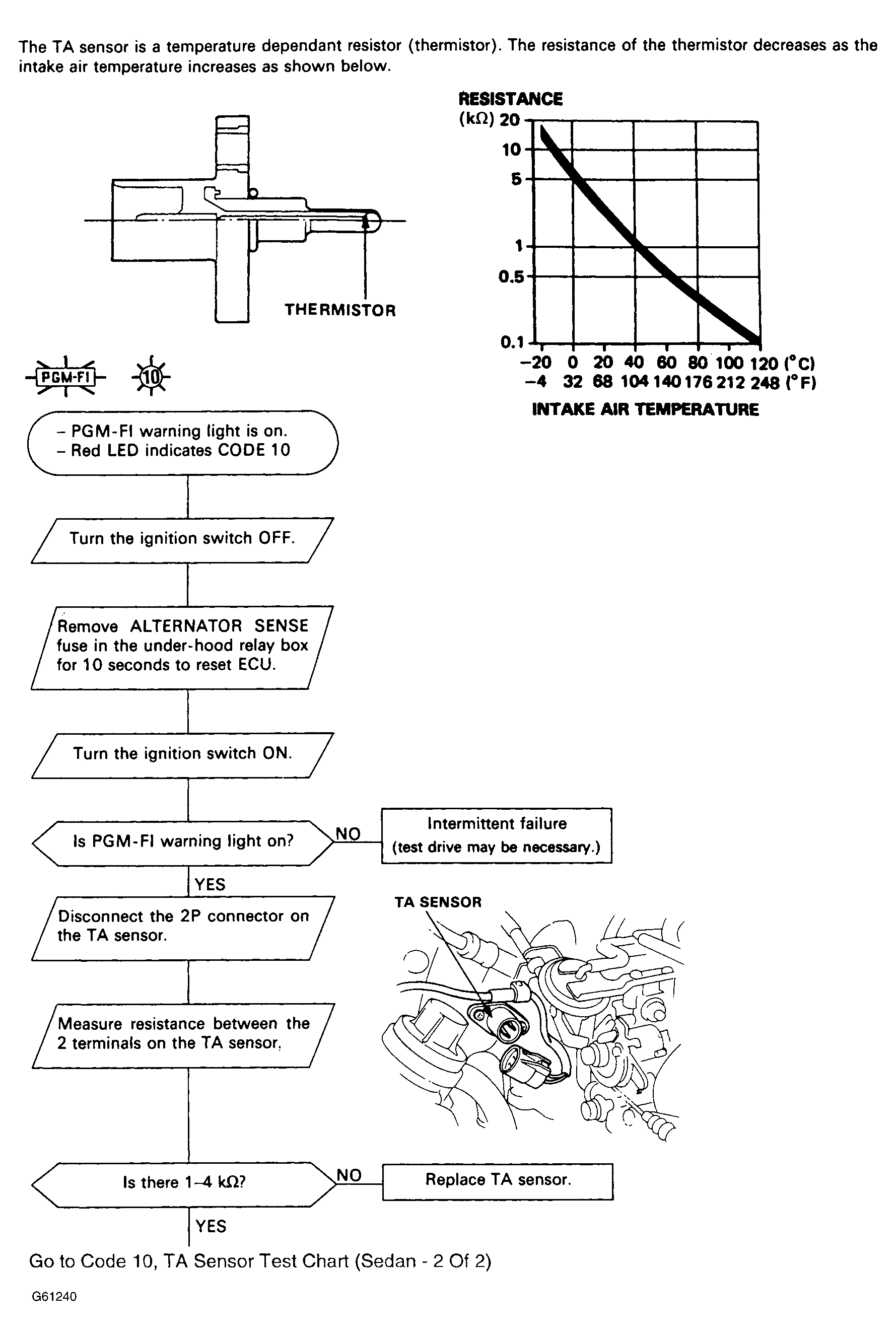

Fig 3: Code 10, TA Sensor Test Chart (Sedan - 1 Of 2)

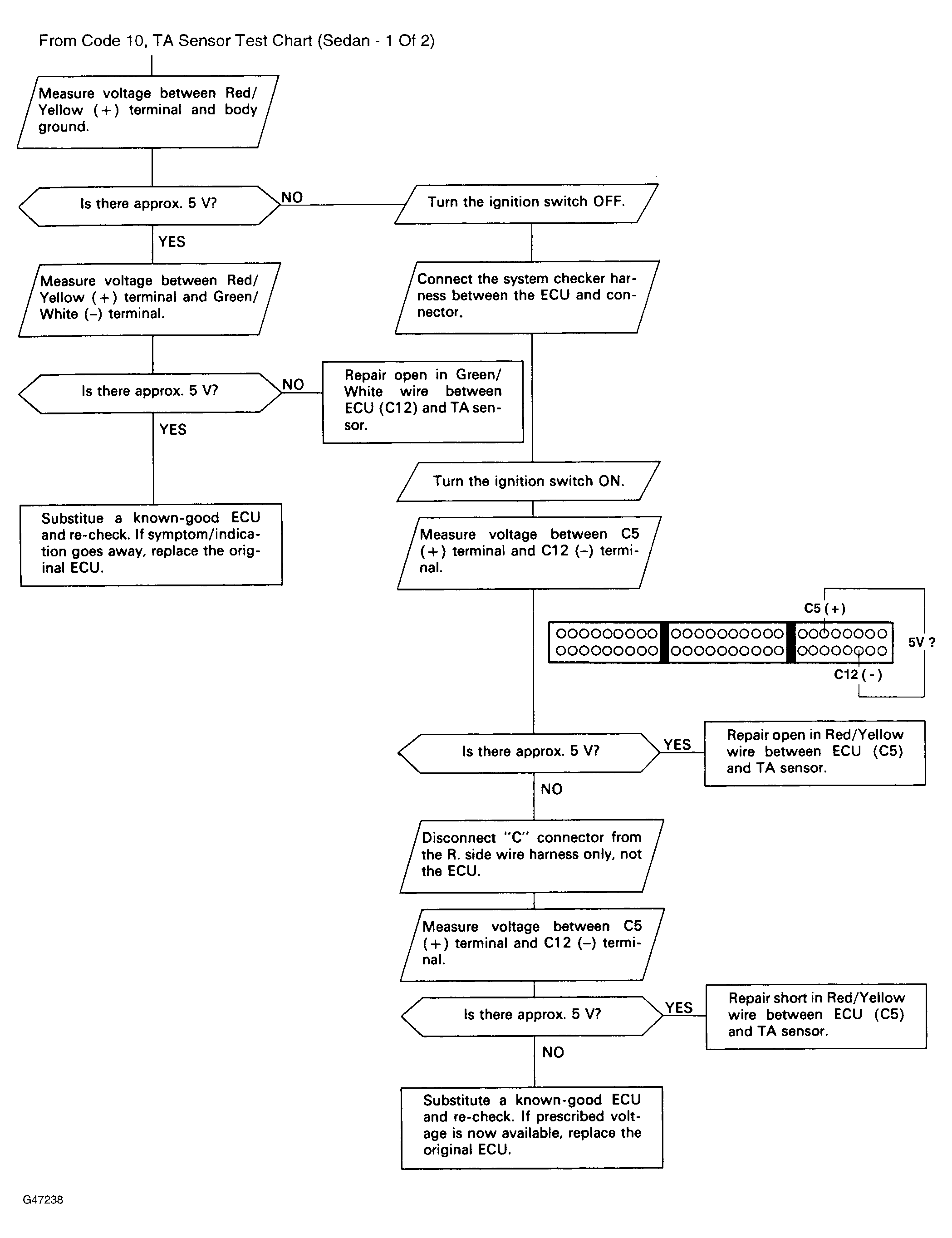

Fig 4: Code 10, TA Sensor Test Chart (Sedan - 2 Of 2)
