Code 15: Ignition Output Signal: Sedan

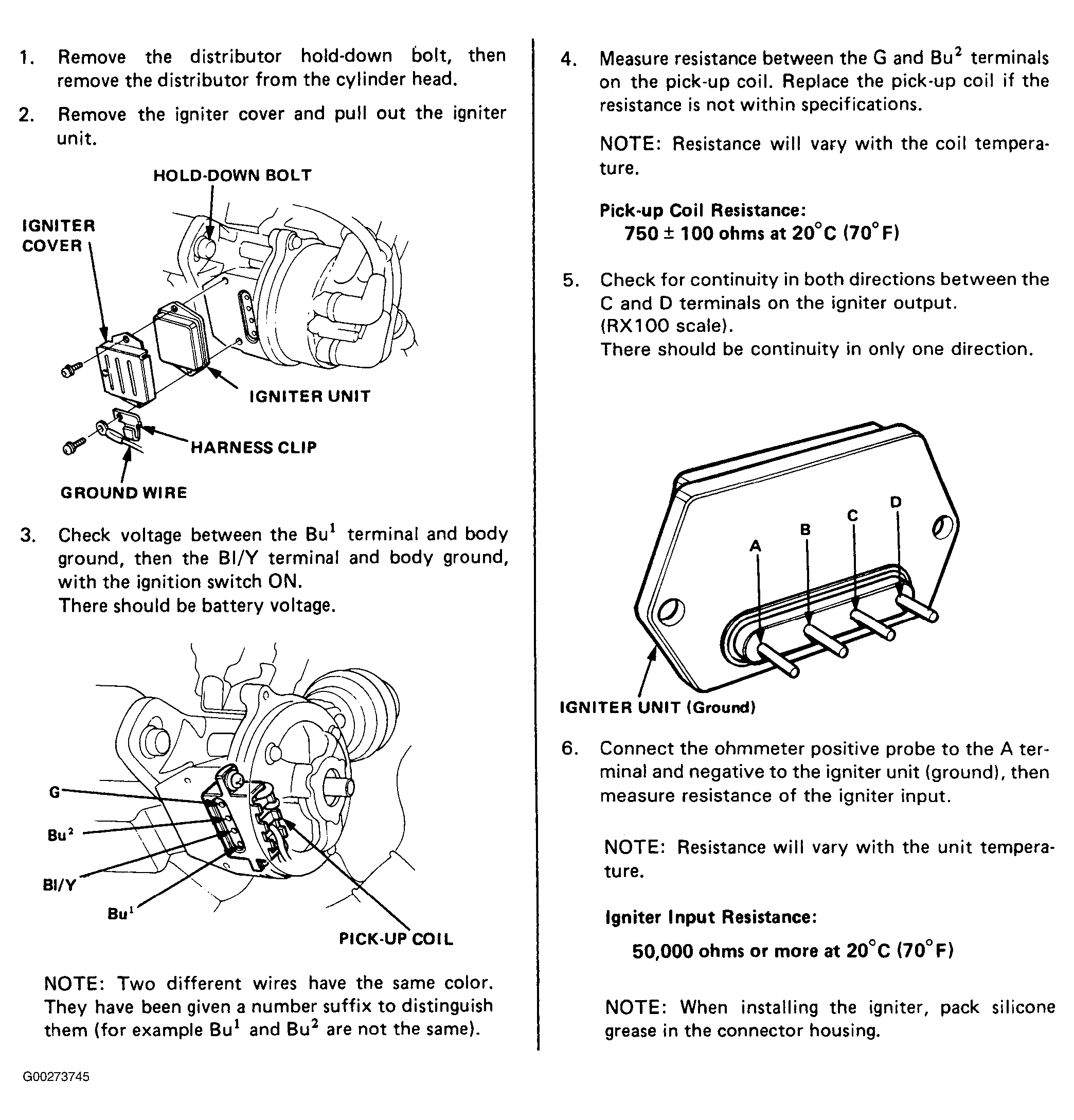

Fig 1: Igniter Unit Test (Sedan)
G00273745Courtesy of AMERICAN HONDA MOTOR CO., INC.
