Code 18: Ignition Timing Adjustment

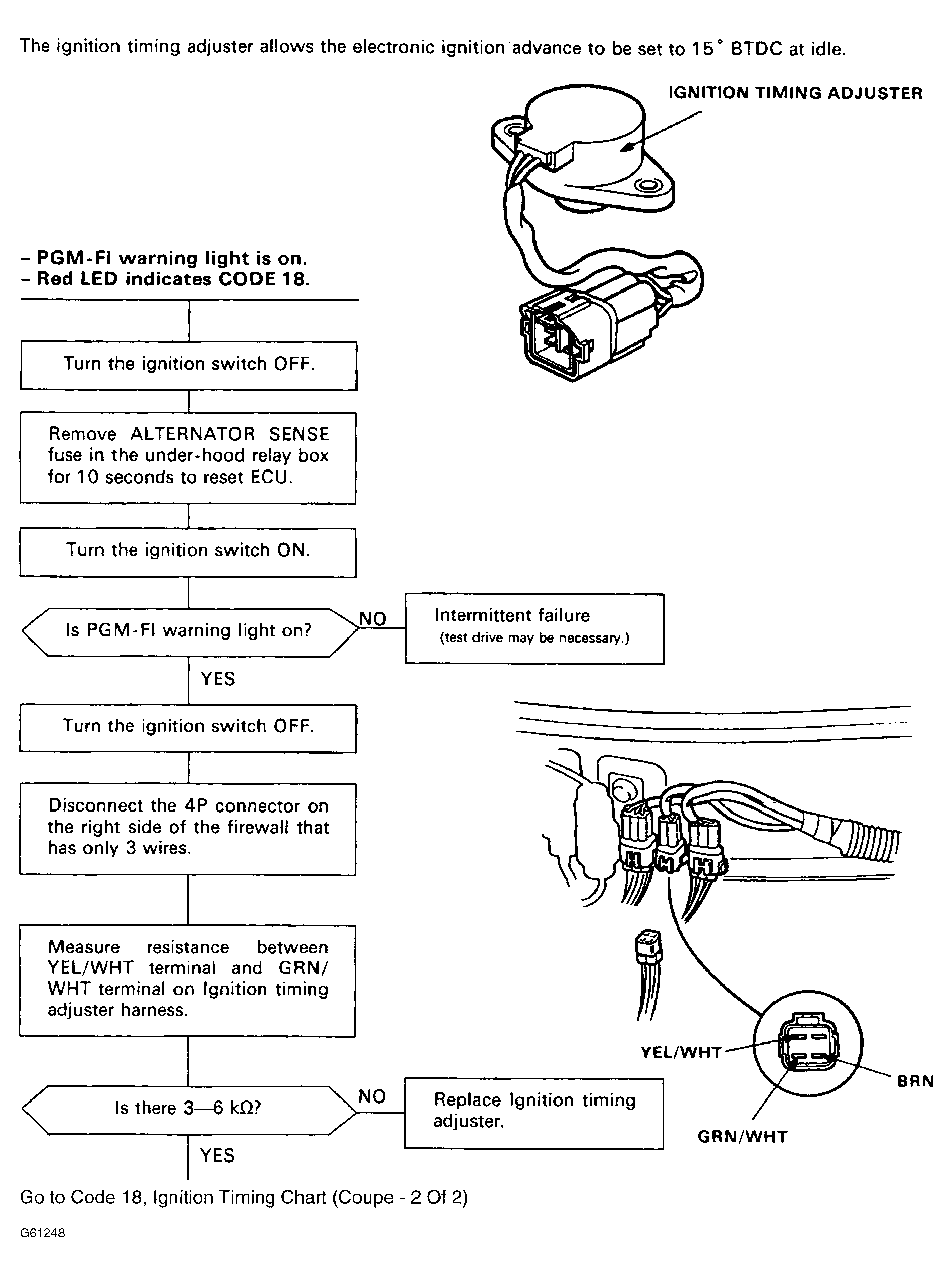

Fig 1: Code 18, Ignition Timing Chart (Coupe - 1 Of 2)

G61248

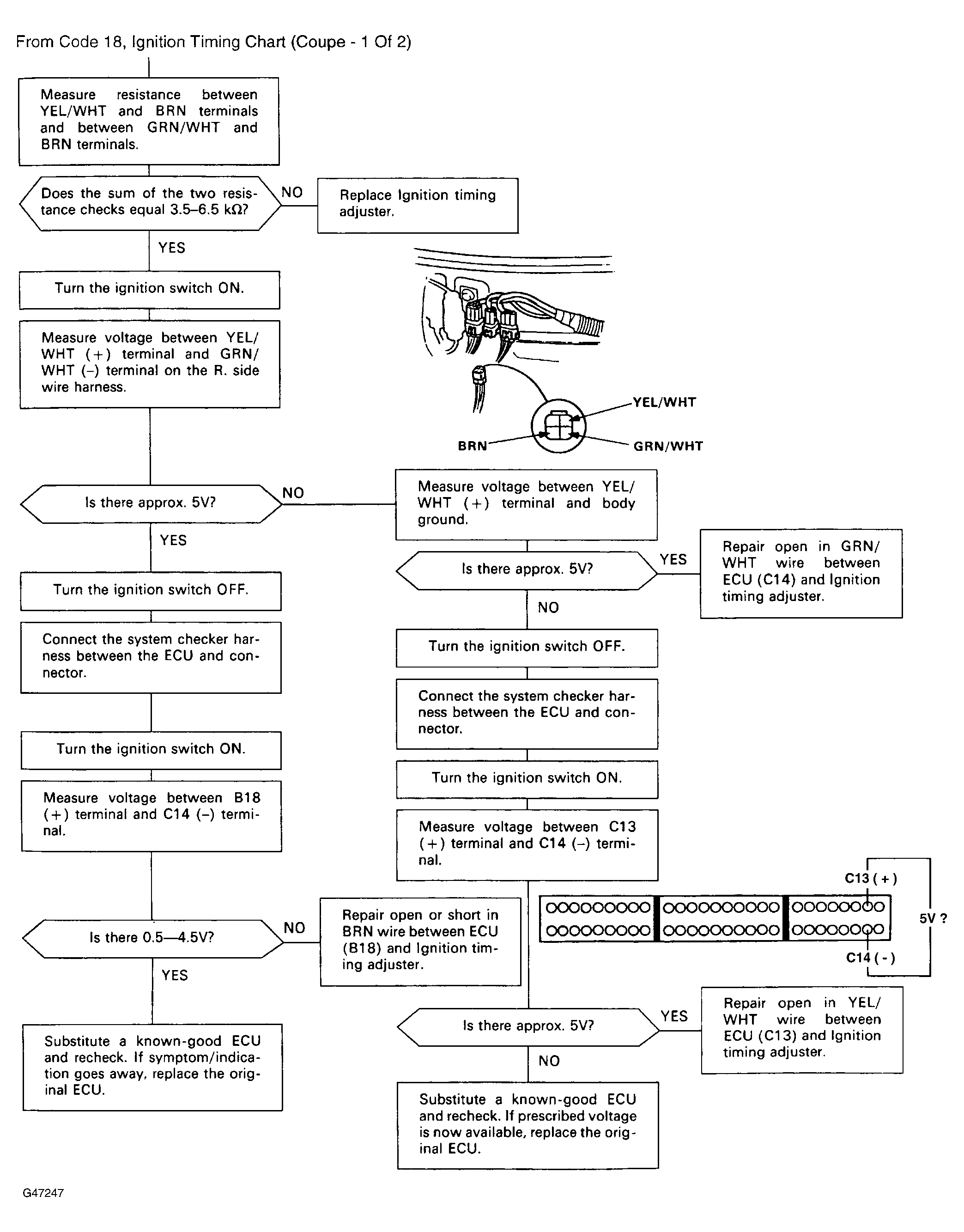

Fig 2: Code 18, Ignition Timing Chart (Coupe - 2 Of 2)

G47247
