Wiring Diagrams

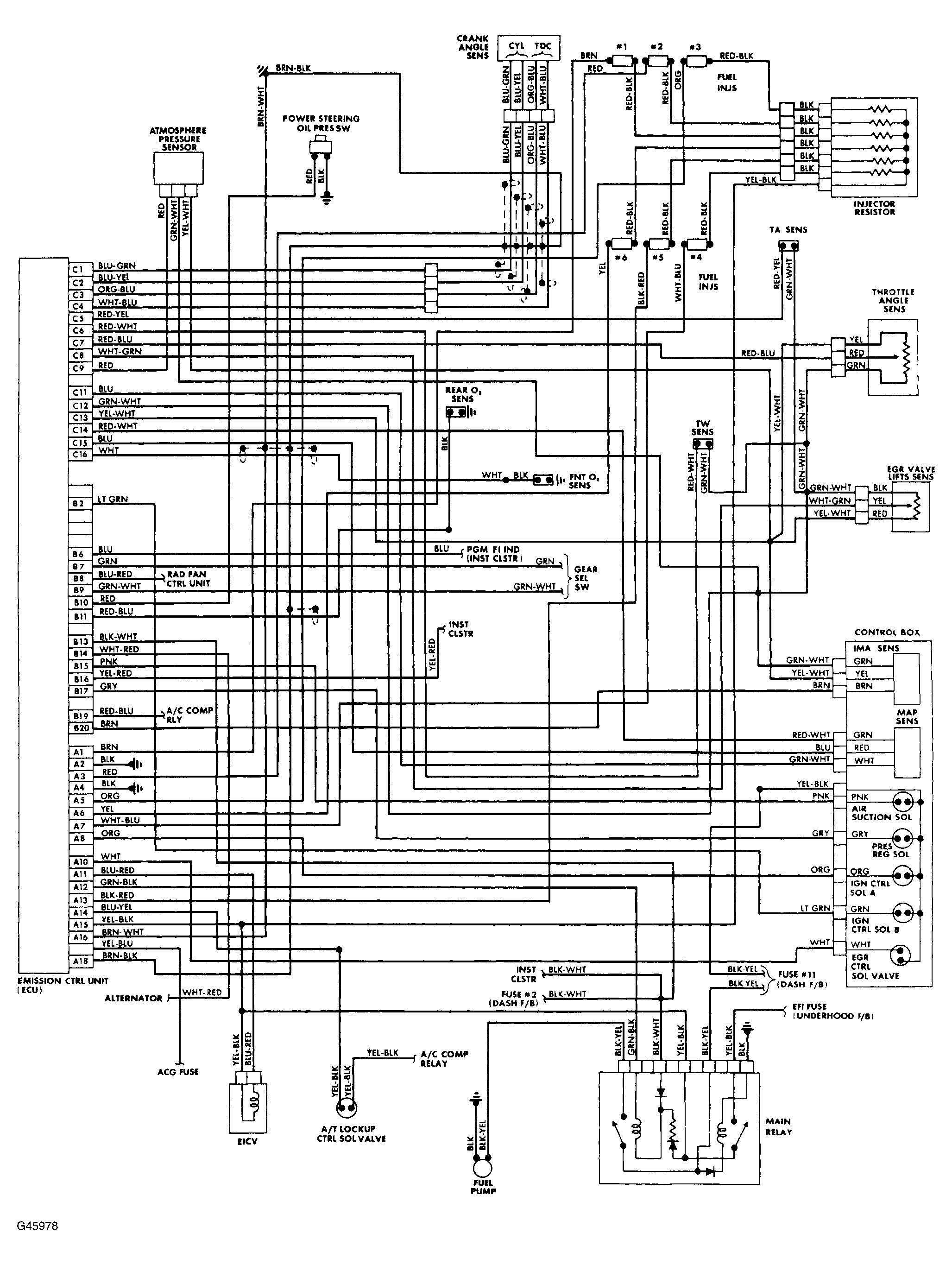

Fig 1: Engine Performance Wiring Diagram (Coupe)

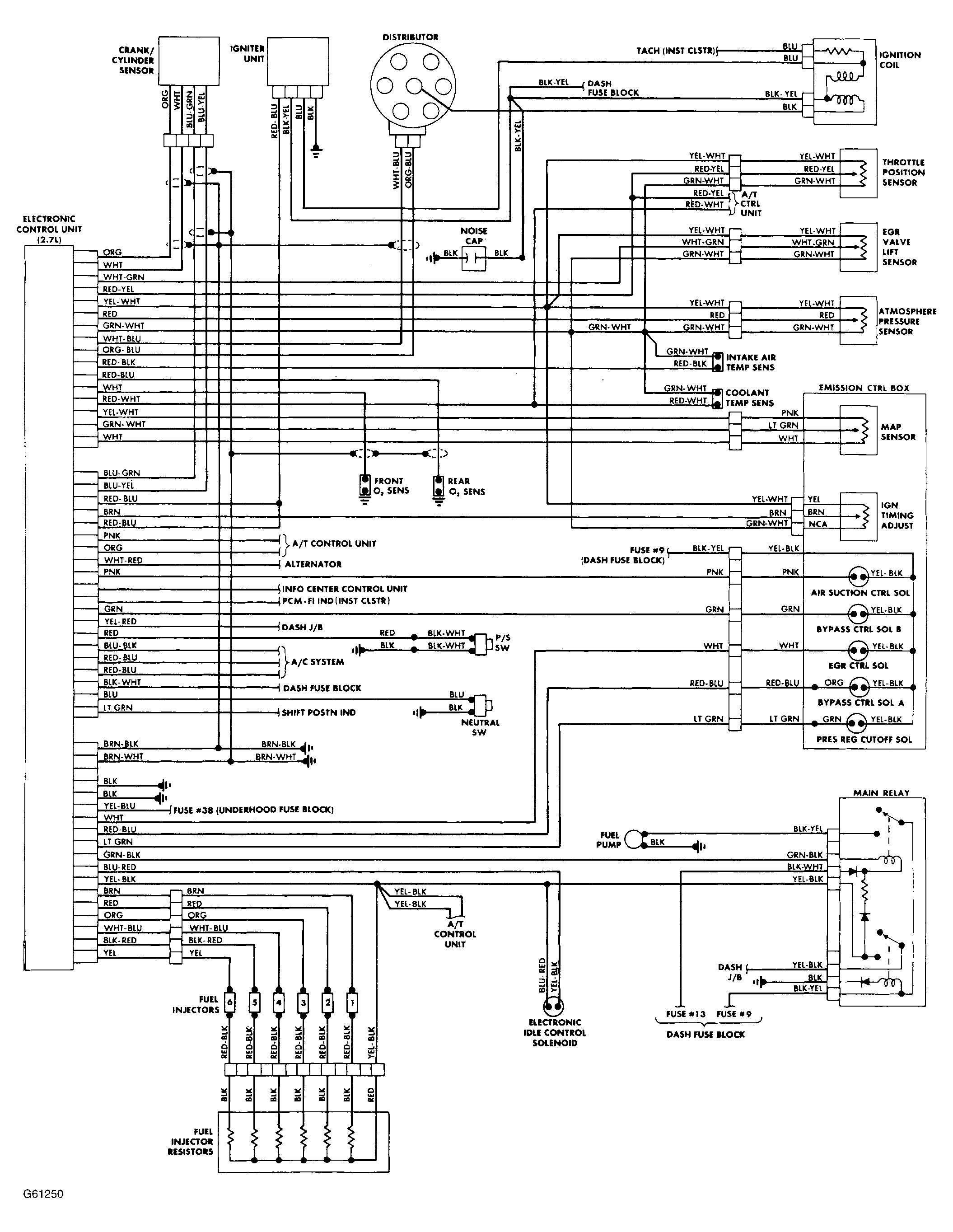

Fig 2: Engine Performance Wiring Diagram (Sedan)
