Control Unit Test

Turn ignition off. Remove driver's door panel. Unplug 4-P and 6-P connectors from control unit. Perform control unit test in Fig 1 . To test unit, keep driver's door switch connector connected with door wire harness.

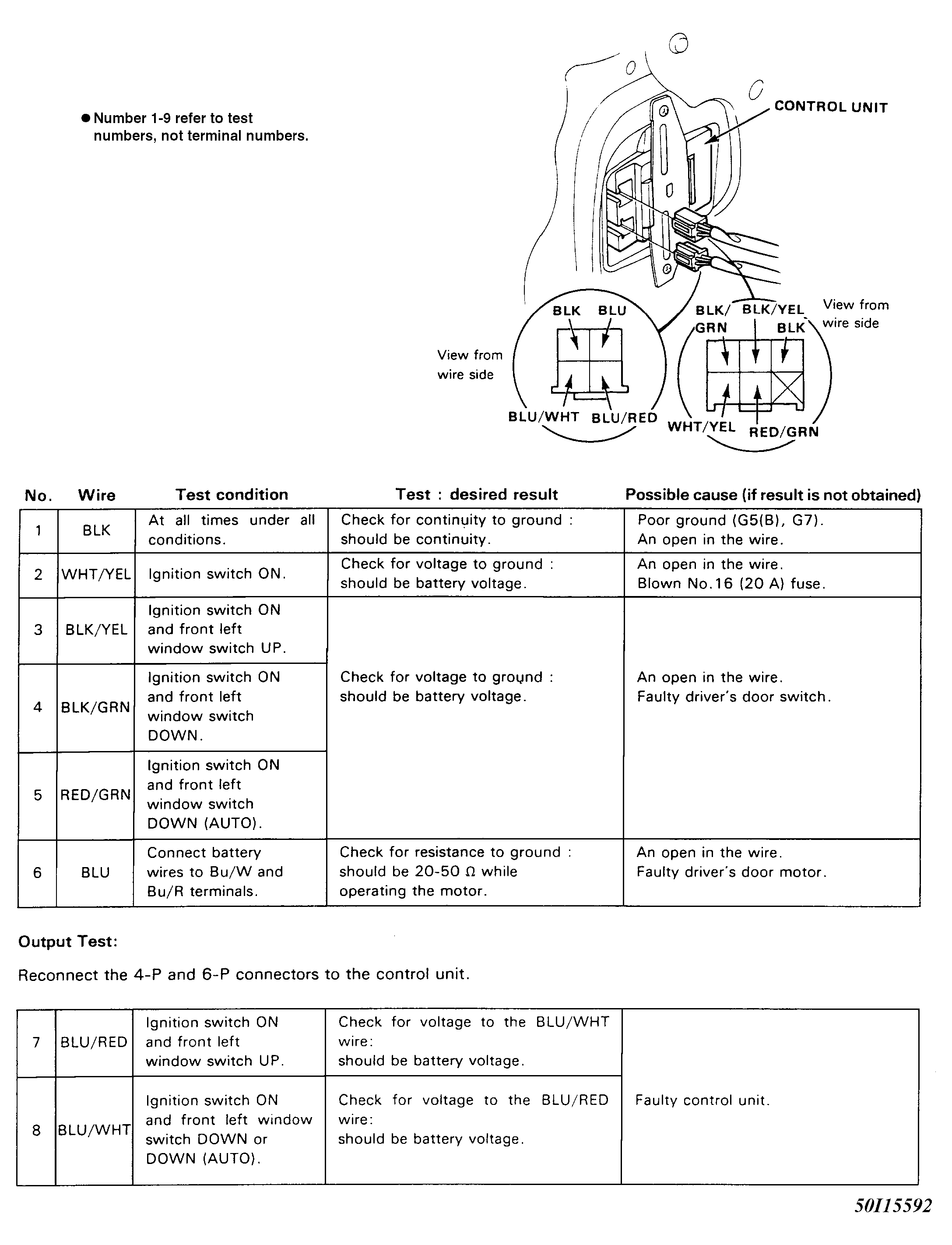

Fig 1: Control Unit Test & Terminal Id

Courtesy of AMERICAN HONDA MOTOR CO., INC.
