Code 6 - Coolant Temperature Sensor

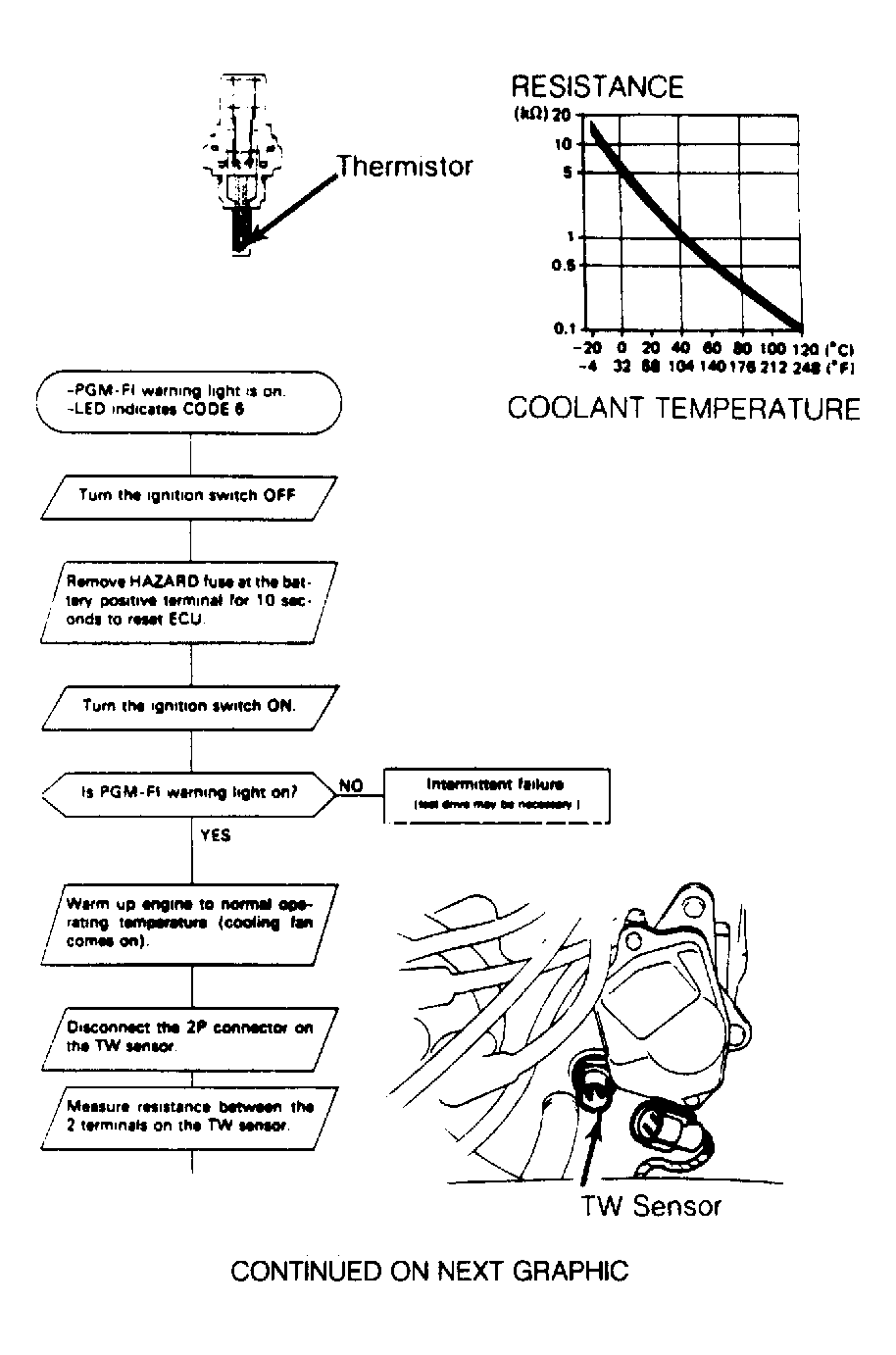

Fig 1: Code 6, TW Sensor Test Chart, Integra (1 of 2)

G61232

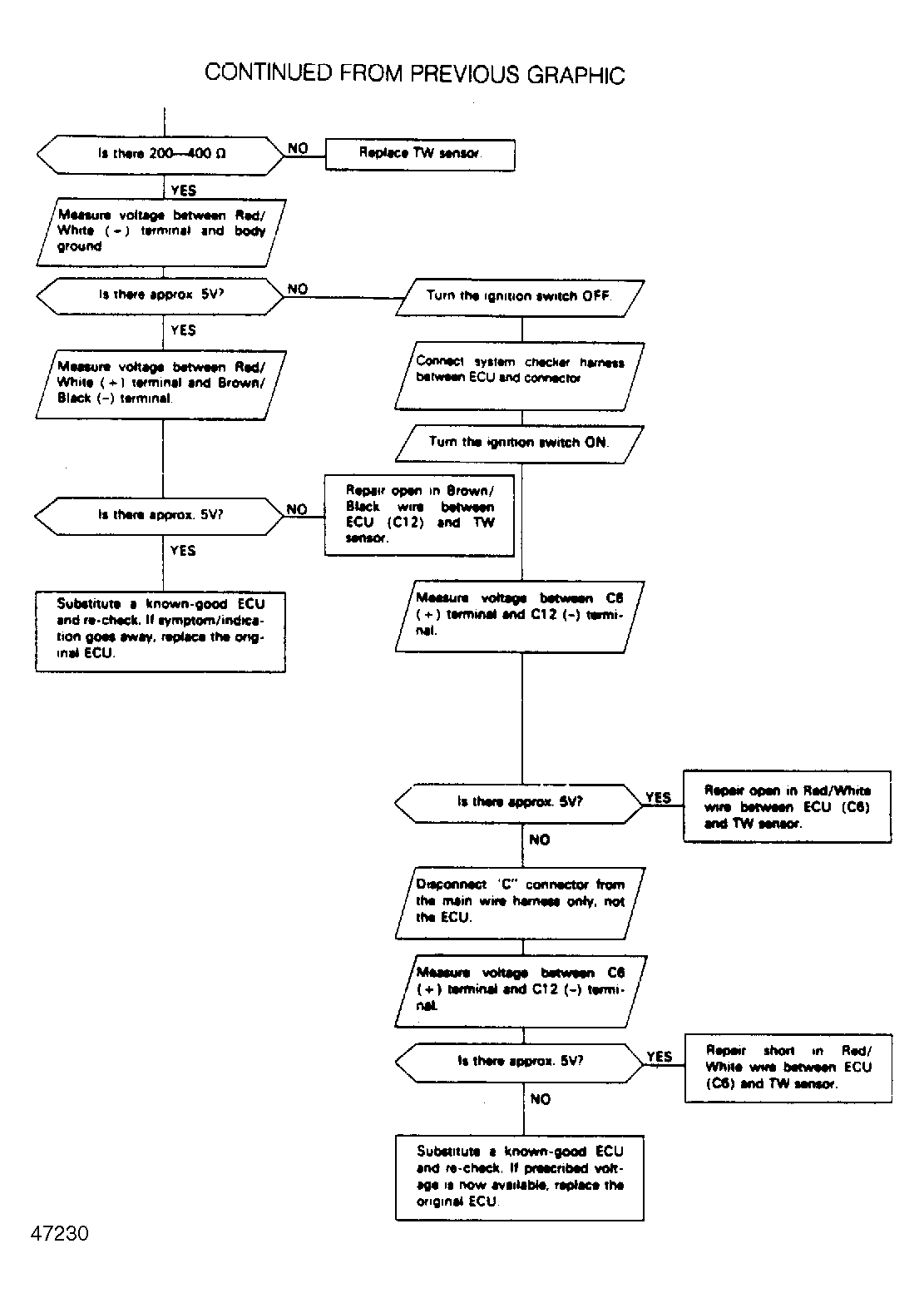

Fig 2: Code 6, TW Sensor Test Chart, Integra (2 of 2)

G47230
