Code 7 - Throttle Angle Sensor

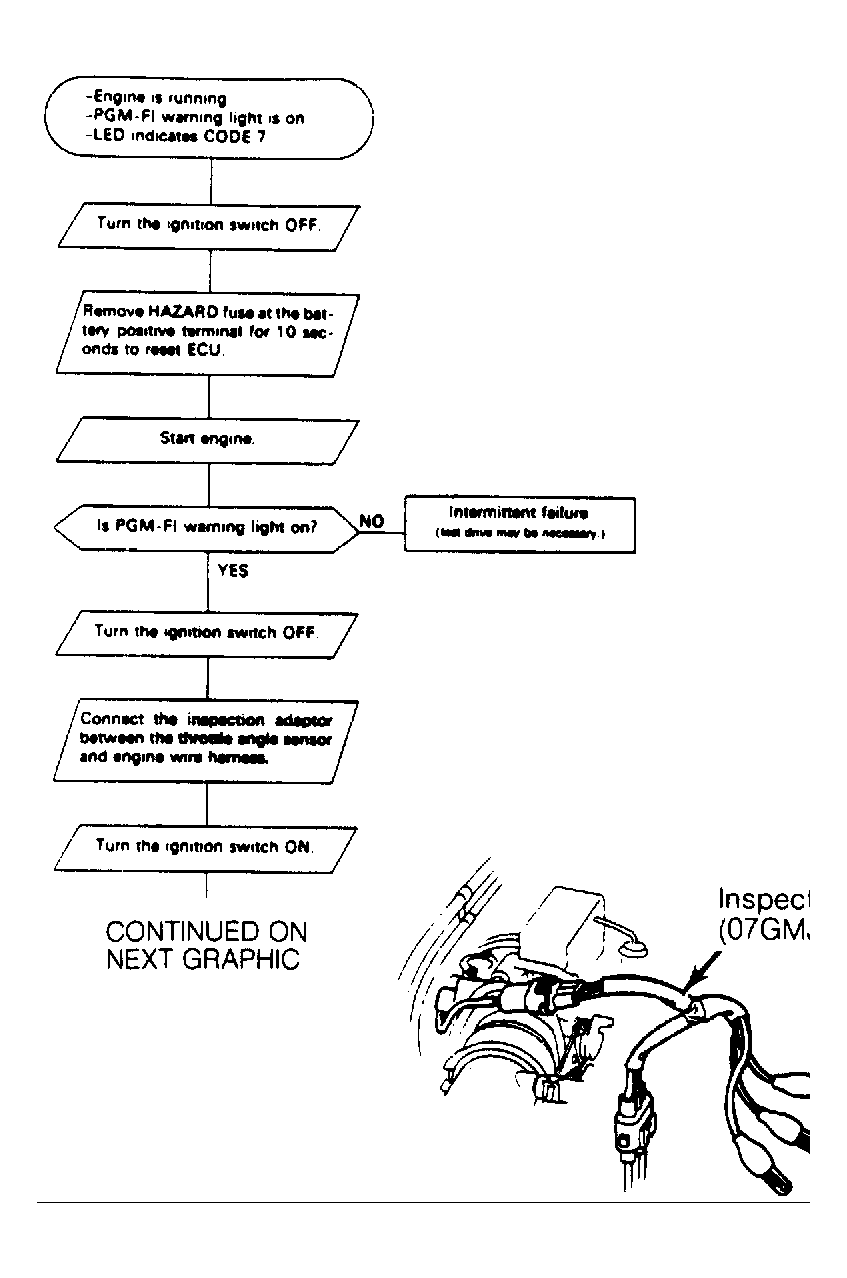

Fig 1: Code 7, Throttle Angle Sensor Chart, Integra (1 of 2)

G61235

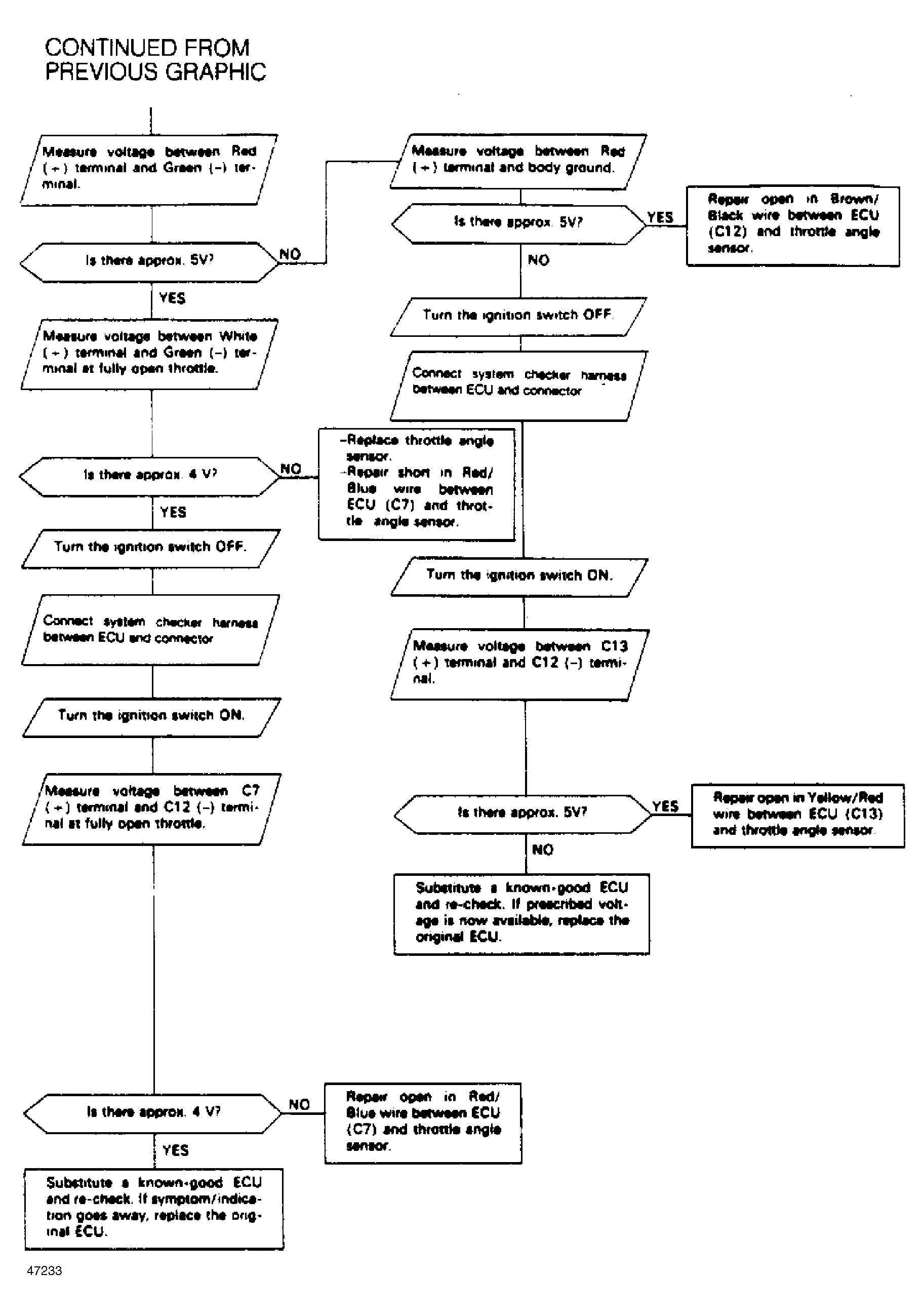

Fig 2: Code 7, Throttle Angle Sensor Chart, Integra (2 of 2)

G47233
