Code Zero - Electronic Control Unit Test

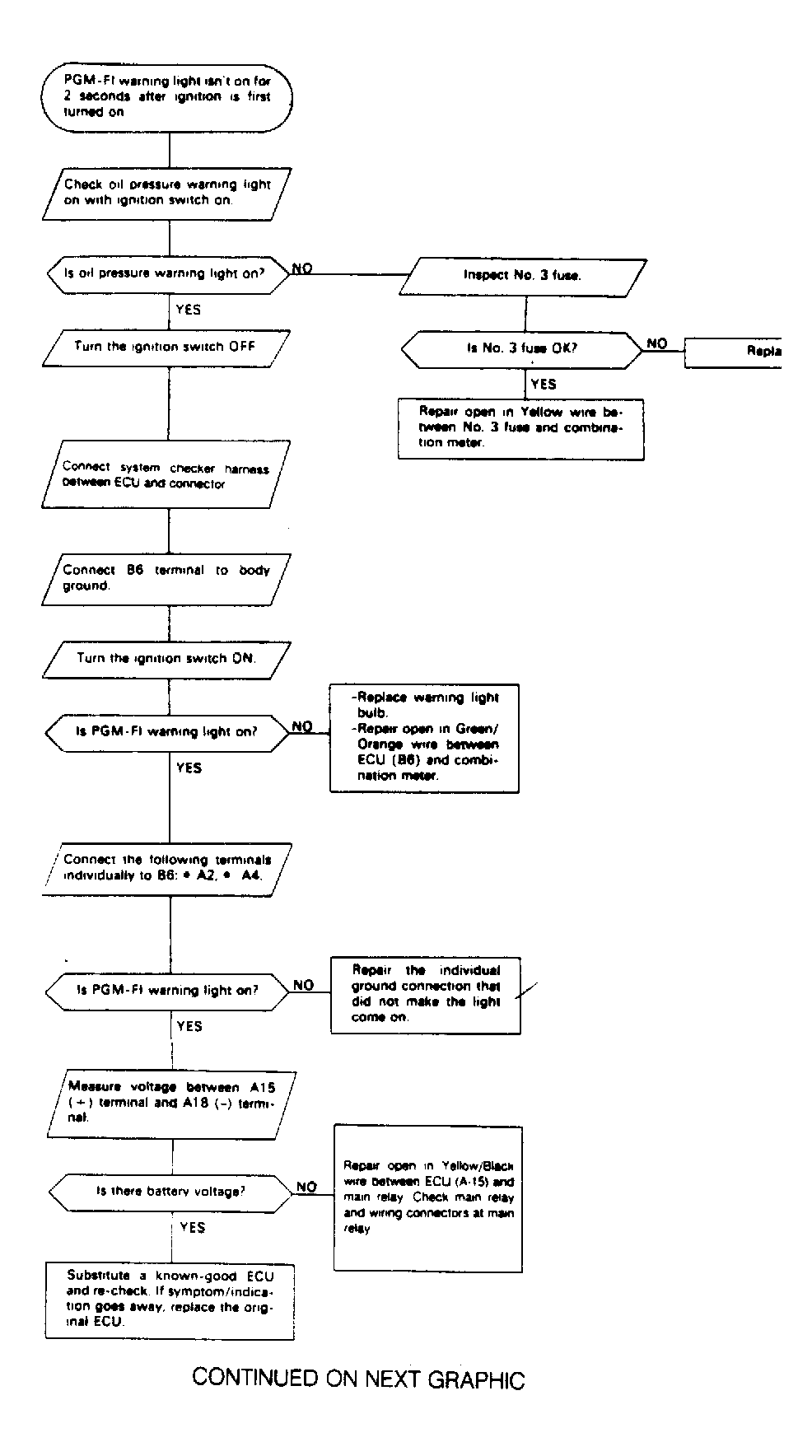

Fig 1: Code Zero, ECU Test Chart, Integra (1 of 2)

G61223

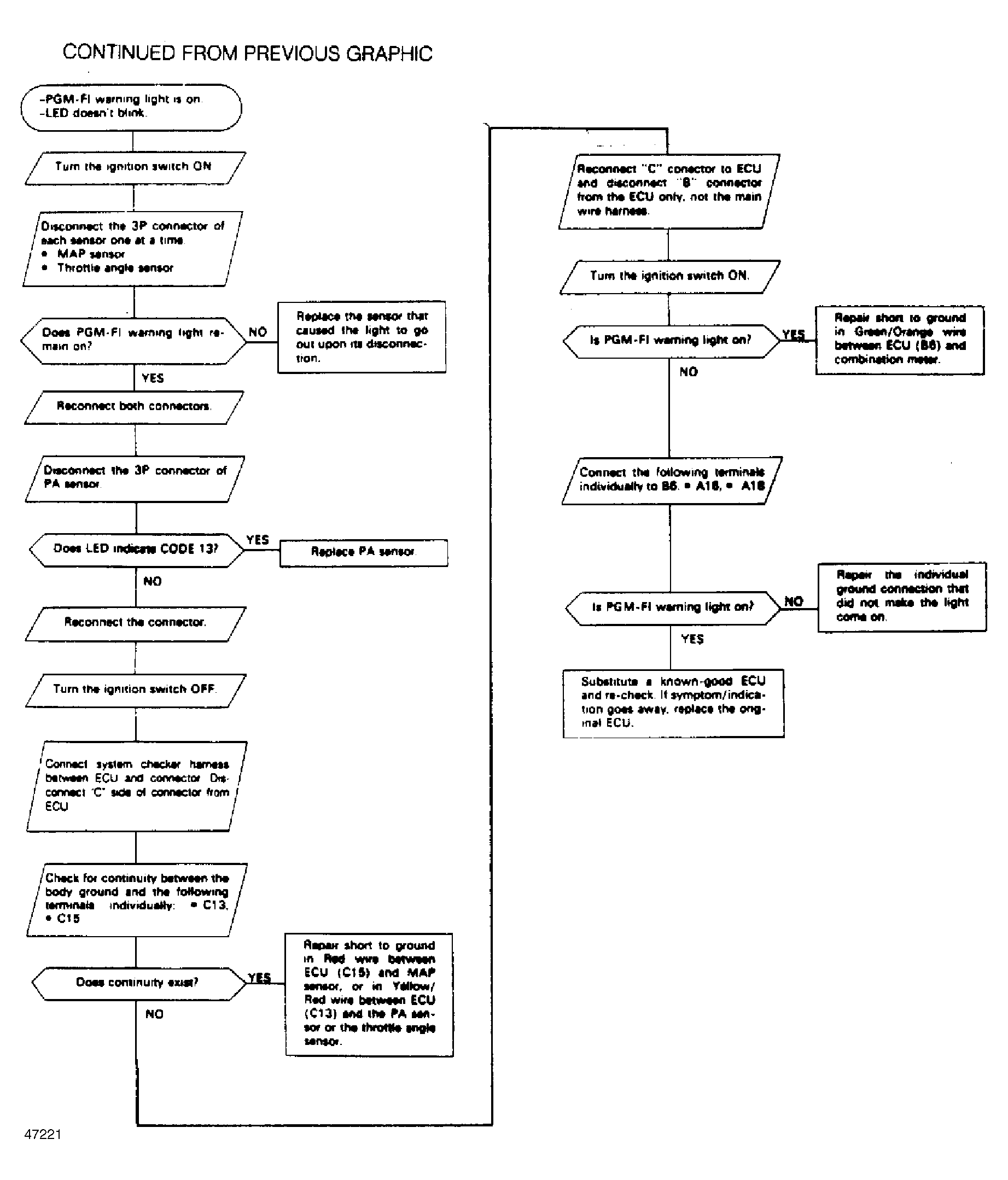

Fig 2: Code Zero, ECU Test Chart, Integra (2 of 2)

G47221
