Limit Switch Test

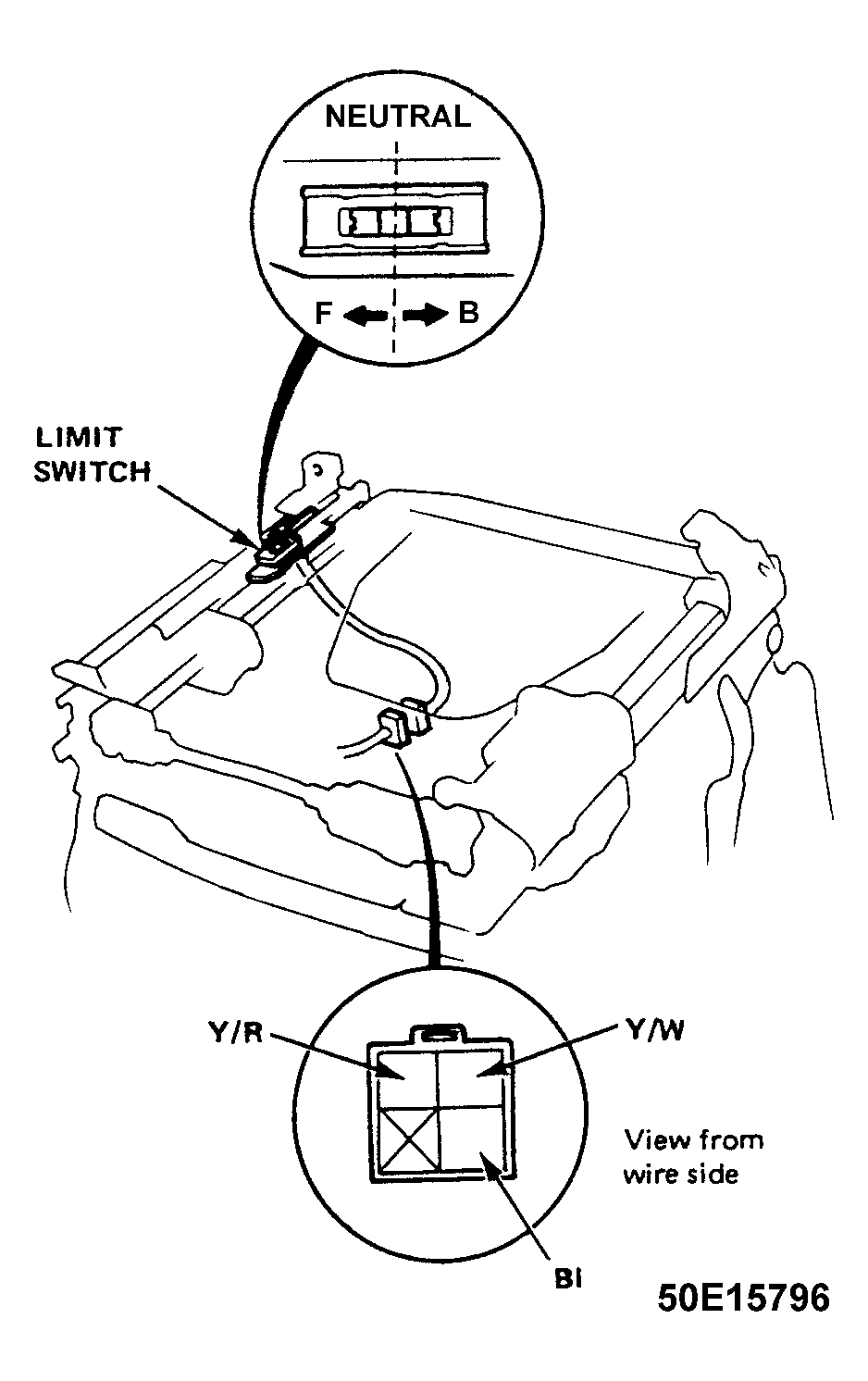

Remove driver's seat, then disconnect 4-P connector from relay assembly. Check for continuity between specified terminals with switch held in each position. Replace switch if continuity is not as specified. Refer to the LIMIT SWITCH TEST TABLE. Also, see Fig 1 .
LIMIT SWITCH TEST
| Switch Position | Terminals |
|---|---|
| "F" (Off At Full Forward Position) | Black-Yellow/Red |
| Neutral | Yellow/White-Black-Yellow/Red |
| "B" (Off At Full Back Position) | Yellow/White-Black |
