Electronic Control System: Wiring Diagram

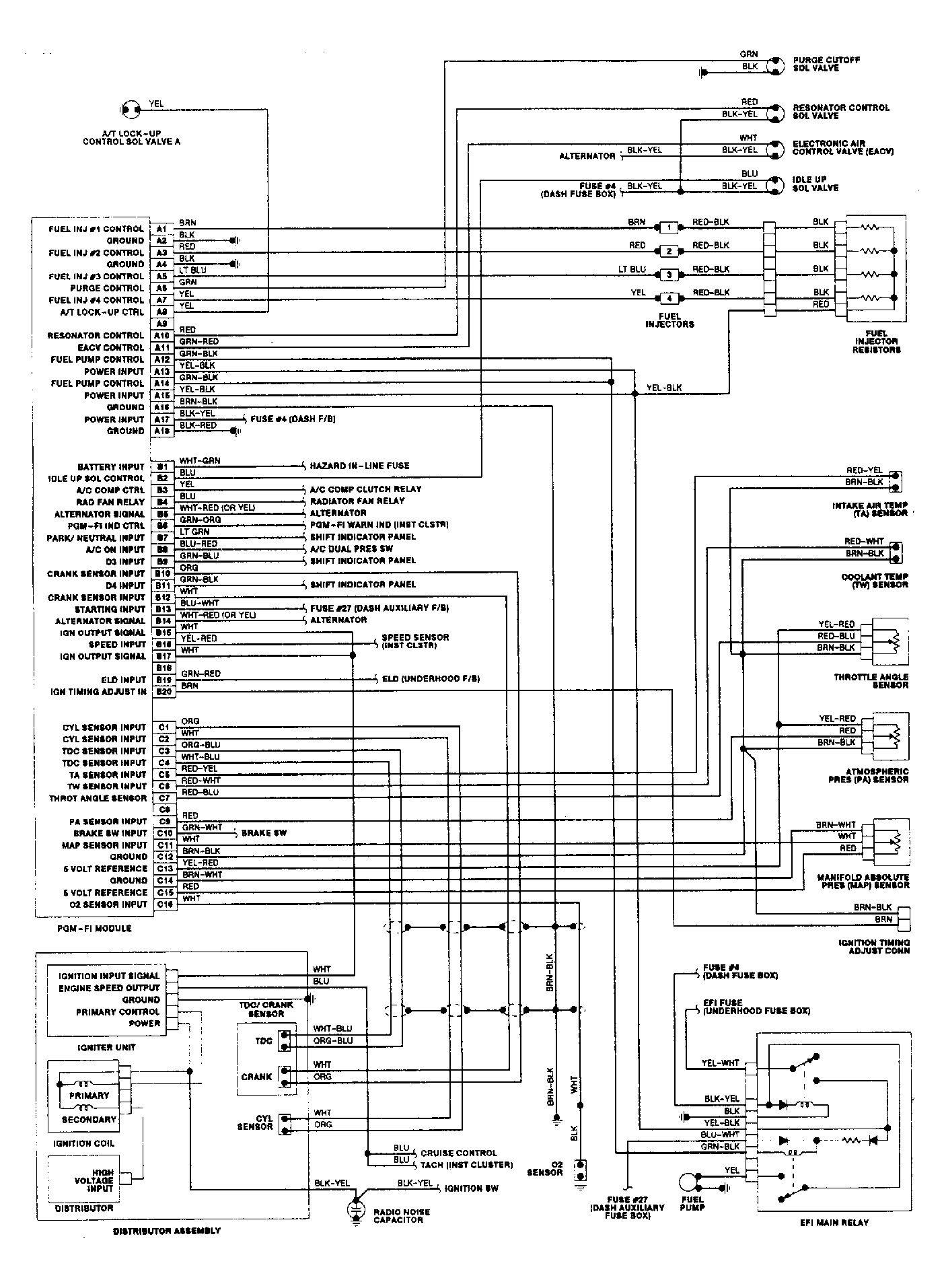

Fig 1: Integra Wiring Diagram
G94322Courtesy of AMERICAN HONDA MOTOR CO., INC.
