Component Tests: Chime

WARNING: This page is about a different car, the 1990 Acura Legend. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower panel to disconnect the 2-pin connector from the integrated control unit. See Fig 1.
  2. Test chime operation by connecting battery positive to the ORN terminal, and negative to the BLK terminal, and cycling the power on-off repeatedly.
  3. If the chime fails to sound every time power is cycled, replace it.

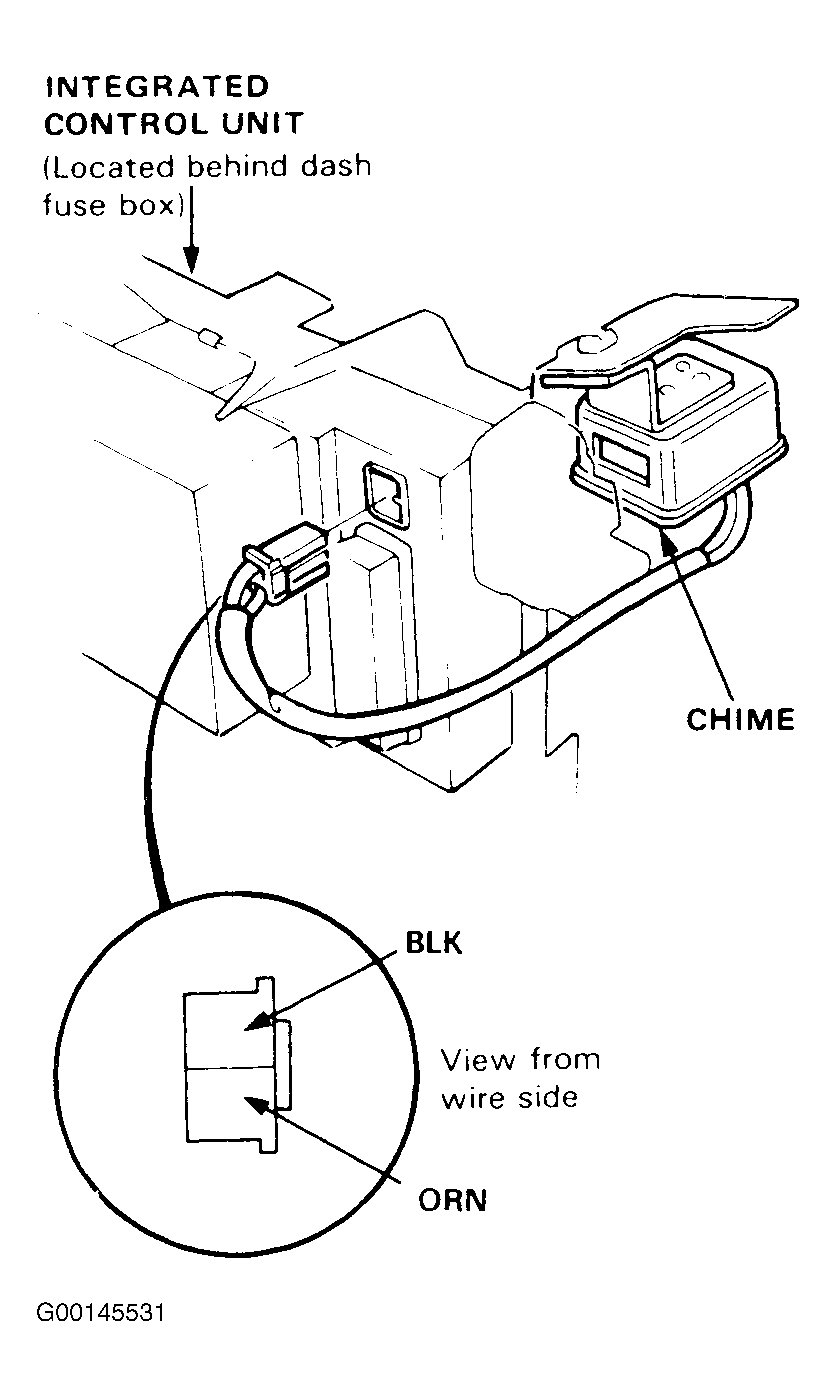

Fig 1: Locating Chime & 2-Pin Connector
G00145531Courtesy of AMERICAN HONDA MOTOR CO., INC.
