Wiring Diagrams

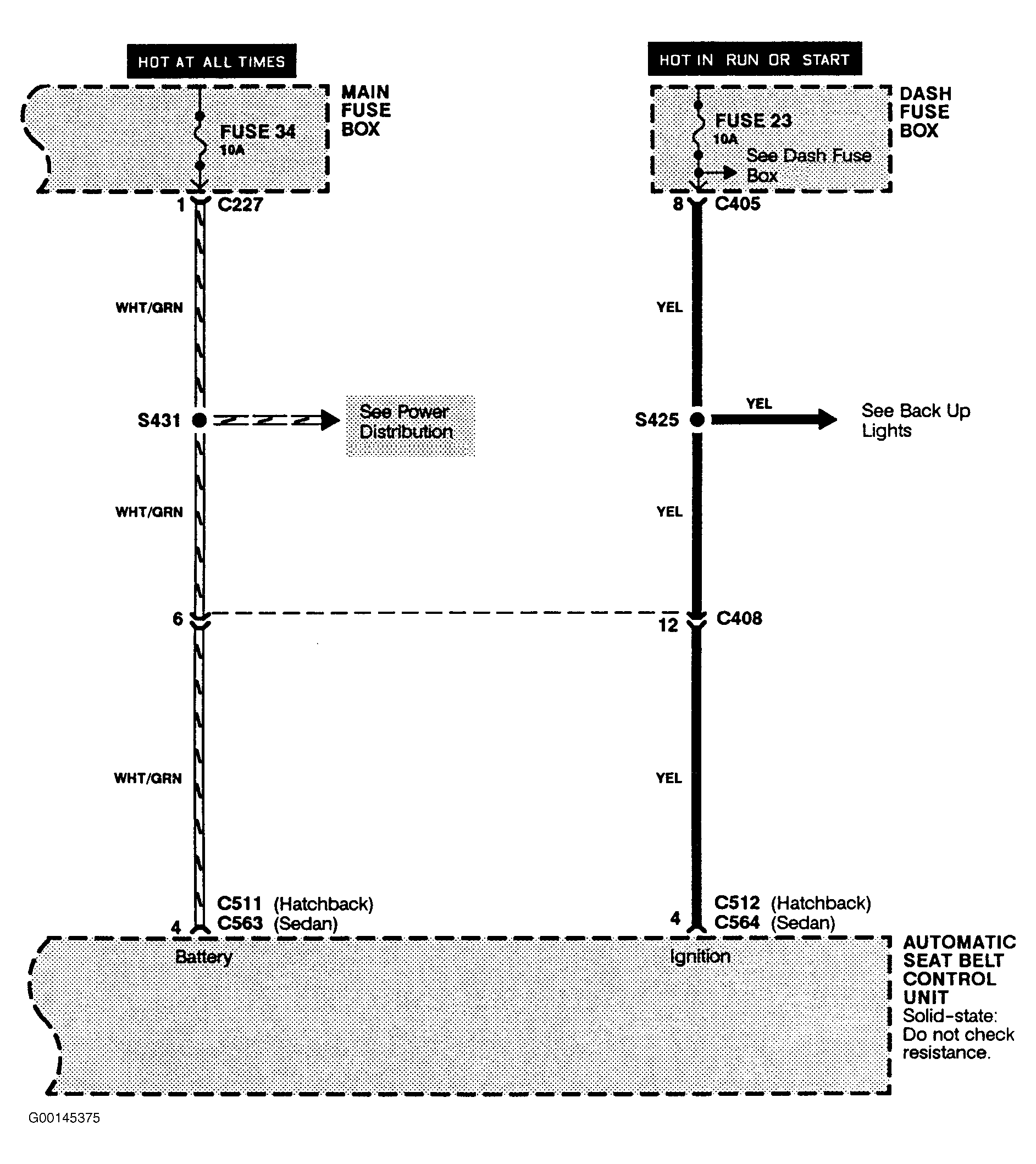

Fig 1: Automatic Shoulder/Seat Belts Wiring Diagram (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

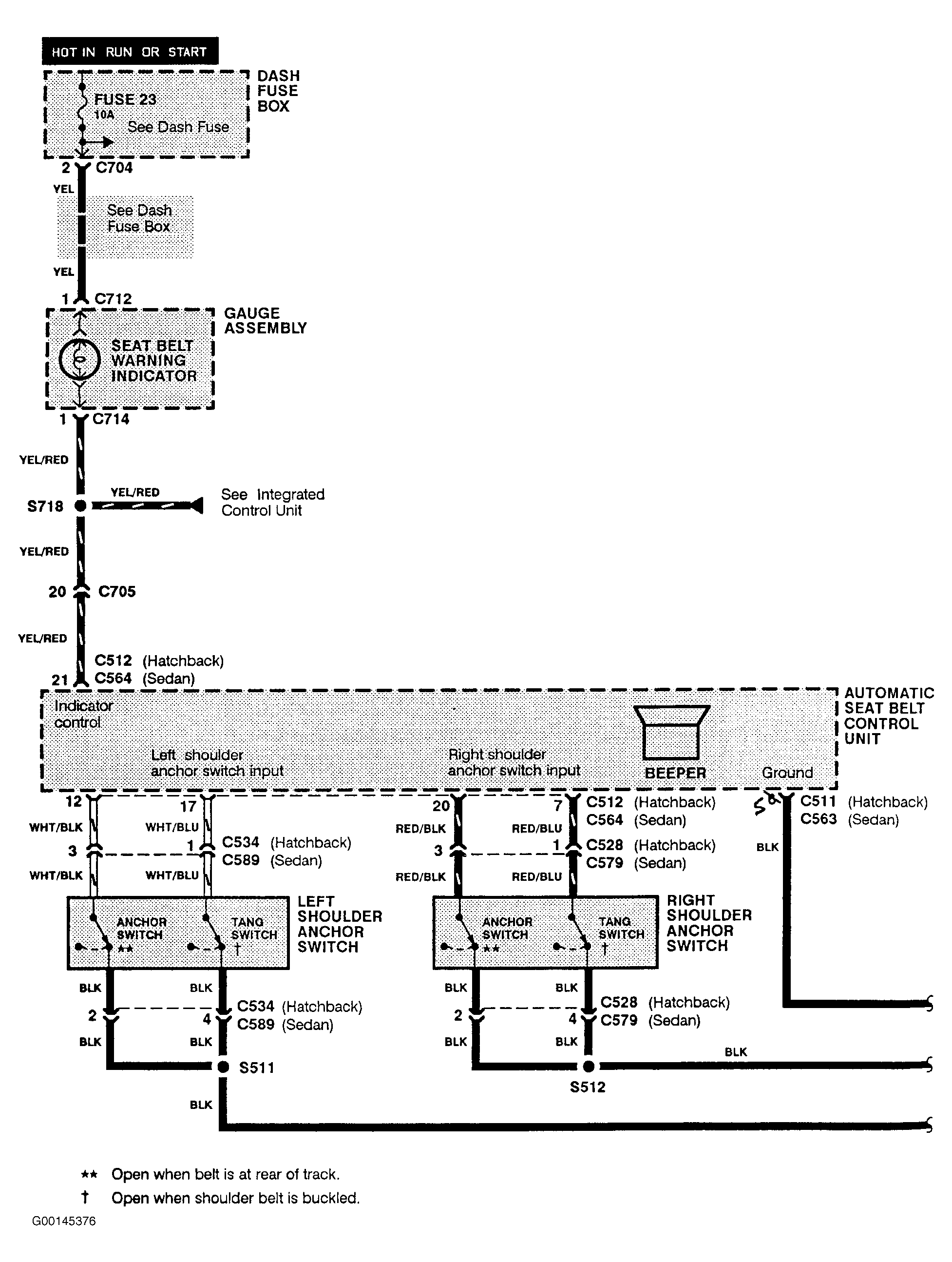

Fig 2: Automatic Shoulder/Seat Belts Wiring Diagram (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

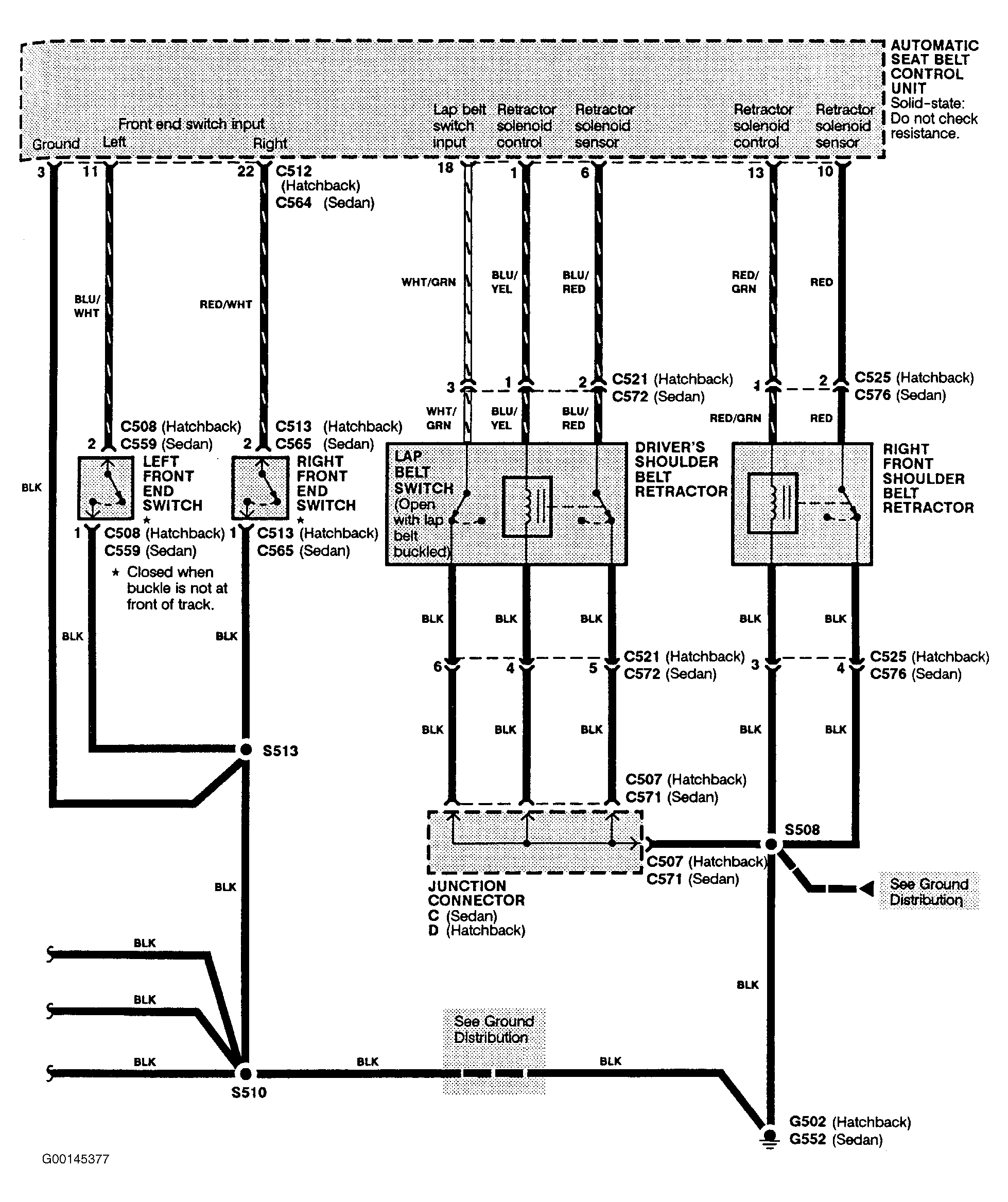

Fig 3: Automatic Shoulder/Seat Belts Wiring Diagram (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

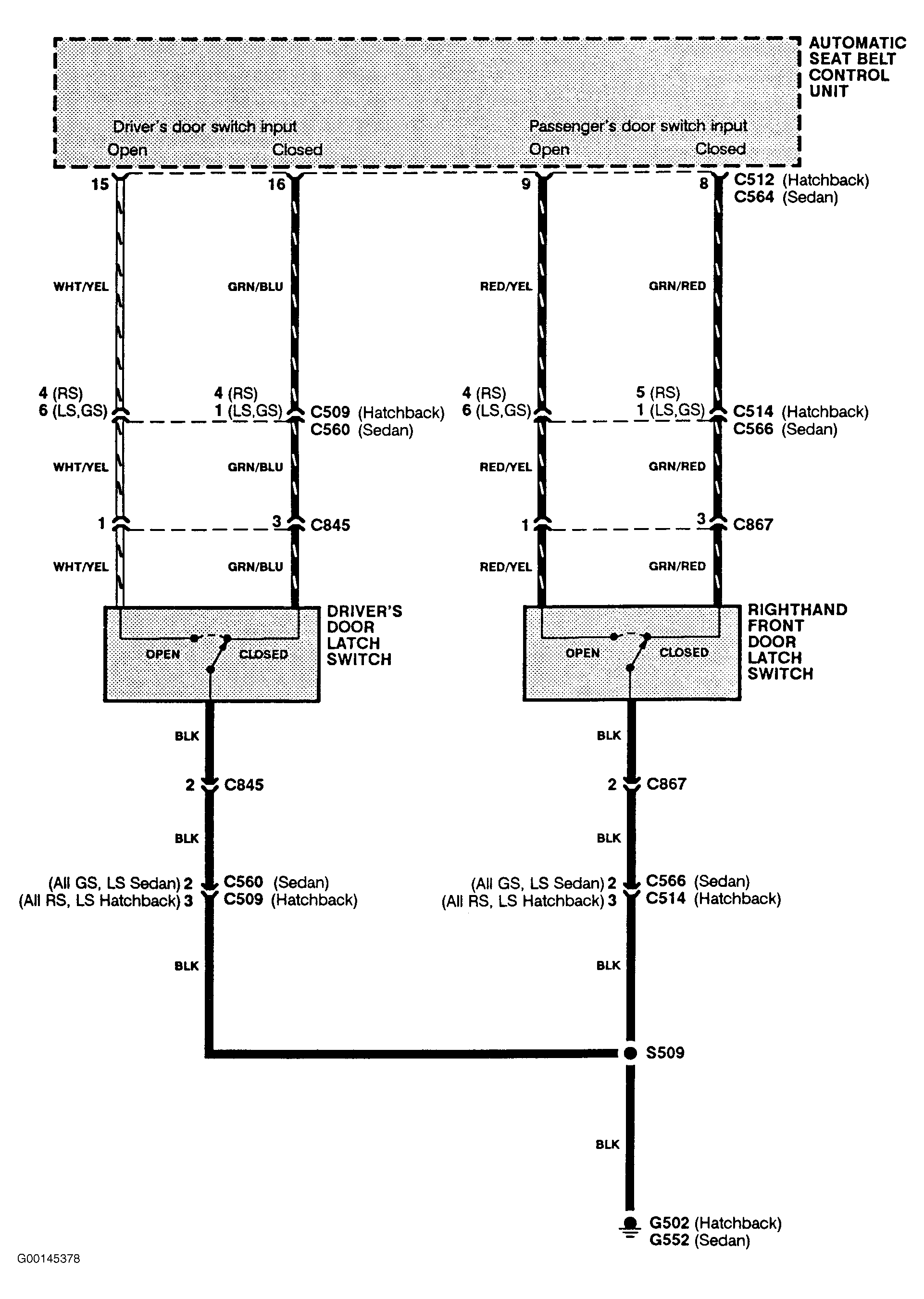

Fig 4: Automatic Shoulder/Seat Belts Wiring Diagram (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Automatic Shoulder/Seat Belts Wiring Diagram (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

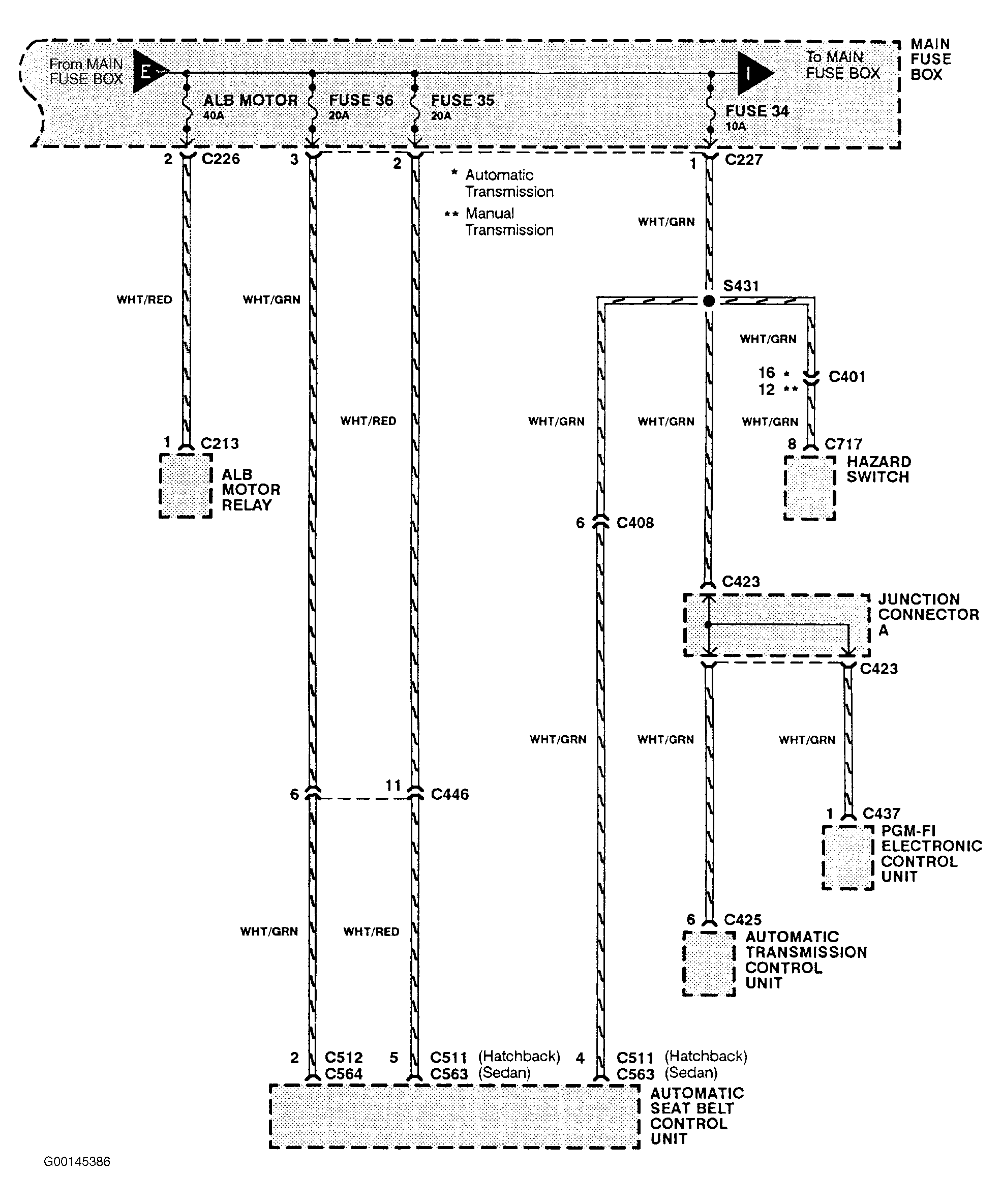

Fig 6: Power Distribution Wiring Diagram (Fuses 34-36 & ALB Motor Relay)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
