Set/Resume Switch Test: Integra

1. Remove steering wheel. Check continuity between terminals "A" and "C" with SET switch on and terminals "B" and "C" with RESUME switch on. Continuity should be present. If continuity is not present, replace switch. See Fig 1 .
2. To check slip ring, remove steering column lower cover. Disconnect 3-pin slip ring connector. Check continuity between Blue/Red wire and terminal "D", Lt. Green/Red wire and terminal "E", Lt. Green/Black wire and terminal "F" while turning slip ring. See Fig 2 . Repair or replace slip ring if test results are not as specified.

Fig 1: Testing SET/RESUME Switch (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

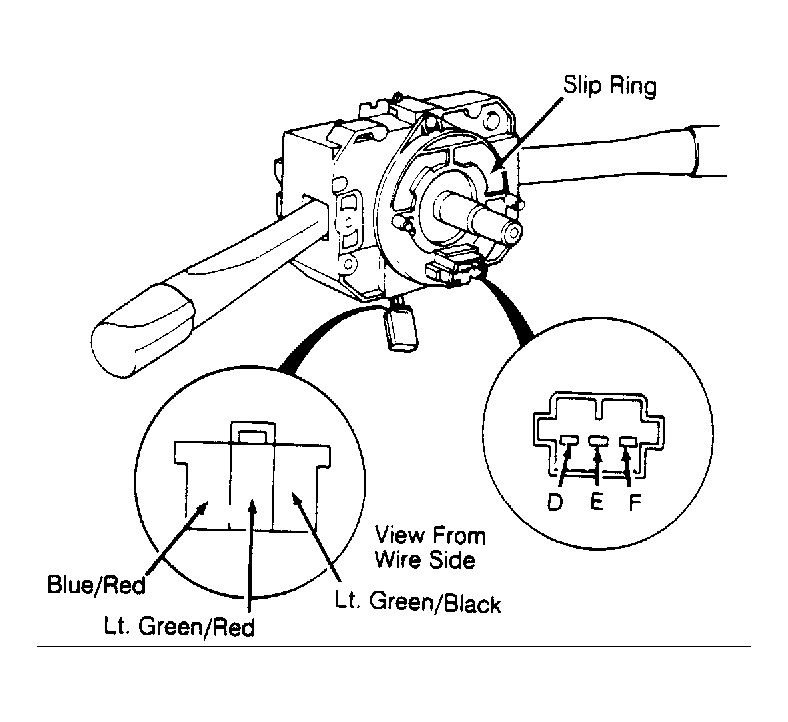

Fig 2: Testing Slip Ring (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
