Timer Unit & Fan Control Unit

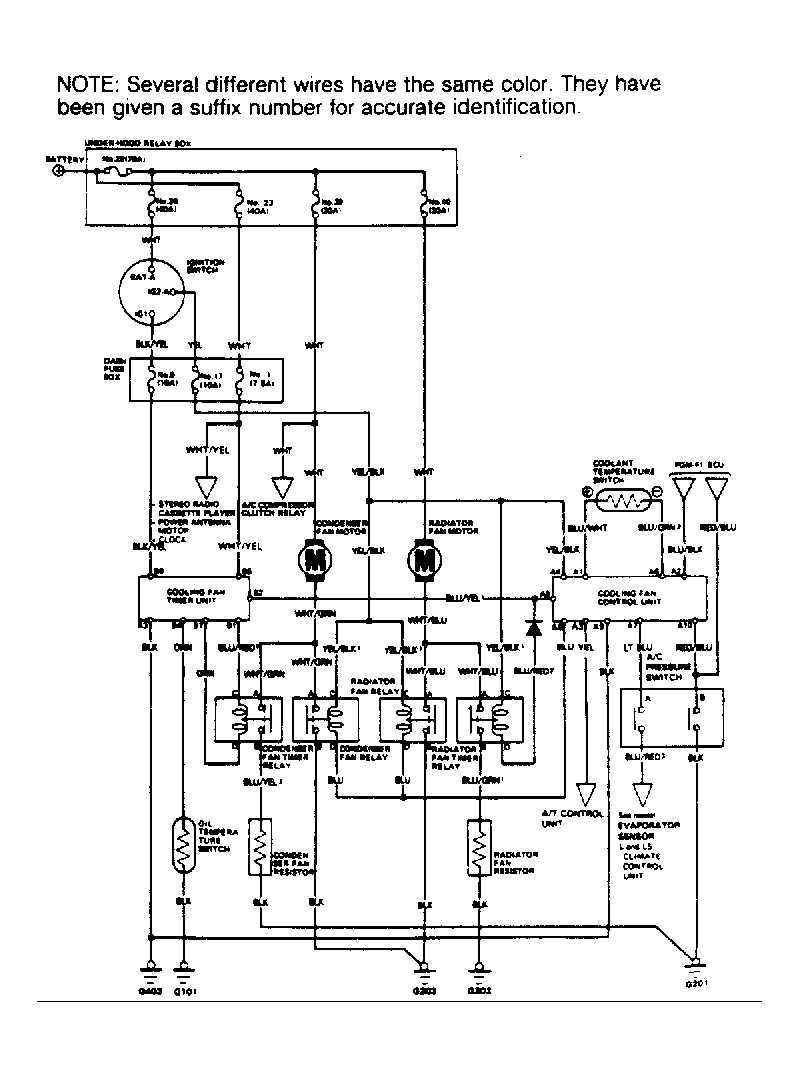

Check for opens or shorts in wiring between timer unit or fan control unit and the component under scrutiny. See TIMER UNIT TERMINAL ID table or FAN CONTROL UNIT TERMINAL ID table. See Figure or Figure . Also, see wiring schematic at beginning of article. See Figure .
