Lights-On Reminder System
Lights-On Reminder System
NOTE:
See
Figure
or
Figure
for connector terminal identification. For input test, see
Fig 1
.

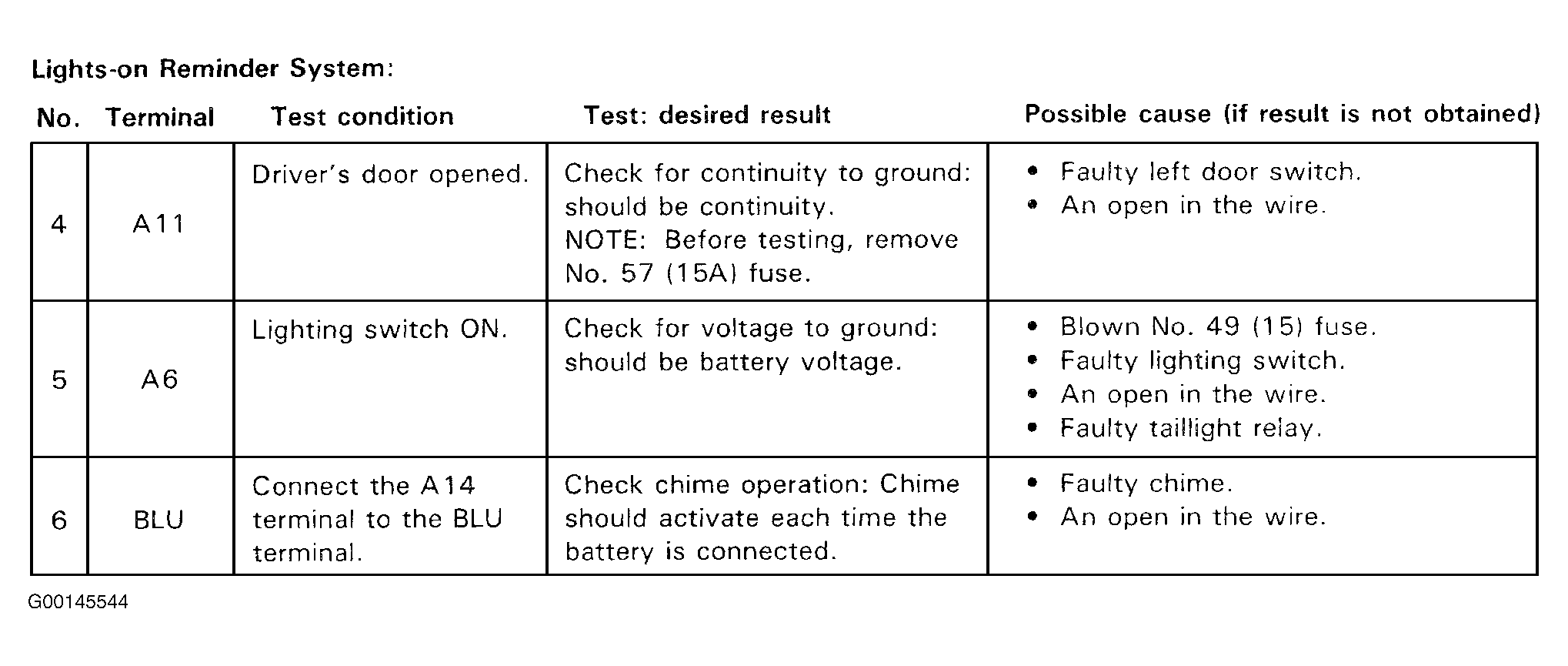

Fig 1: Lights-On Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
