Wiring Diagrams

Fig 1: 1988-89 (Legend) ABS Wiring Diagram

G58222

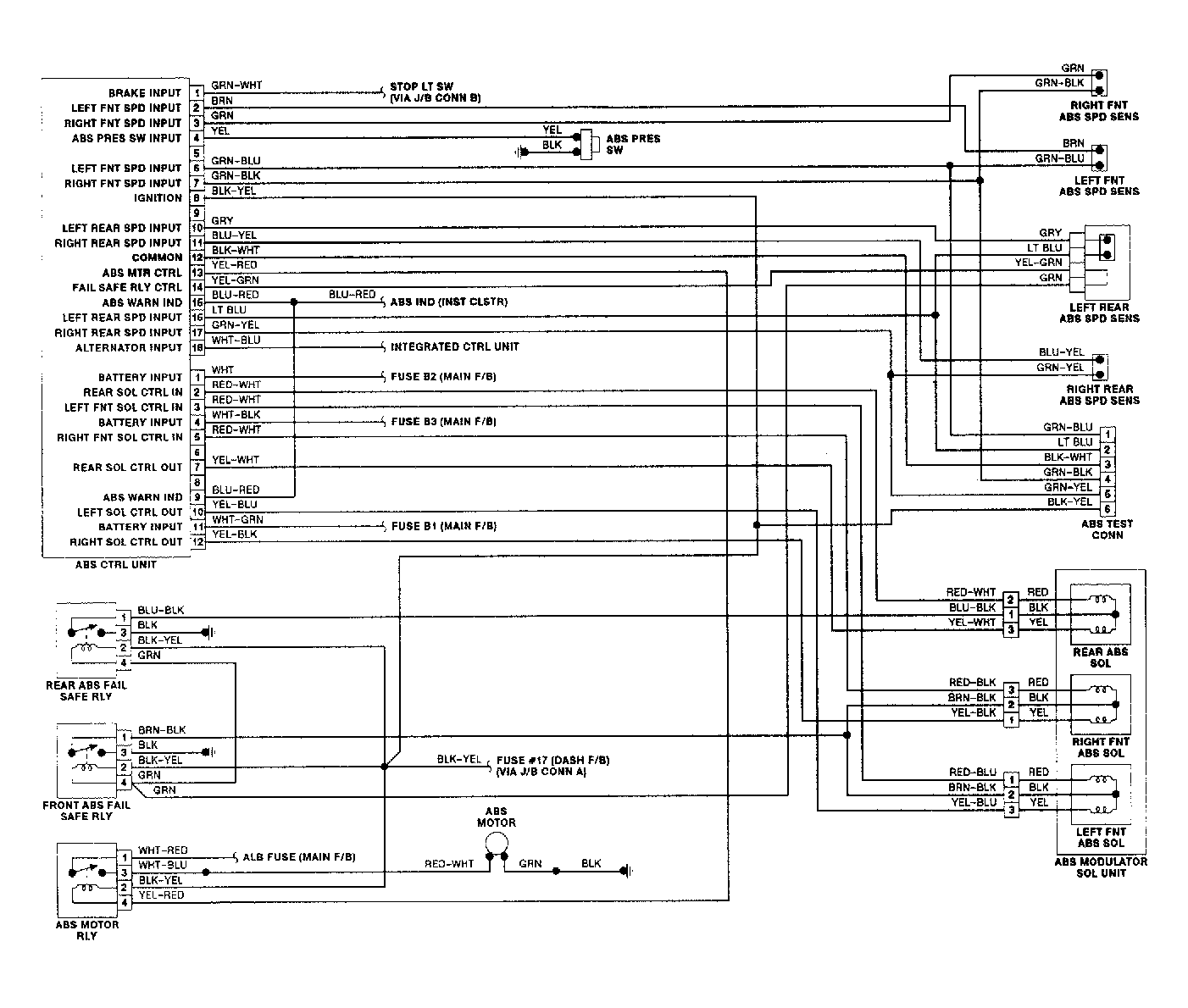

Fig 2: 1990 ABS Wiring Diagram (Integra)

G91F01422

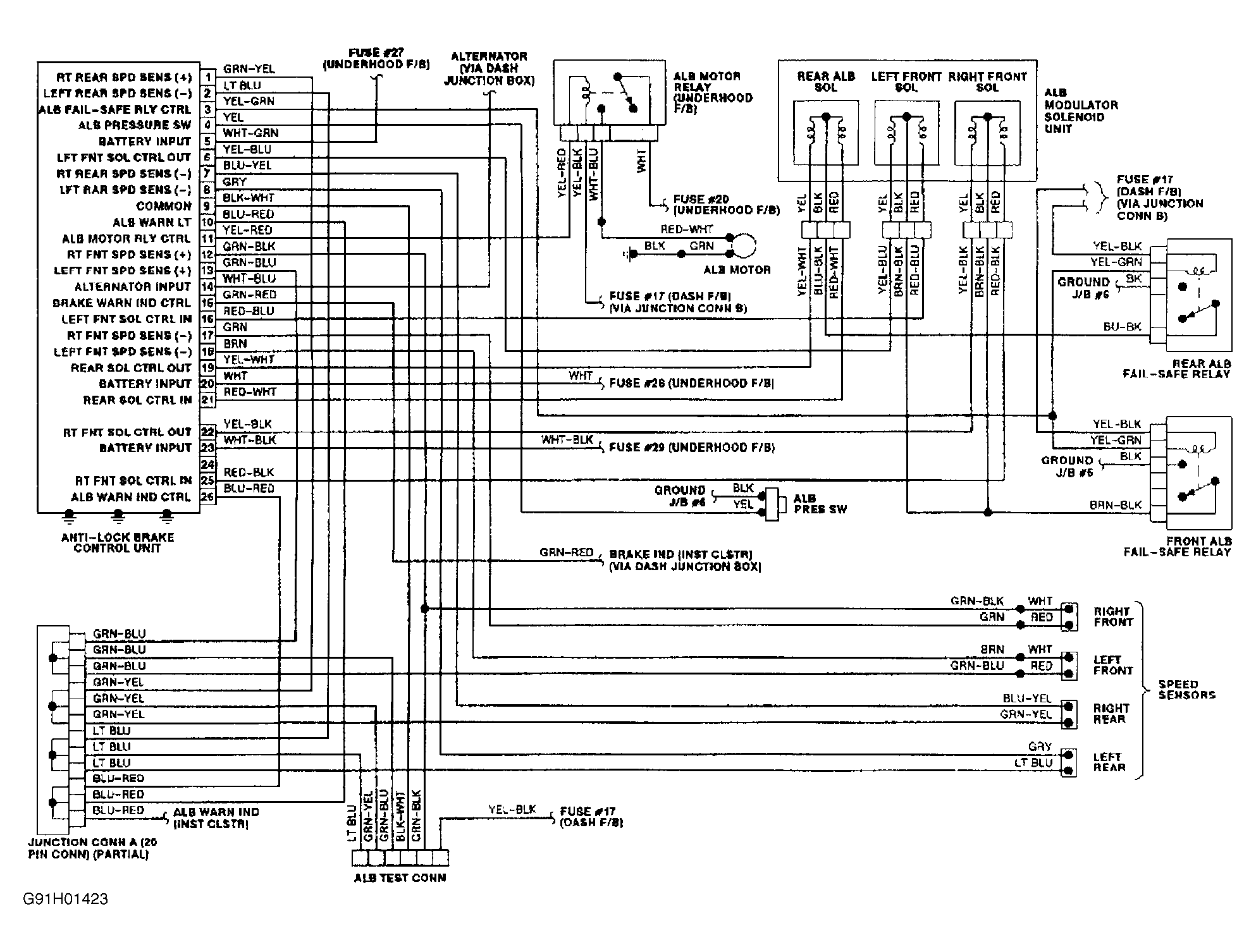

Fig 3: 1990 ABS Wiring Diagram (Legend)

G91H01423

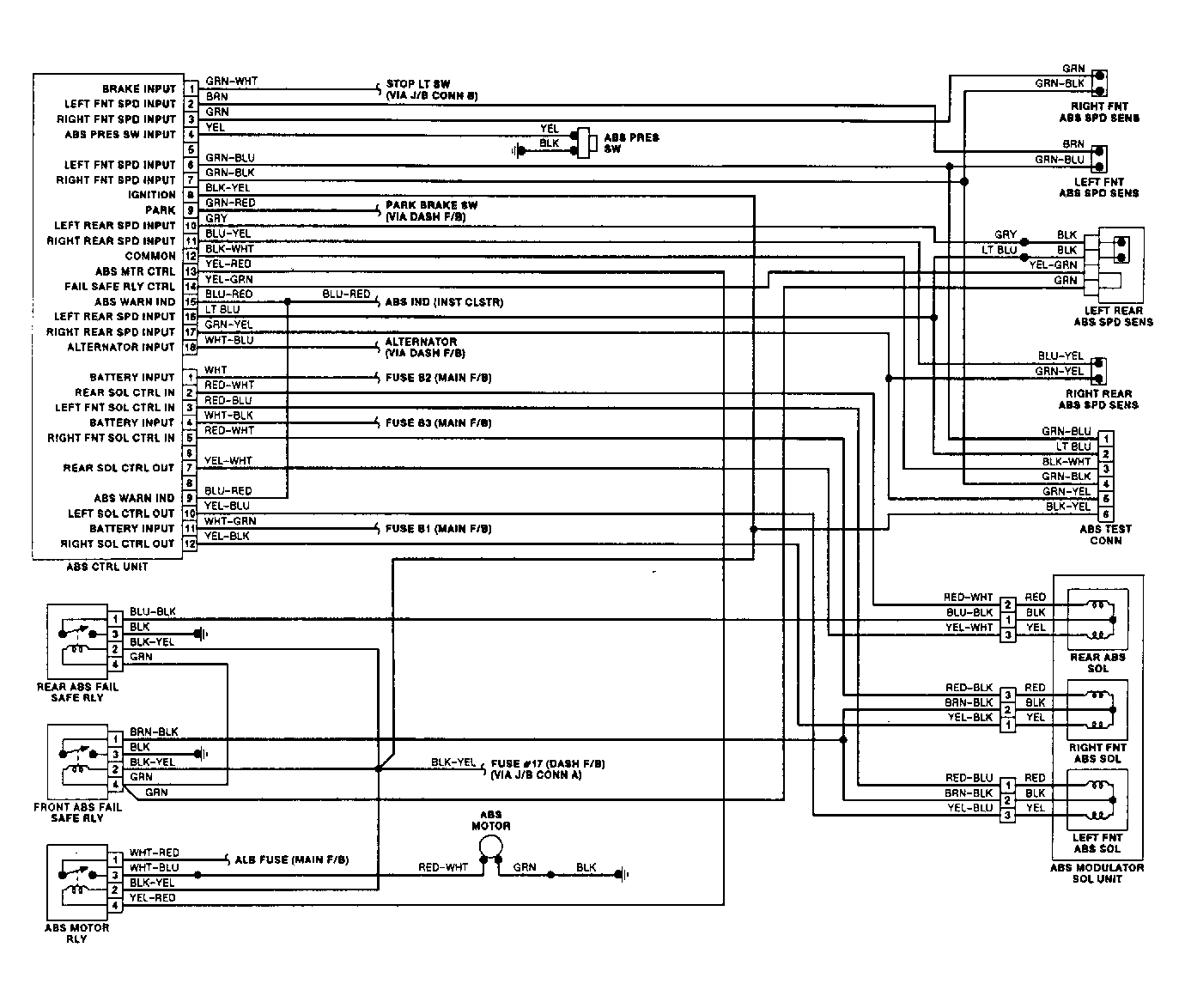

Fig 4: 1991 ABS Wiring Diagram (Integra)

G92I00966

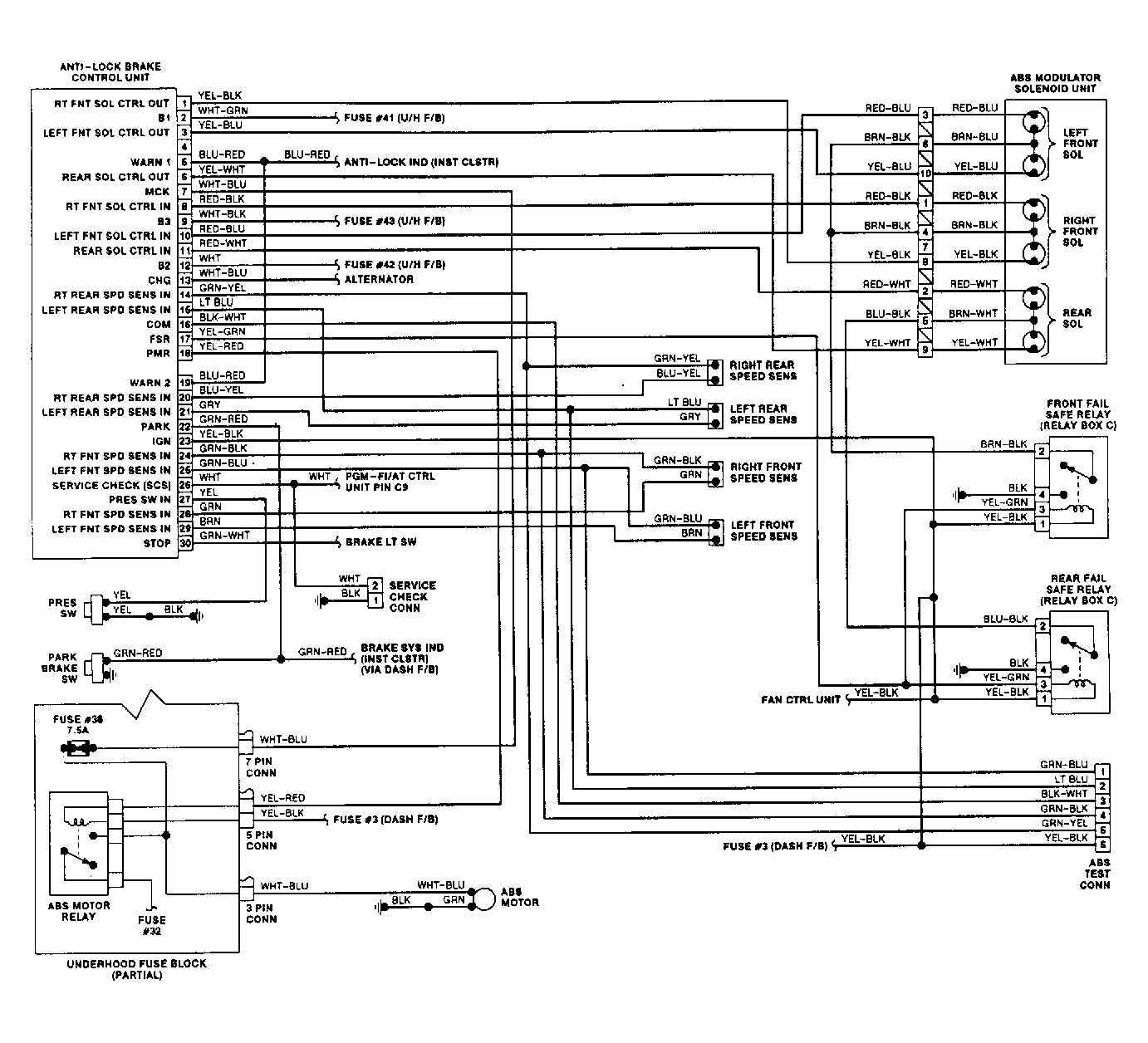

Fig 5: 1991 ABS Wiring Diagram (Legend)

G92J00967
