Function Control Motor Test

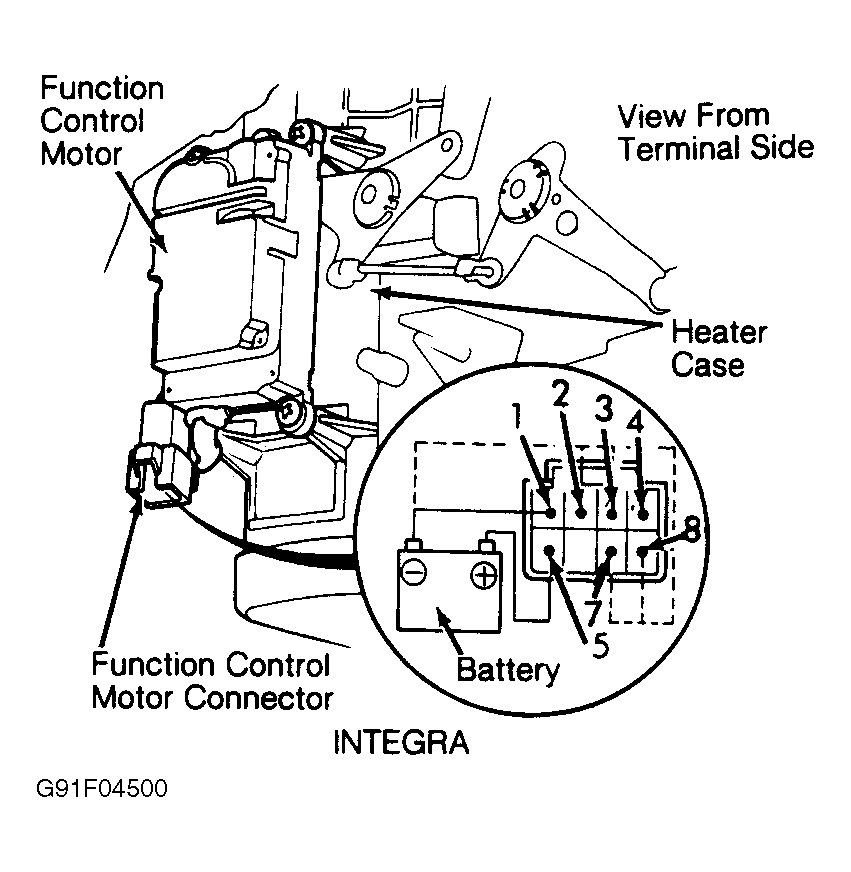

Disconnect the function control motor connector. Apply positive battery voltage to terminal No. 5, and ground terminal No. 1. See Fig 1 . Using a jumper wire, connect terminal No. 1 in order to terminals No. 2, 3, 4, 7 and 8. If motor does not operate each time circuit is completed, replace motor.
CAUTION:
After motor operates, remove power source as soon as possible or motor may be damaged.
