Combination Switch (Turn Signal/Headlight): Vigor

Remove instrument panel lower cover. Remove knee bolster and instrument panel lower frame. Unplug 12-pin connector. Using an ohmmeter, check for continuity between indicated terminals in each switch position. See Fig 1 .

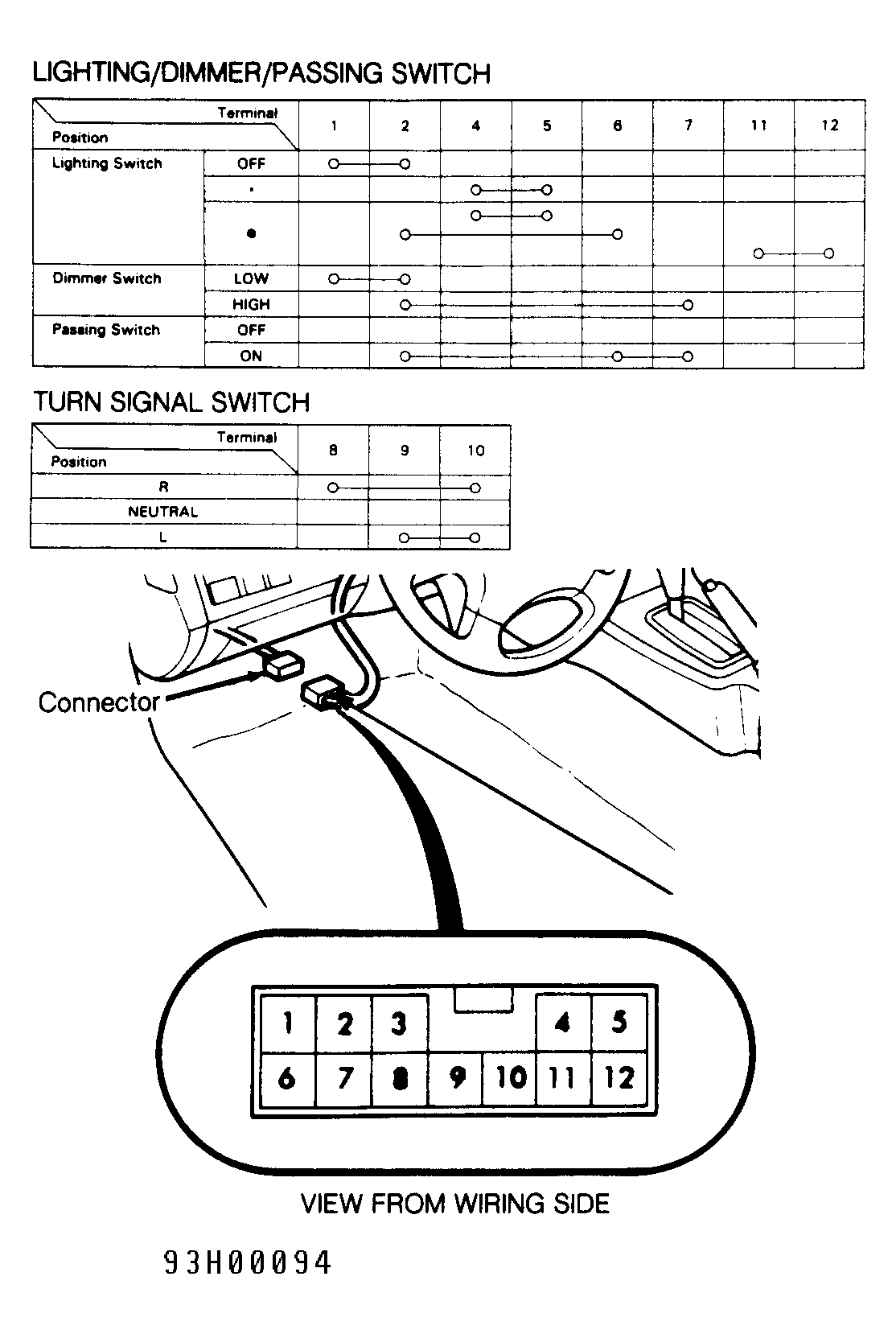

Fig 1: Testing Combination Switch (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
