Ignition Switch: Integra

Remove lower dashboard panel and left knee bolster. Unplug ignition switch 4-pin connector from dash fuse block. Unplug ignition switch 5-pin connector from main wiring harness. Using an ohmmeter, check continuity at each switch position. See Fig 1 .

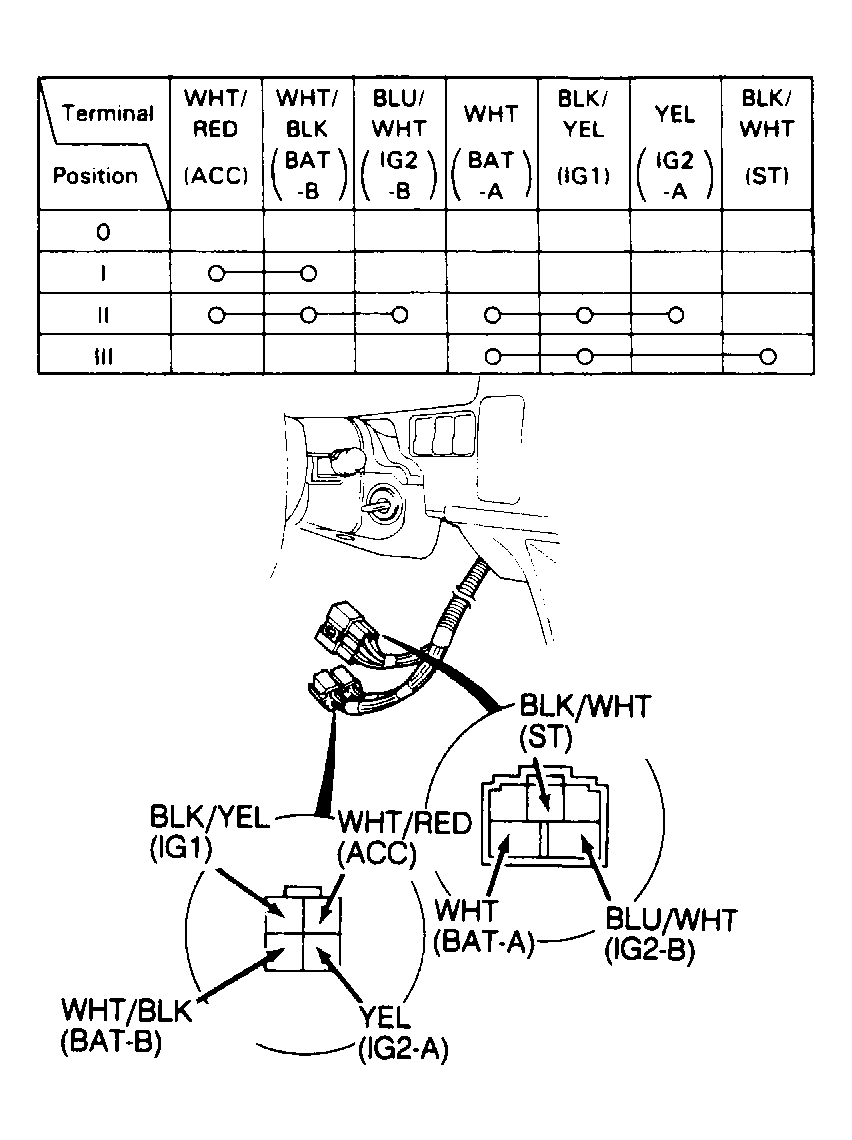

Fig 1: Testing Ignition Switch (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
