Ignition Switch: Legend

Remove switches from lower dashboard panel. Remove lower dashboard panel. Unplug ignition switch 7-pin connector from underdash fuse block. Using an ohmmeter, check continuity at each switch position. See Fig 1 .

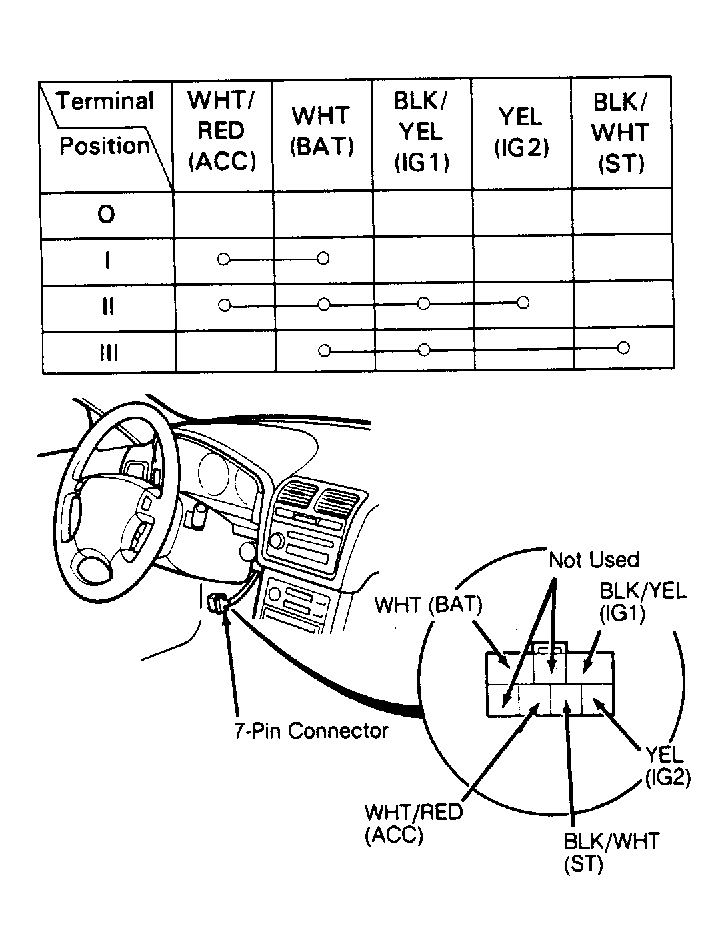

Fig 1: Testing Ignition Switch (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
