Wiring Diagrams

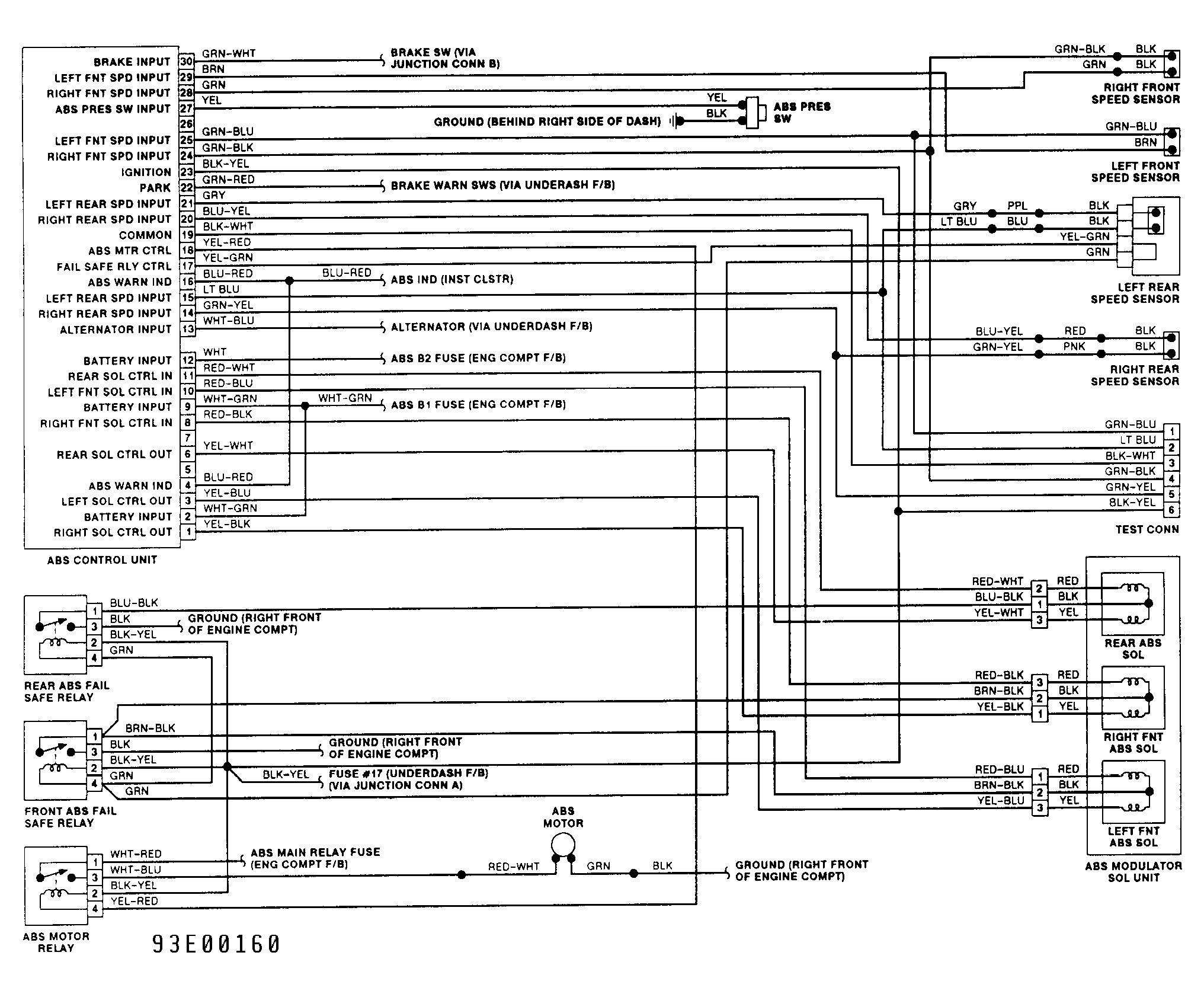

Fig 1: Anti-Lock Brake System Wiring Diagram (Integra)

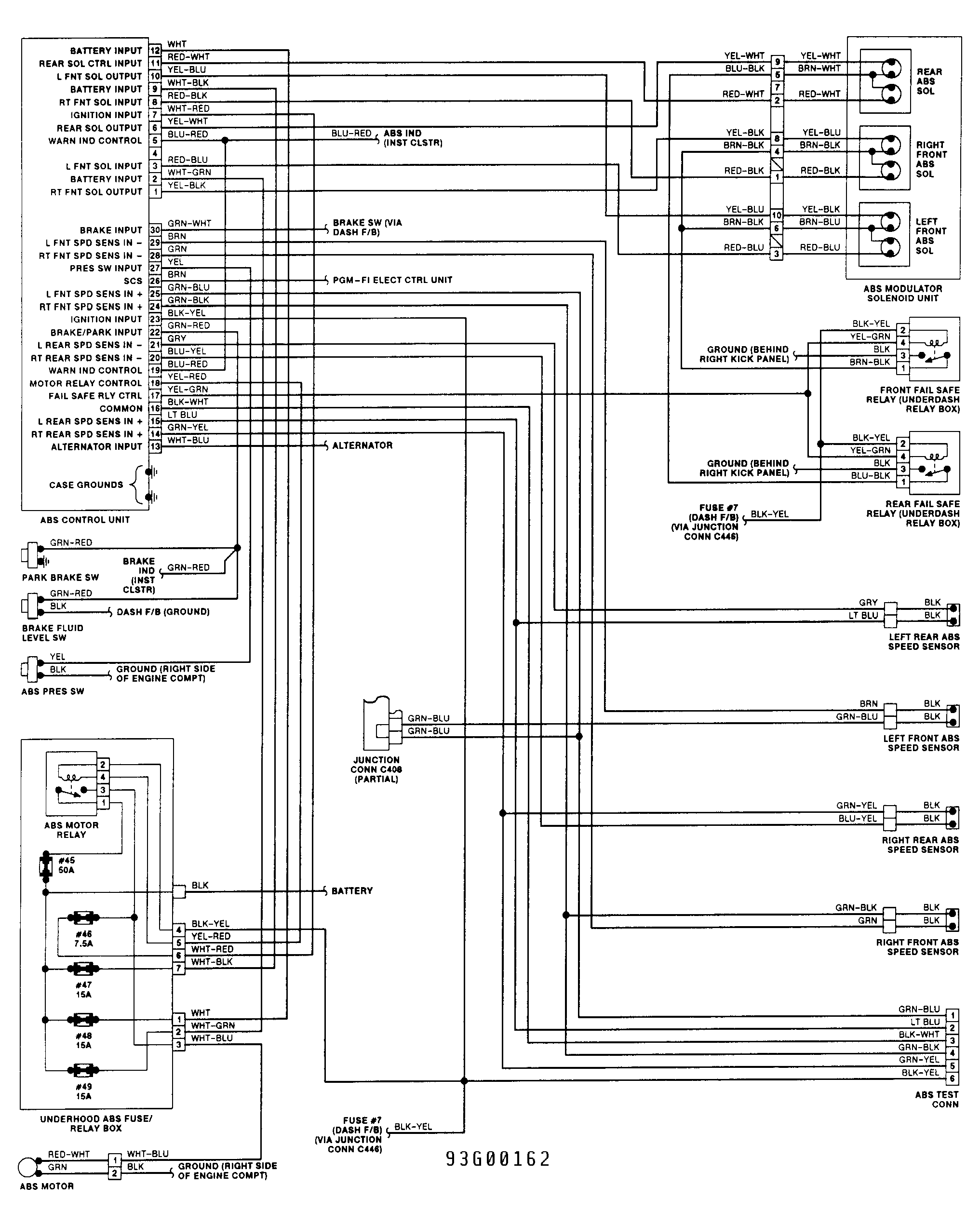

Fig 2: Anti-Lock Brake System Wiring Diagram (Legend)

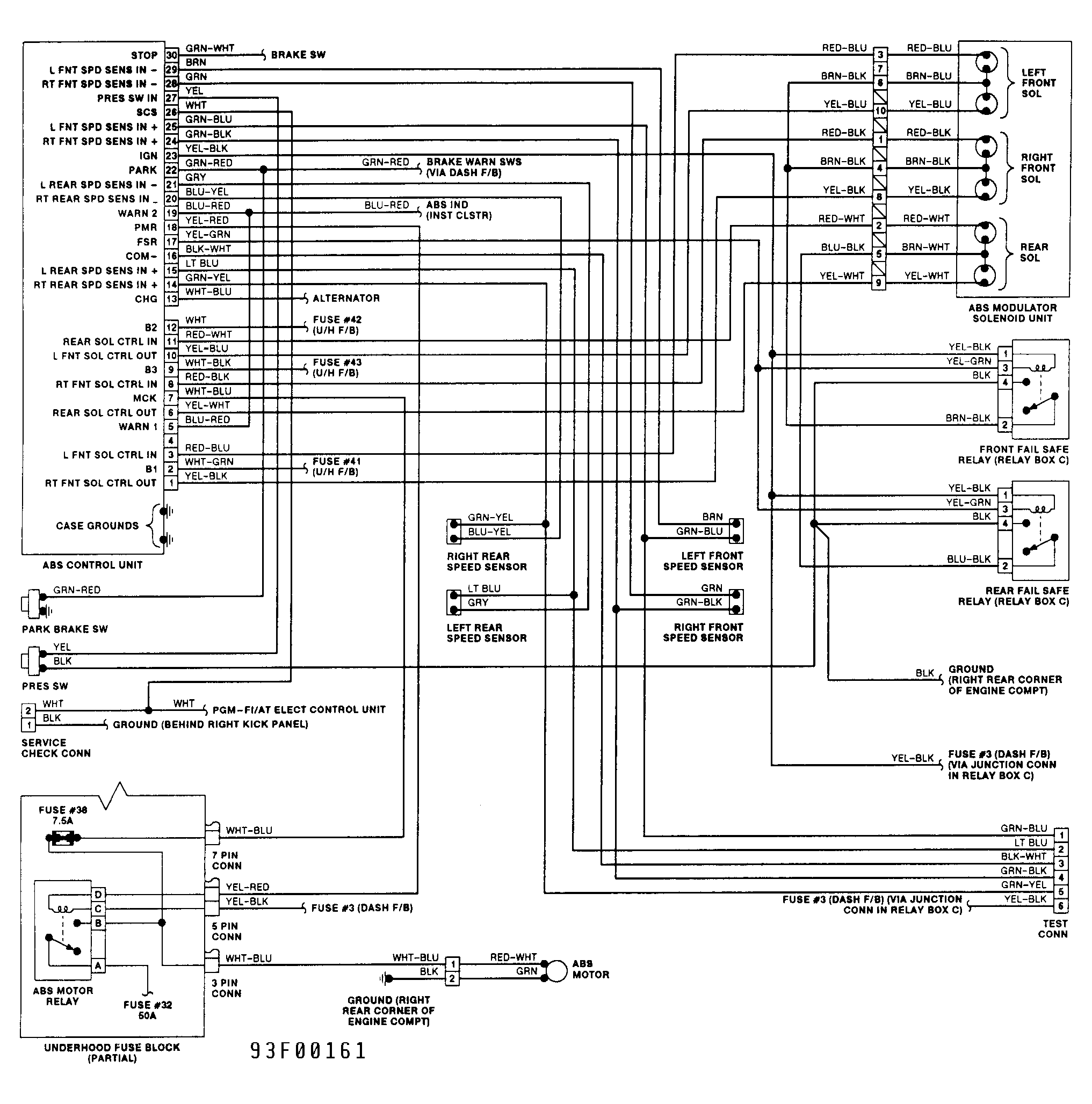

Fig 3: Anti-Lock Brake System Wiring Diagram (Vigor)
