Engine Cooling Fans
›
Wiring Diagrams
Wiring Diagrams

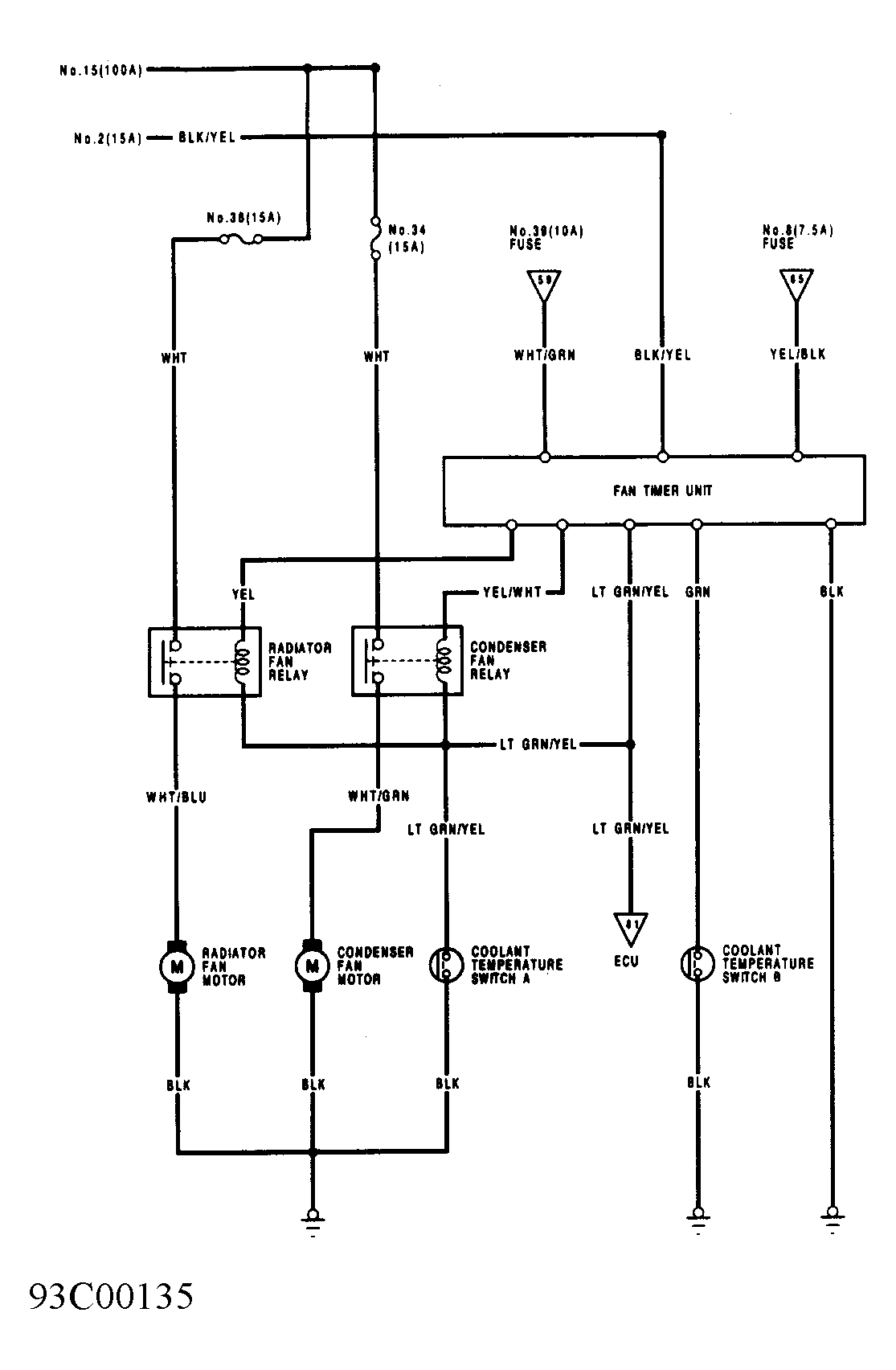

Fig 1: Cooling Fan Wiring Diagram (Integra)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Cooling Fan Wiring Diagram (Legend)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Cooling Fan Wiring Diagram (Vigor)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
