A/C System General Diagnostic Procedures
›
Air Conditioning System Performance Check
Air Conditioning System Performance Check

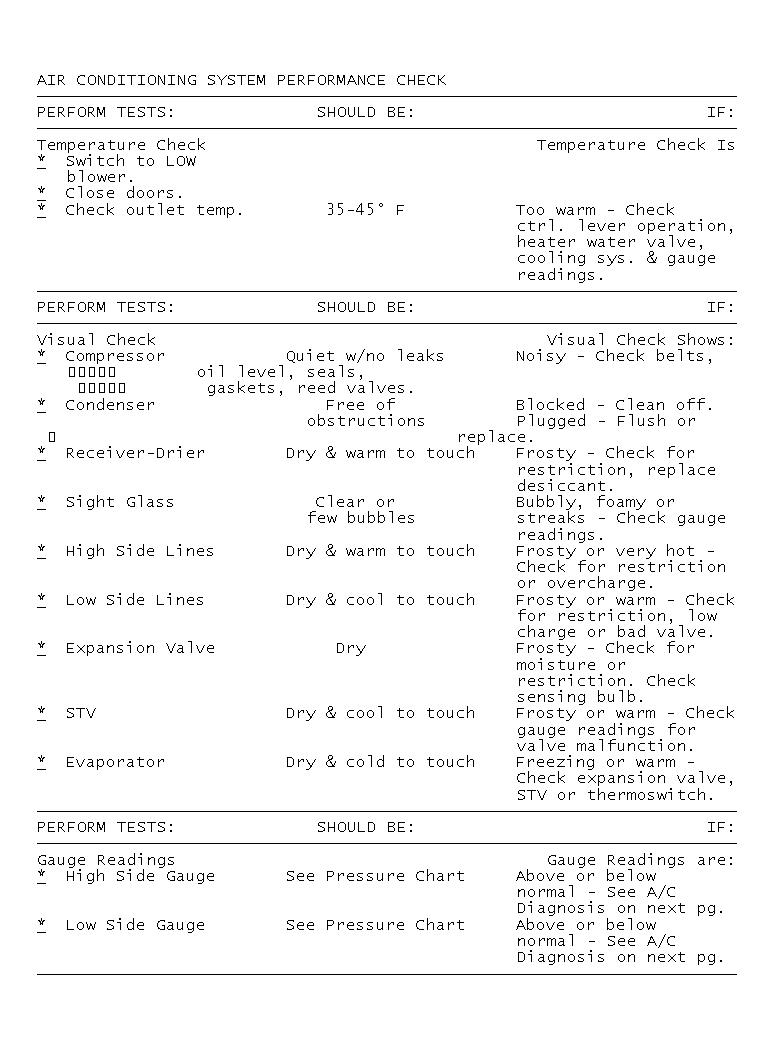

Fig 1: Air Conditioning System Performance Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
