Window Chatter - Reposition The Glass Regulator (93-011)

WINDOW CHATTER - REPOSITION THE GLASS REGULATOR

TECHNICAL SERVICE BULLETIN

WINDOW CHATTER

Model(s): 1990-93 Acura Integra

Group: Noise & Vibration

Bulletin No.: 93-011

Date: June 8, 1993

VIN Application: All

SYMPTOM

The glass chatters while going up or down.

PROBABLE CAUSE

The glass regulator is not positioned properly in the door.

CORRECTIVE ACTION

Re-position the glass regulator.

1. Remove the door lining and door panel bracket. Using a single- edge razor blade, cut through the rain shield adhesive. Lift the rain shield high enough to access the glass retainer nuts.
   Fig 1: Inner Door Identification


2. Raise the window slightly to re-position the regulator so you can loosen the retainer nuts.
3. Trace around the hold-down bolt in the slotted regulator roller guide with a felt-tip marker.
   Fig 2: Tracing Around Hold-Down Bolt


4. Loosen the six regulator bolts two turns, and loosen the two glass retainer nuts two turns.

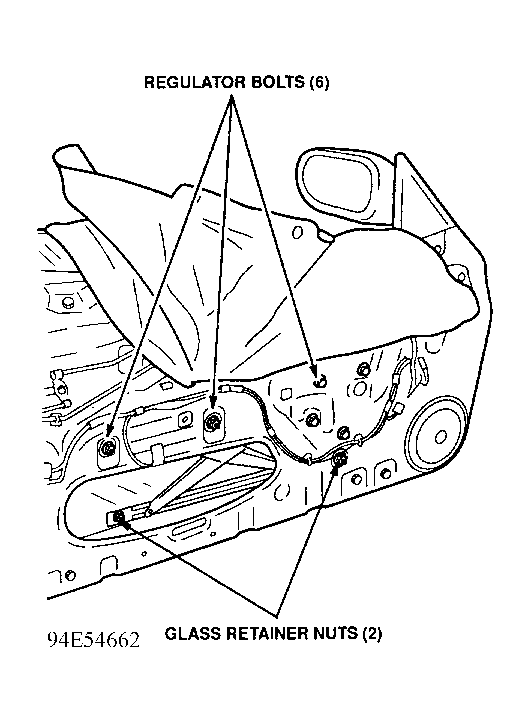

   Fig 3: Bolt & Nut Location


5. Hold the glass by the top edge with both hands, and shake the glass up and down.
   Fig 4: Shaking the Glass Up and Down


6. Check the tracing mark on the slotted regulator roller guide.

   - If the mark is lower than the center of the slot, tighten the six regulator bolts without moving the regulator roller guide.

   - If the mark is higher that the center of the slot, move the regulator roller guide hold-down bolt to a position below the center, and tighten the six regulator bolts.

   Fig 5: Regulator Roller Guide


7. Close the window fully, and loosen bolts A, B, and C to loosen the rear glass guide. See Fig 6 .
   Fig 6: Rear Glass Guide


8. Move the rear glass guide up against the nylon guide on the window, and tighten the nuts.
9. Apply lithium grease to the glass regulator guides as shown in Fig 7 .
   Fig 7: Apply Lithium Grease


10. Open and close the window a few times before reinstalling the door panel. If the window still chatters, adjust the regulator by tightening the hold-down bolt further down in the slotted regulator roller guide.
11. If the chatter has been eliminated, reinstall the plastic door liner, the door panel bracket, and the door panel.
12. Check the fix by closing the door and operating the window again.

Operation Number	Flat Rate Time	Failed P/N	Defect Code	Contention Code
826320 - Left 827320 - Right	0.6 hour	72251-SK7-003	042	B07
