Driveshaft Boot Band Tool (98-005)

Publication date: 2003-07-21
Reference number: 98-005

DRIVESHAFT BOOT BAND TOOL

DRIVESHAFT BOOT BAND TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): 98-005, Date of Issue:  July 21, 2003
ACURA: All Models
CATEGORY: Tools
APPLIES TO: All Models
Superceded Bulletin(s): 98-005, Date of Issue:  April 13, 1998
NOTE: Supersedes 98-005, BOOT BAND TOOL, dated April 13, 1998.

DESCRIPTION

The replacement boot bands for the driveshaft CV joint boots have changed. The replacement bands are a double loop type that require a special tool for proper installation.

TOOL INFORMATION

Boot Band Tool: T/N KD-3191

This tool is already at your dealership. To order additional tools, call the Acura Tool and Equipment Program. Phone lines are open Monday through Friday from 7:30 a.m. to 7:00 p.m. CT.

REPAIR PROCEDURE

  1. Remove the old boot band(s). Take care not to damage the boot.
  2. Remove and inspect the boot. Replace the boot if it is worn or damaged.
  3. Install the boot, and fill it with the specified amount and type of grease. Refer to section 16 of the appropriate service manual for the grease amount and type.
  4. Adjust the driveshaft to the proper length. Refer to section 16 of the appropriate service manual.
  5. Install the replacement boot band onto the large end of the boot with the end of the band facing toward the front of the vehicle. See Fig 1 .

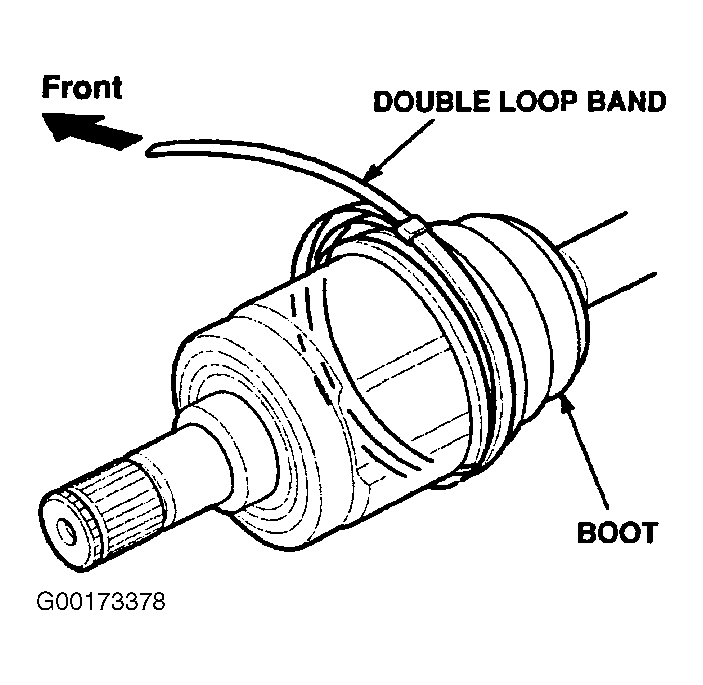

    Fig 1: Double Loop Band
    G00173378
  6. Take up the slack in the boot band by hand, and hold the boot band in place.
  7. Measure and mark the band with a felt-tip pen at the specified distance from the clip. Refer to Fig 2 :
    • If you are installing a new boot, mark the band approximately 10 to 14 mm (0.4 to 0.6 in.) from the clip.
    • If you are reinstalling the original boot, mark the band 10 mm (0.4 in.) from the clip.

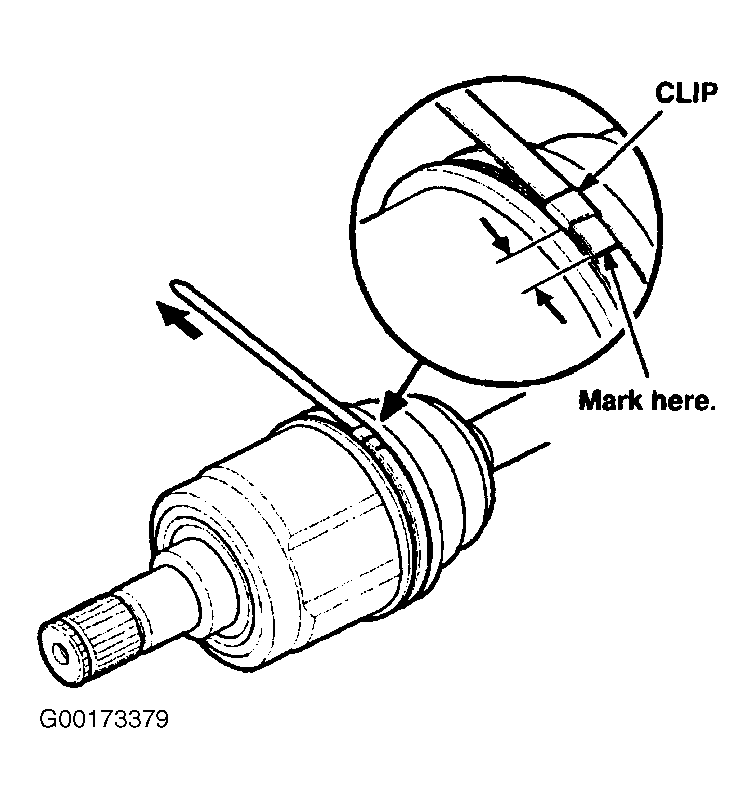

    Fig 2: Measuring & Marking Band
    G00173379
  8. Thread the free end of the band through the nose section of the boot band tool and into the slot on the winding mandrel. See Fig 3 .

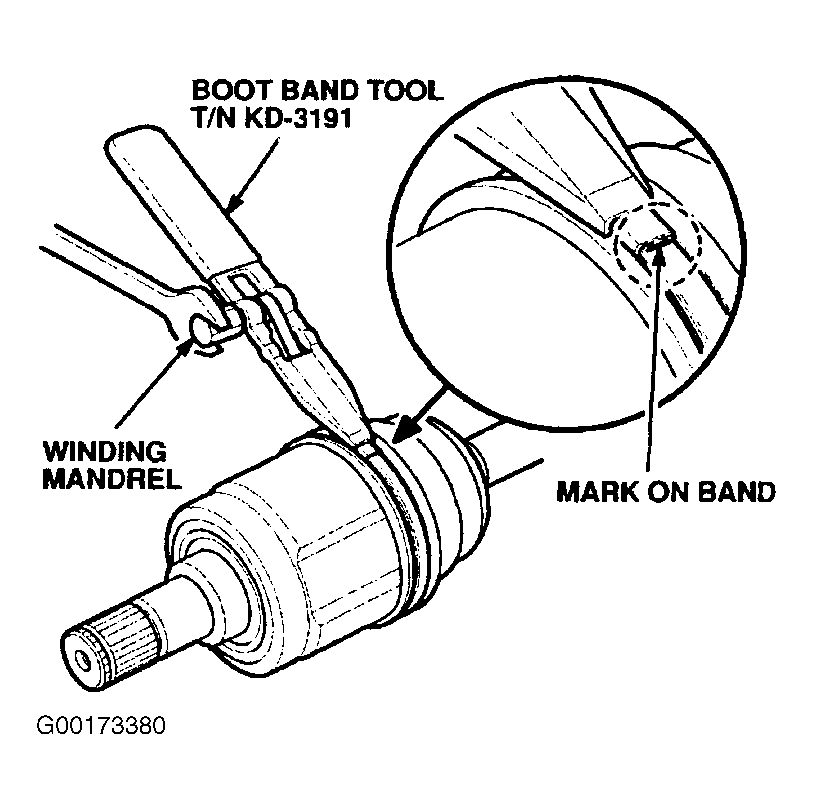

    Fig 3: Boot Band Tool
    G00173380
  9. Take up the slack in the boot band by hand, then slowly turn the winding mandrel with a wrench. Tighten the band until the mark you made in step  7 meets the edge of the clip.
  10. Raise up the boot band tool to bend the free end of the band 90°, then center-punch the clip to hold the band temporarily. See Fig 4 .

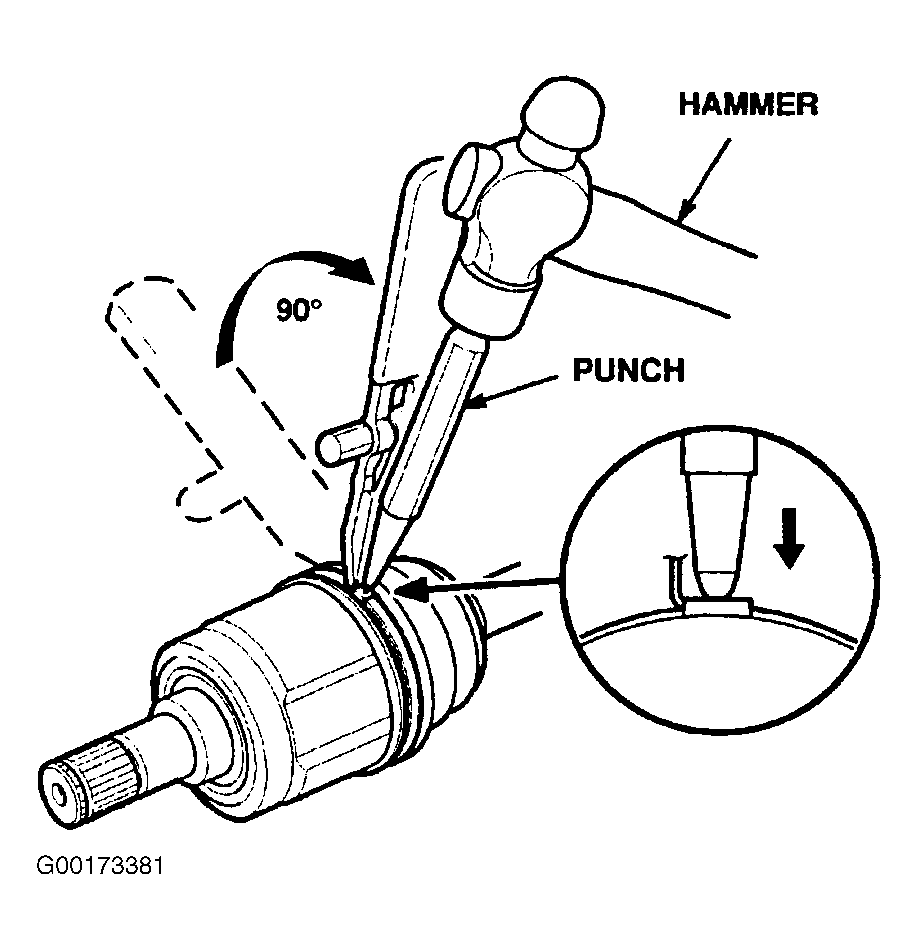

    Fig 4: Center Punching the Clip
    G00173381
  11. Unwind the boot band tool, and cut off the excess 5 to 10 mm (0.2 to 0.4 in.) from the clip. See Fig 5 .

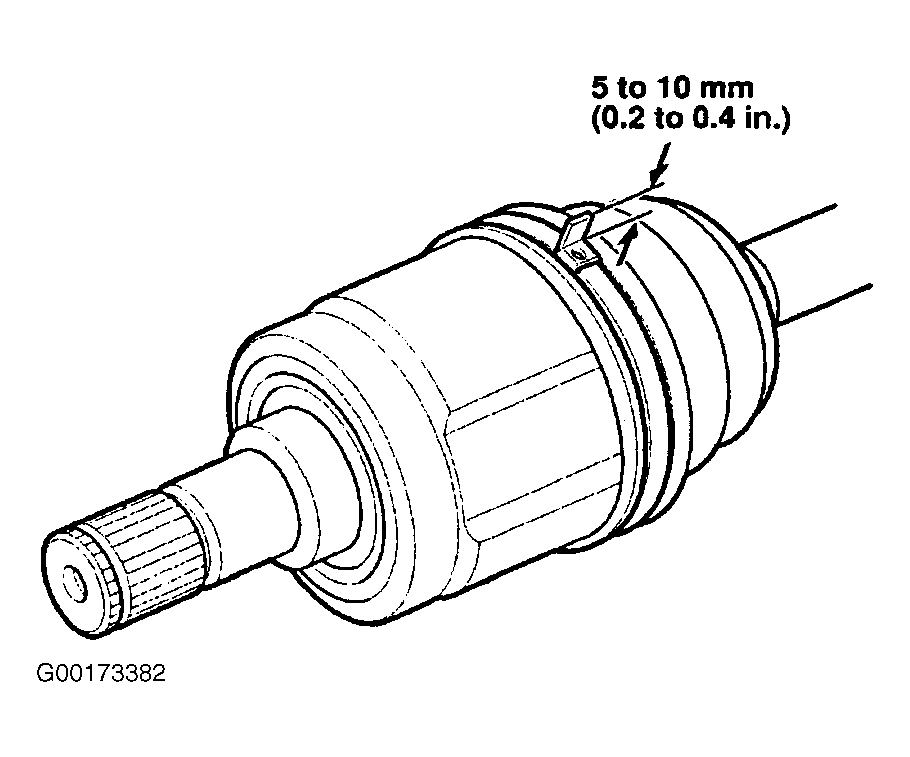

    Fig 5: Measuring & Removing Excess
    G00173382
  12. Secure the end of the boot band by tapping it down over the clip with a hammer. See Fig 6 .

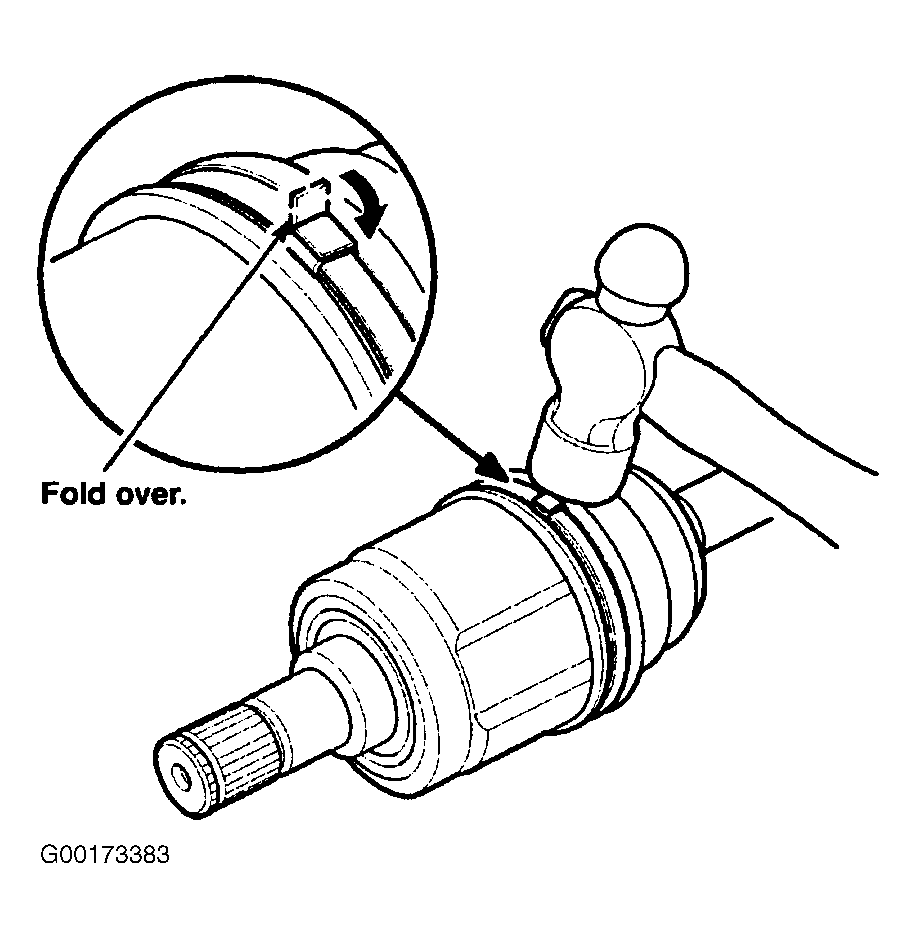

    Fig 6: Securing the Boot Band
    G00173383
  13. Make sure that the boot band and clip do not interfere with anything and that the band does not move.
  14. If necessary, repeat steps  5 through  13 to install the boot band on the small end of the boot.
