INTEGRA SLIP RIMG TEST - CORRECTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): ASN 1293-06, Date of Issue: December, 1993

1990-93 INTEGRA SLIP RING TEST

Model(s): 1990-93 Acura Integra

Group: Electrical

Bulletin No.: ASN 1293-05

Date: December, 1993

SERVICE INFORMATION

One of the wire colors is wrong in the slip ring test in the 1990-93 Integra S/Ms. Step 3 should read:

There should be continuity between the BLU/RED and D terminals, and the LT GRN/BLK and E terminals, as you turn the slip ring.

If you look at the layout of the two slip ring connectors, you can easily understand the mistake. It seems logical to go from one center terminal to the other, but that's not the way the circuit goes. See Fig 1 .

Make this correction on these pages:

INTEGRA S/M and PAGE

1990 / 23-205

1991 / 23-221

1992 / 23-229

1993 / 23-231

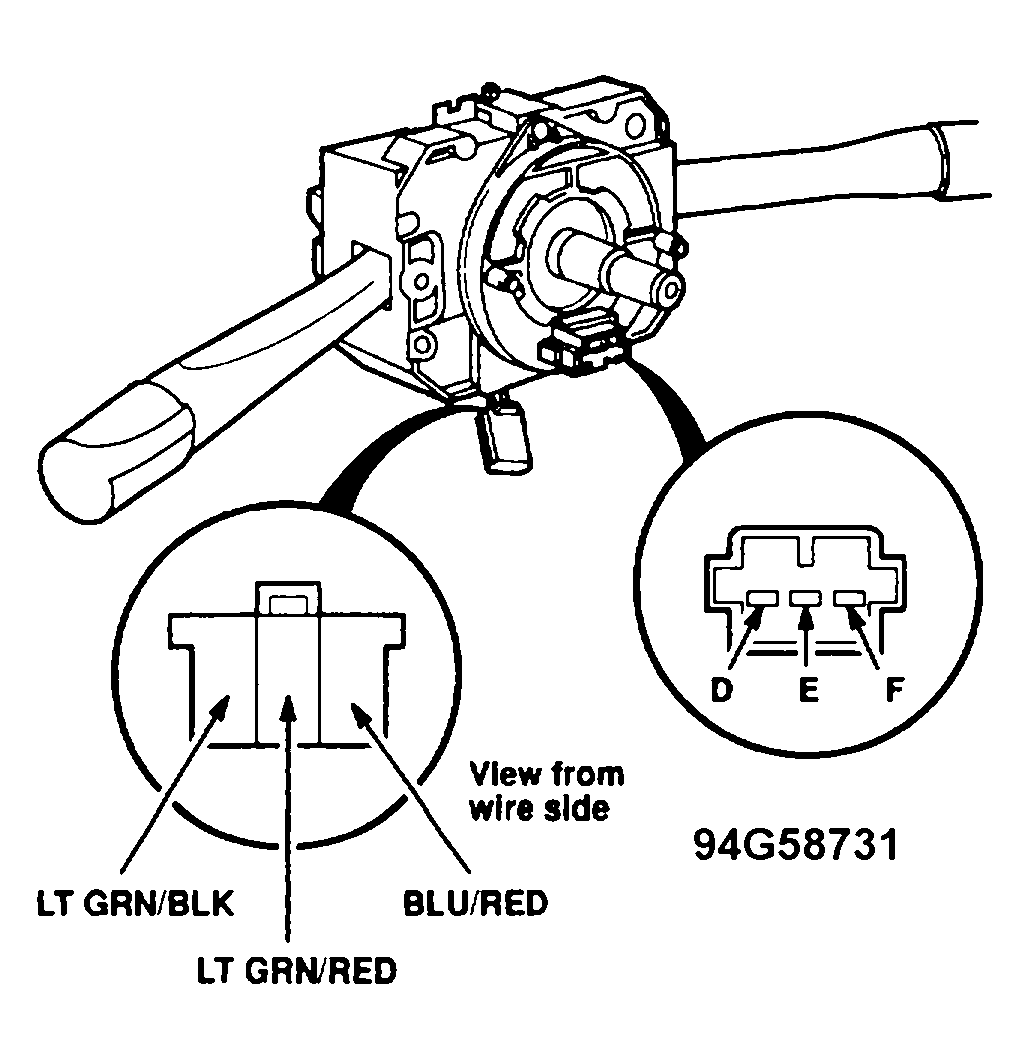

Fig 1: Terminal/Connector Identification
