Door Latch Switch Test

Remove the door trim panel.
Disconnect the 3-P connector from the switch see Fig 2 .
Check for continuity between the terminals in each door position, see Fig 1 .

Fig 1: Door Latch Switch Terminal Chart

G50F12539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

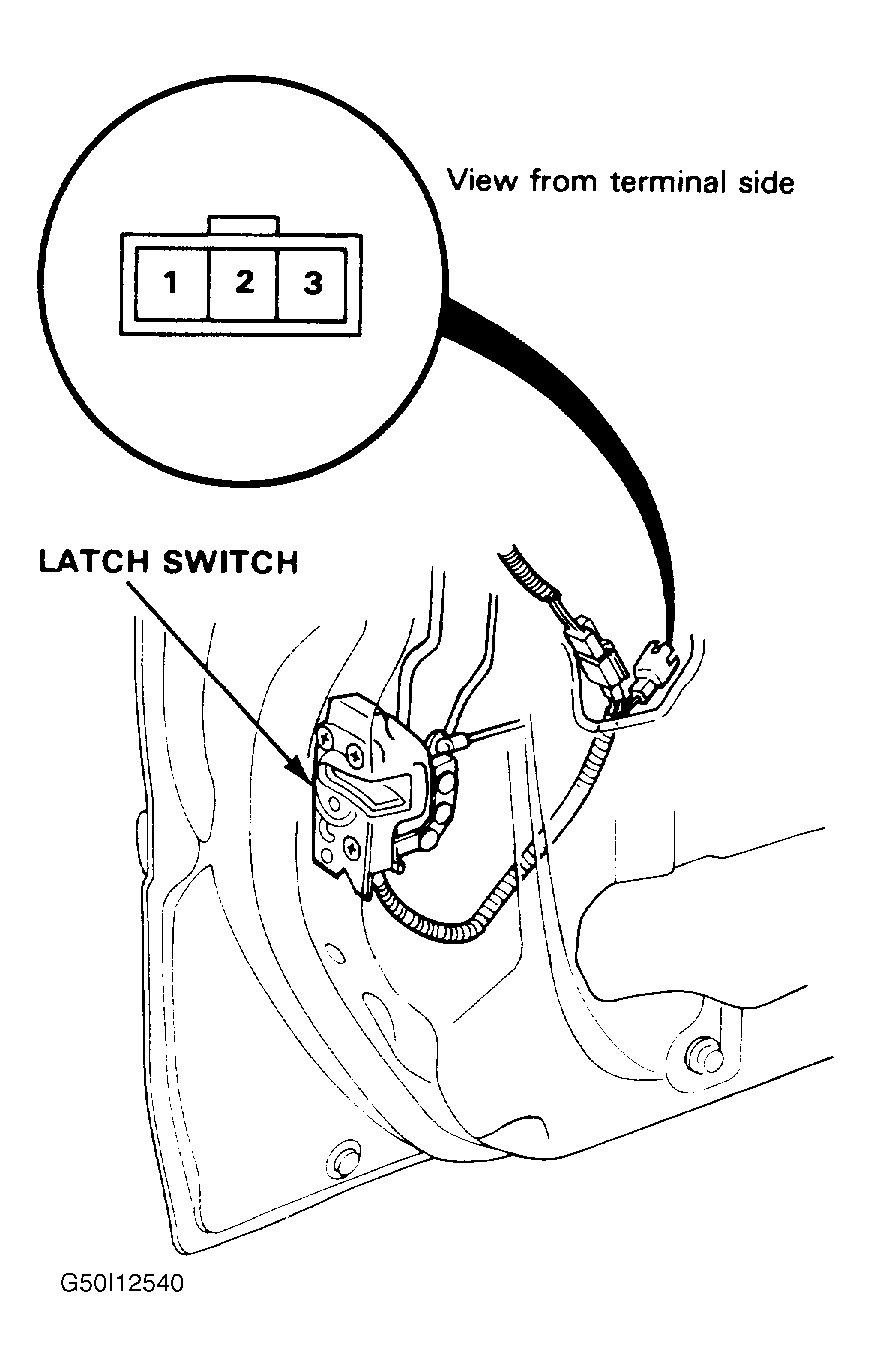

Fig 2: Door Latch Switch

G50I12540

Courtesy of AMERICAN HONDA MOTOR CO., INC.
