Removal (Vigor)

Disconnect battery ground cable. Remove steering column covers. Remove bulb/socket from key light case by turning socket 45 degrees. Remove screw and key light case from lock body.
Turn ignition switch to "I" position. Push pin in and remove lock cylinder from lock body. See Fig 1 and Fig 2.

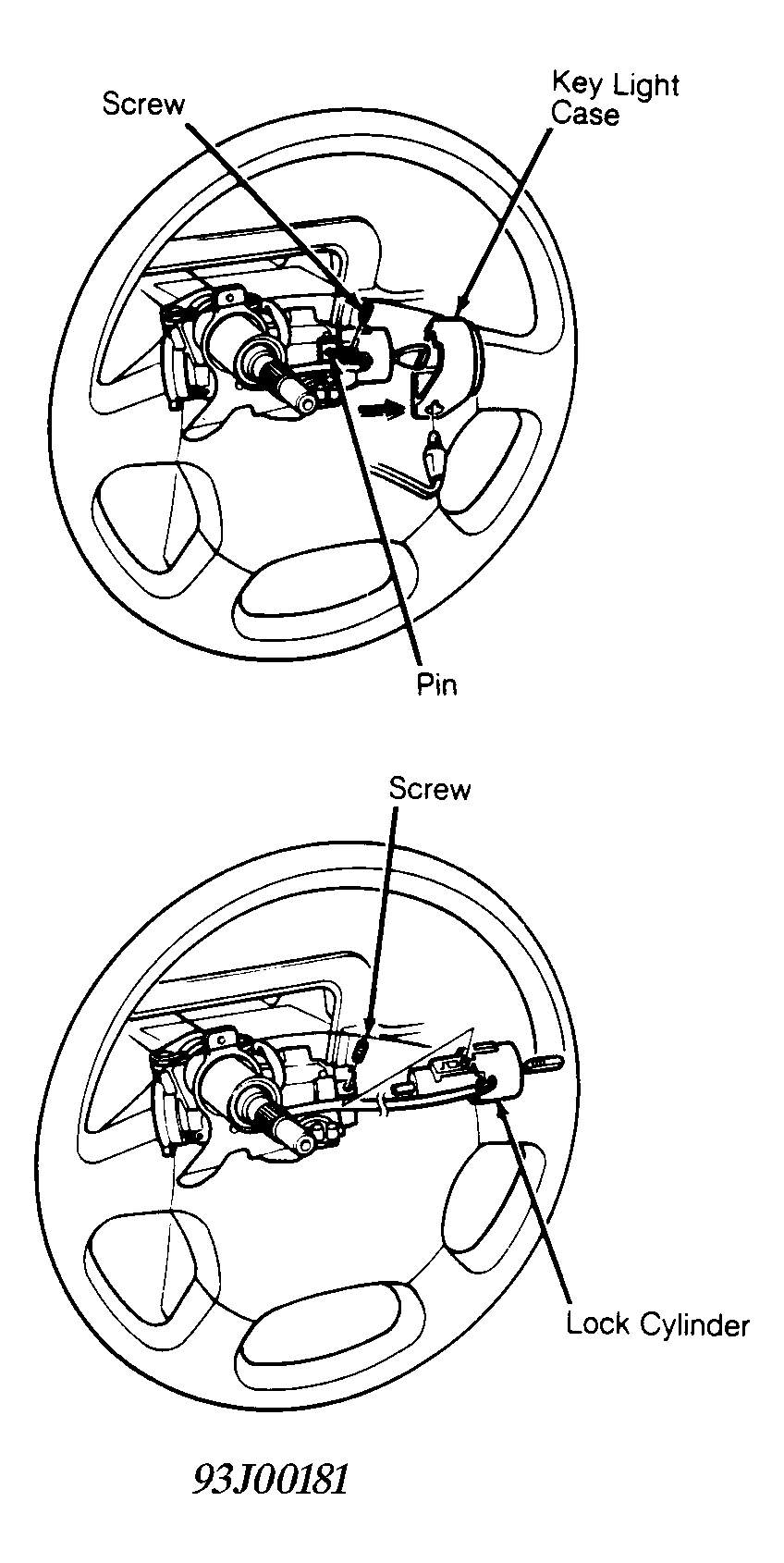

Fig 1: Removing Lock Cylinder (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

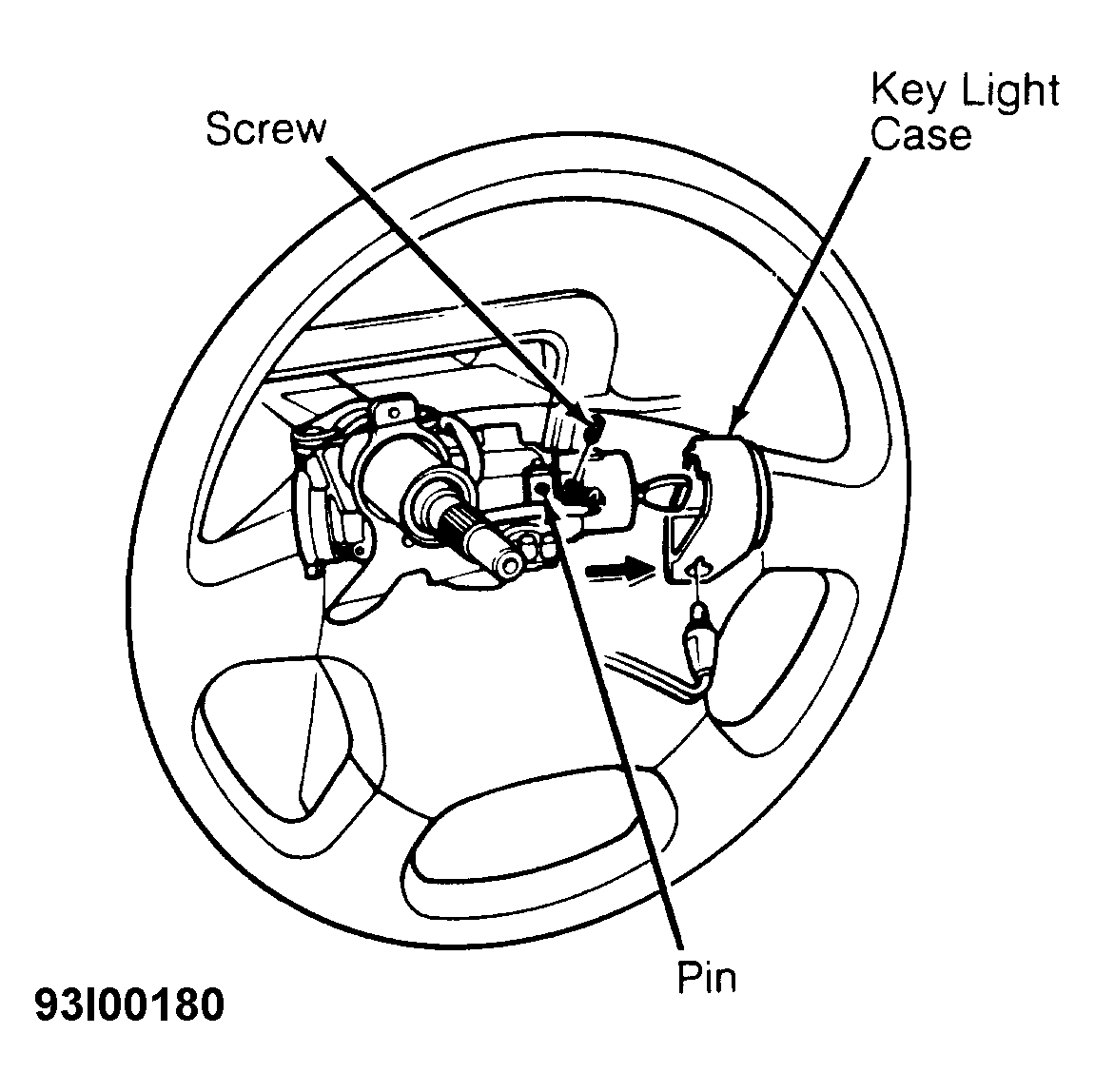

Fig 2: Removing Lock Cylinder (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
