Coolant Temperature Sensor

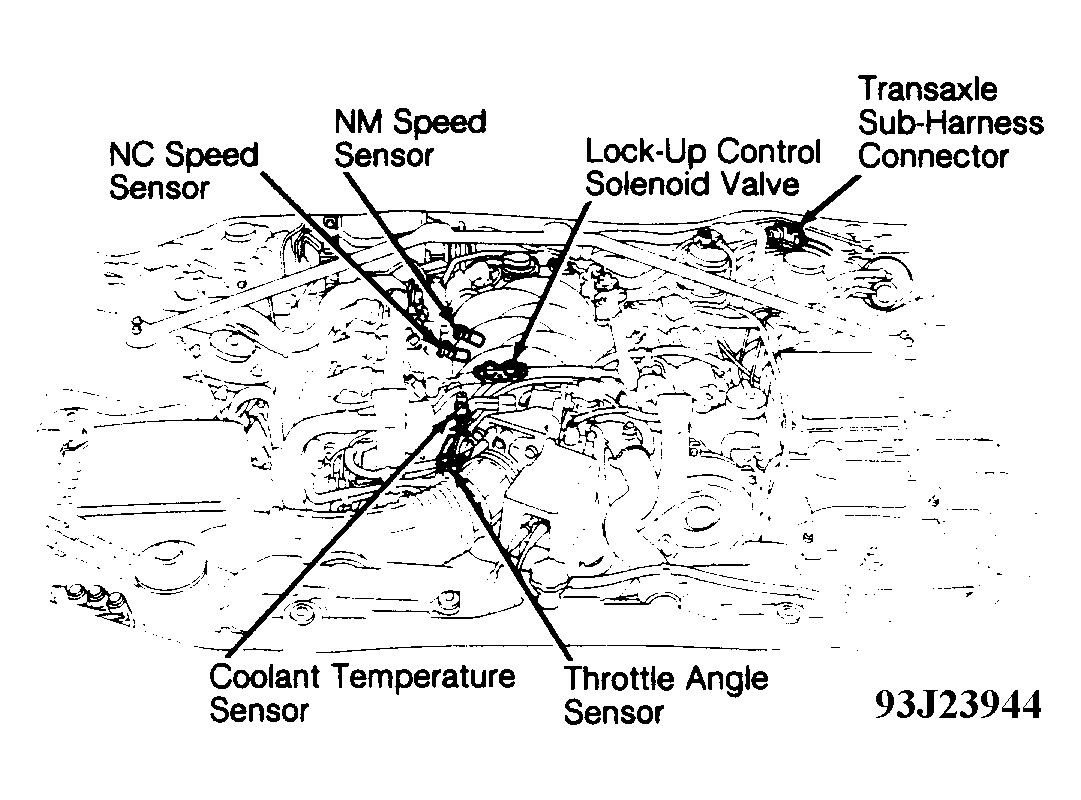

- Coolant temperature sensor is located in coolant pipe, near throttle body and contains a Red /White wire and Green /White wire in electrical connector. See Figure .
- Disconnect electrical connector from coolant temperature sensor. Using ohmmeter, check coolant temperature sensor resistance in accordance with coolant temperature. See Fig 1 . Replace coolant temperature sensor if resistance is not as specified.
