Lock-Up Control Solenoid Valves

1. Lock-up control solenoid valves are located on top of transaxle. See Figure . Disconnect transaxle sub-harness connector.
2. Using ohmmeter, check resistance between terminal No. 1 (solenoid valve "A") or terminal No. 2 (solenoid valve "B") and body ground. See Fig 1 .
3. Resistance should be 12-24 ohms. If resistance is not within specification, disconnect lock-up control solenoid valve connector from transaxle sub-harness at the solenoid valves. Note terminal identification on lock-up control solenoid valve connector. See Fig 1 .
4. Using ohmmeter, check resistance between terminal No. 1 (solenoid valve "A") or terminal No. 2 (solenoid valve "B") of lock-up control solenoid valve connector and body ground.
5. Resistance should be 12-24 ohms. If resistance is okay, replace transaxle sub-harness. Replace lock-up control solenoid valve assembly if resistance of either solenoid valve is not within specification.
6. Check lock-up control solenoid valve operation. Apply battery voltage to terminal No. 1 (solenoid valve "A") or terminal No. 2 (solenoid valve "B") of lock-up control solenoid valve connector. Ensure solenoid valve body is grounded.
7. Clicking sound should be heard, indicating solenoid valve operation. Replace lock-up control solenoid valve assembly if either solenoid valve fails to operate.

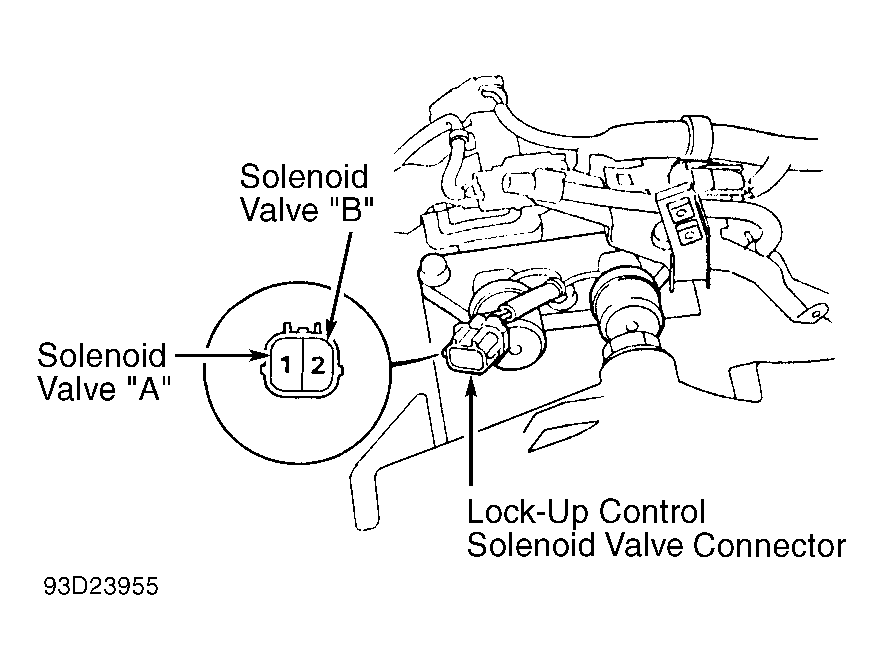

Fig 1: Lock-Up Control Solenoid Valve Terminals (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

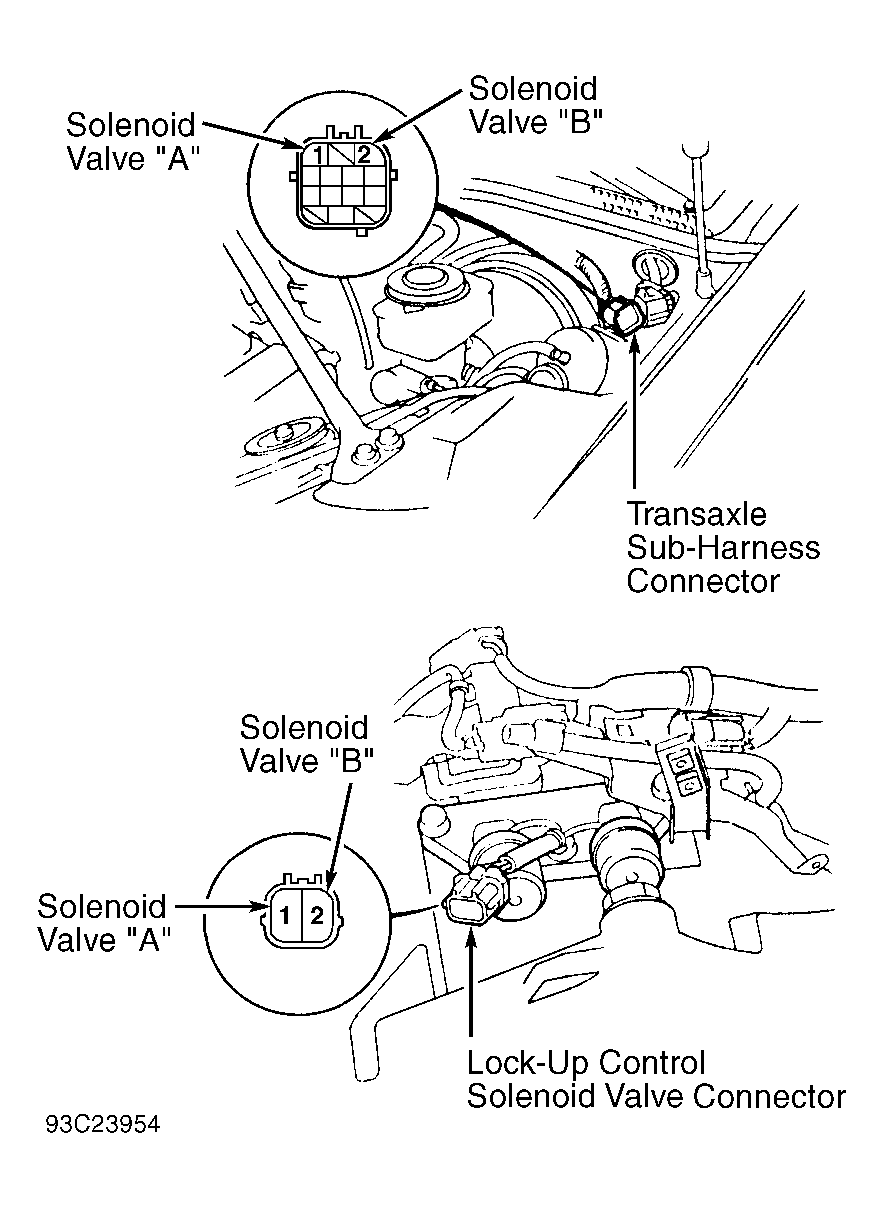

Fig 2: Lock-Up Control Solenoid Valve Terminals (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
