Power Window Key Off Timer System
Power Window Key Off Timer System

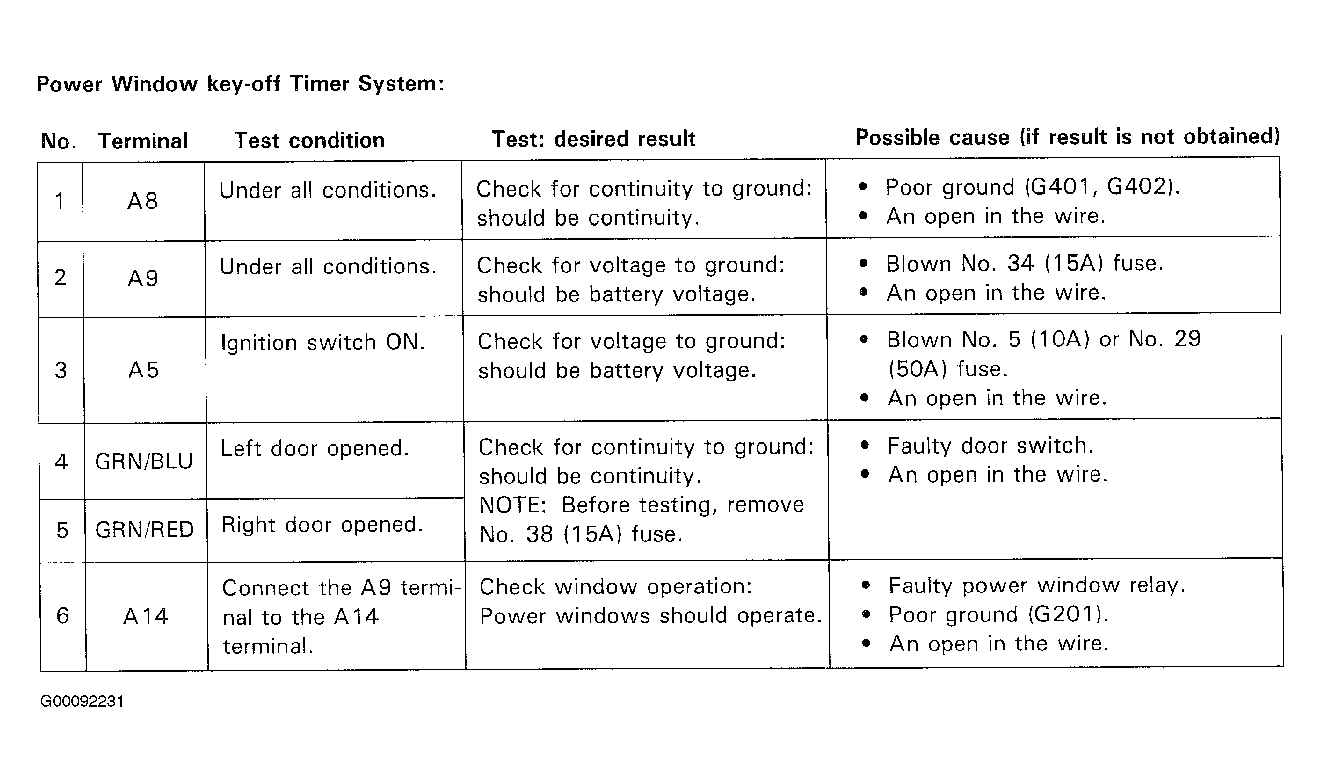

Fig 1: Power Window Key Off Timer System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
