DTC 2-1: Steering Angle Sensor System

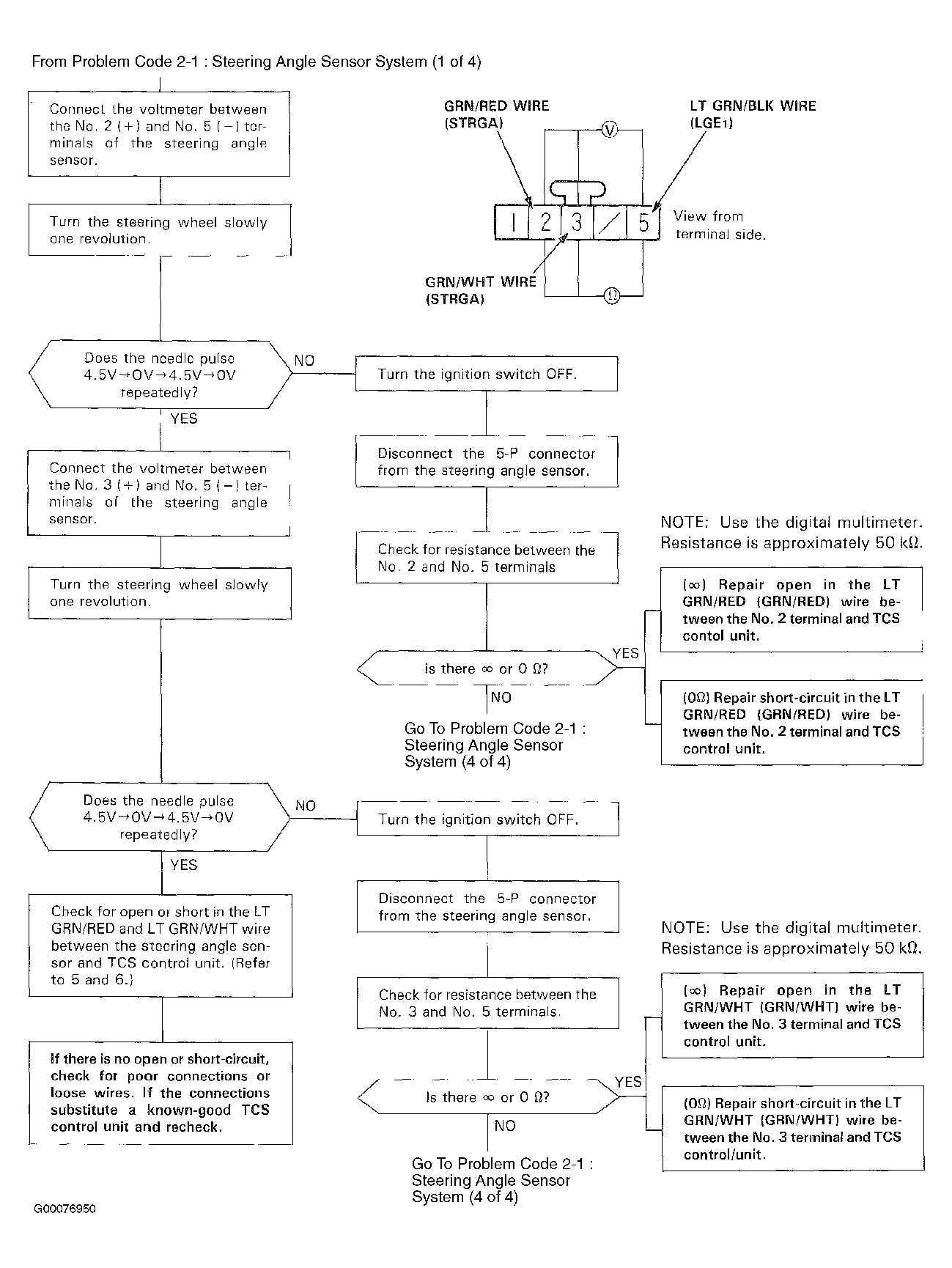

Fig 1: Problem Code 2-1: Steering Angle Sensor System (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

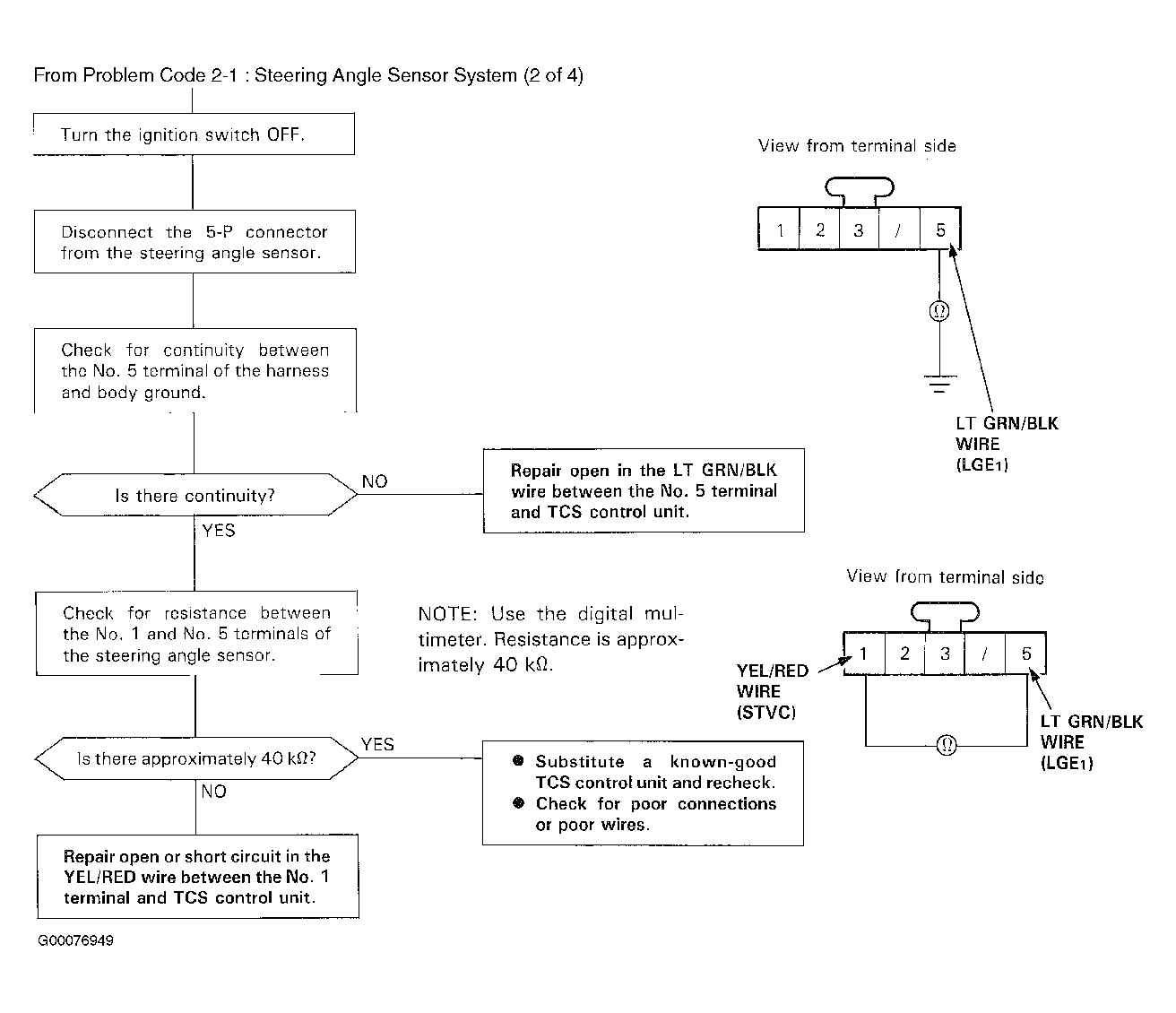

Fig 2: Problem Code 2-1: Steering Angle Sensor System (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

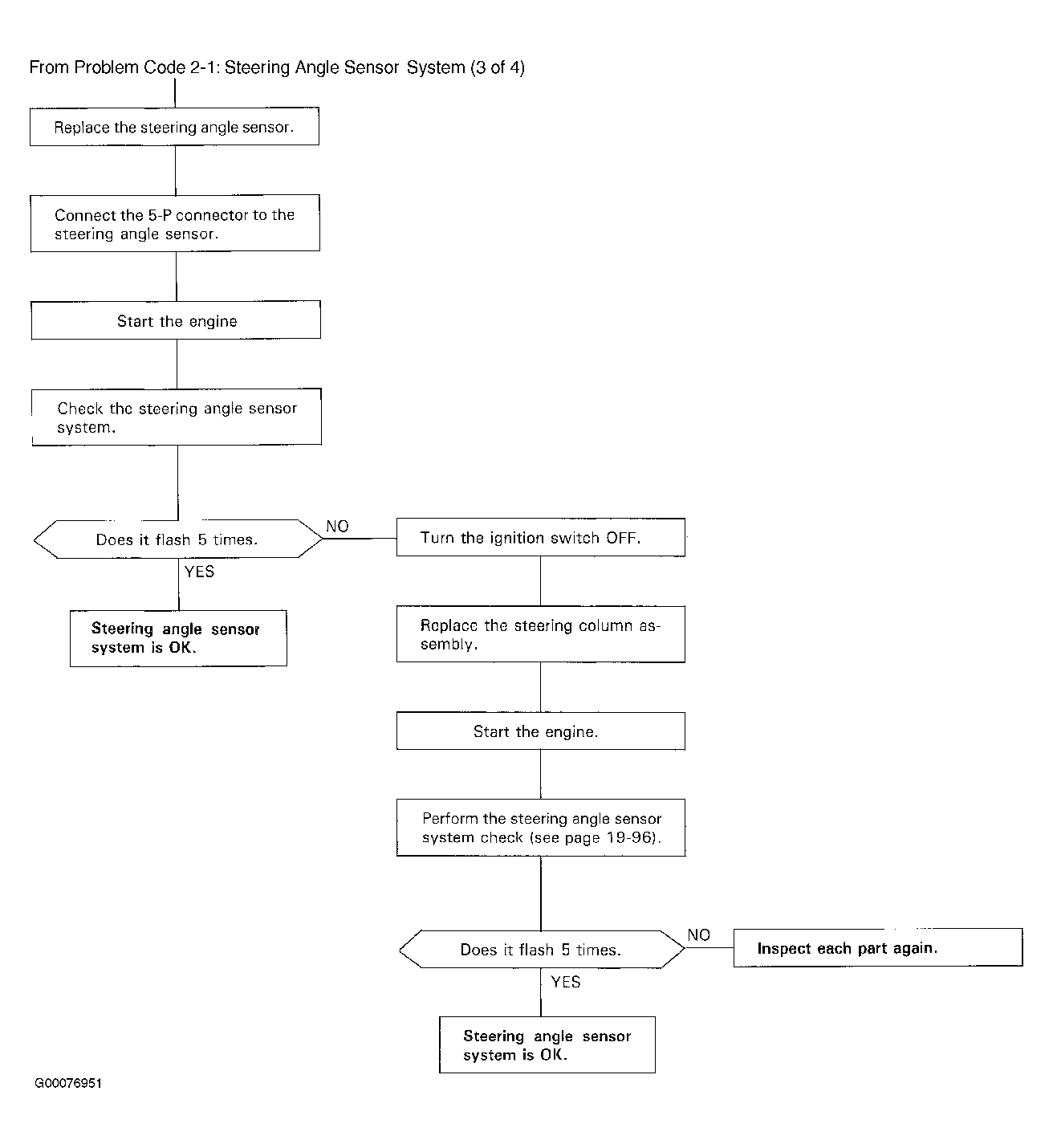

Fig 3: Problem Code 2-1: Steering Angle Sensor System (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

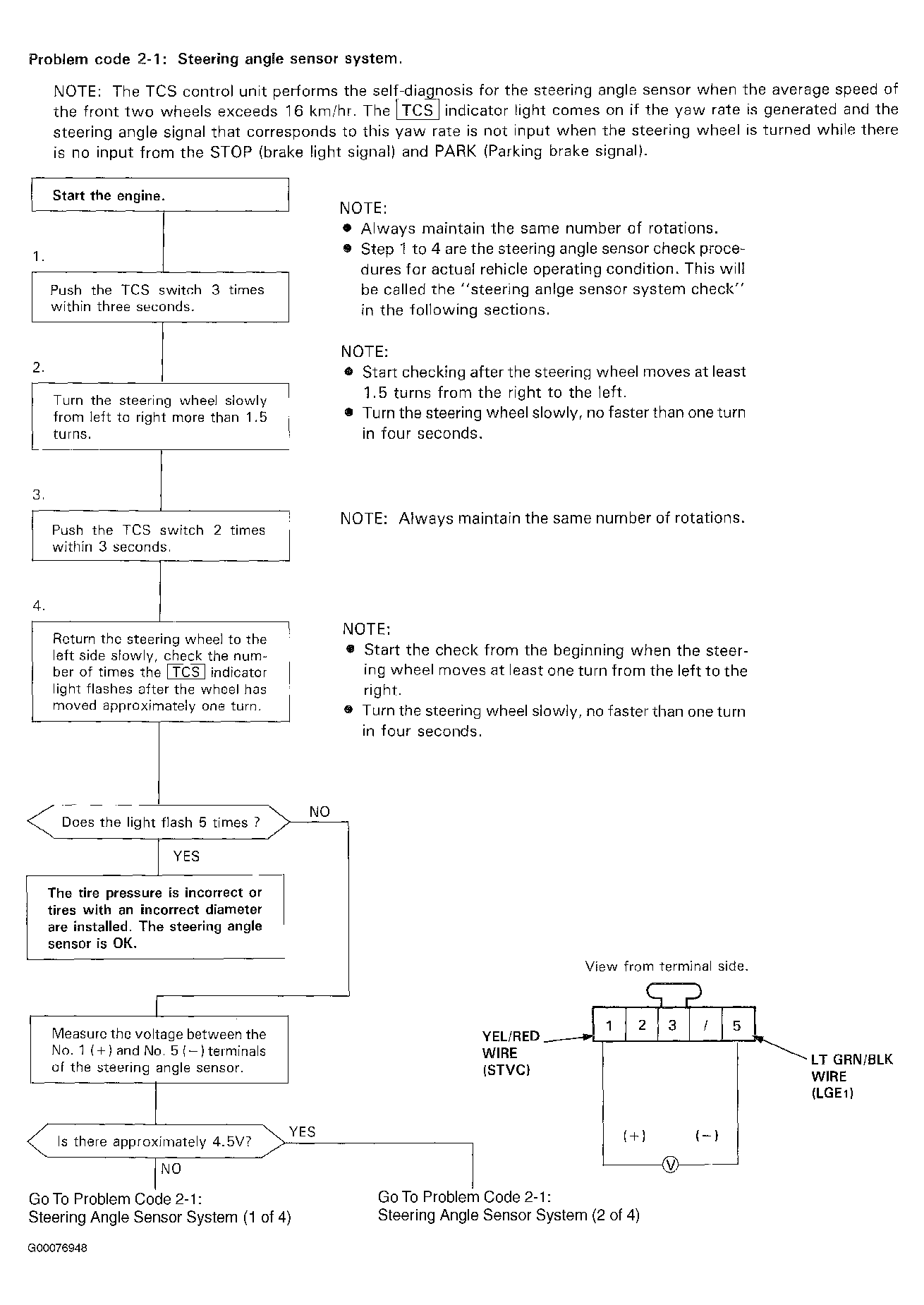

Fig 4: Problem Code 2-1: Steering Angle Sensor System (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
