Alternator & Regulator Test

1. First make sure you have a good battery, and alternator belt is tight and in good condition. Also make sure connections at alternator and main fuses are good. Next, check No. 2 (15 A) fuse in dash fuse box and No. 18 (20 A) fuse in main fuse box. (If blown, charge system light will come on even if system's working properly.)
2. Disconnect 4-P connector from alternator. With ignition switch on, there should be battery voltage between IG (BLK/YEL) terminal and body ground, and between S (YEL/BLU) terminal and body ground. See Fig 1 .
3. If there is battery voltage, go to next step. If there is no voltage, check for blown No. 2 (15 A) fuse in dash fuse box or No. 18 (20 A) fuse in main fuse box and/or an open in BLK/YEL wire between dash fuse box and voltage regulator, or YEL/BLU wire between main fuse box and voltage regulator.
   NOTE: Test use SUN VAT-40 (or equivalent). See Fig 2 .

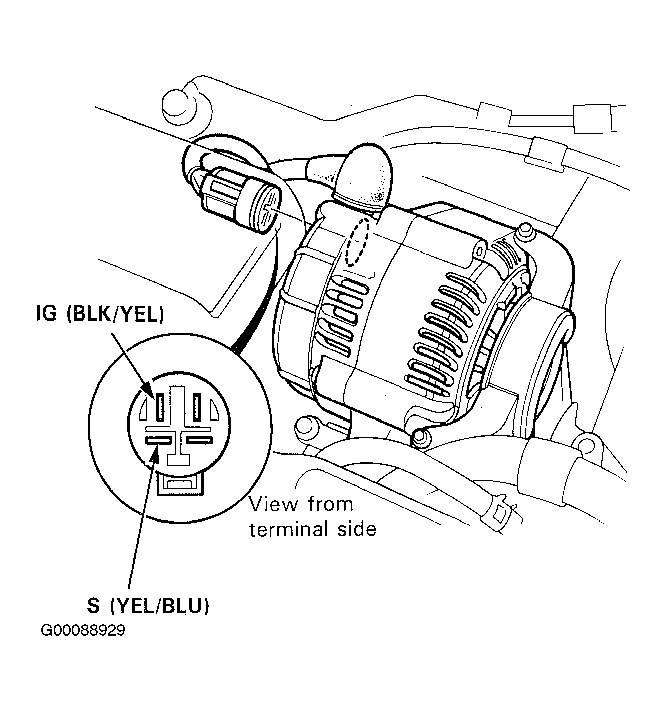

   Fig 1: Identifying Alternator 4-P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

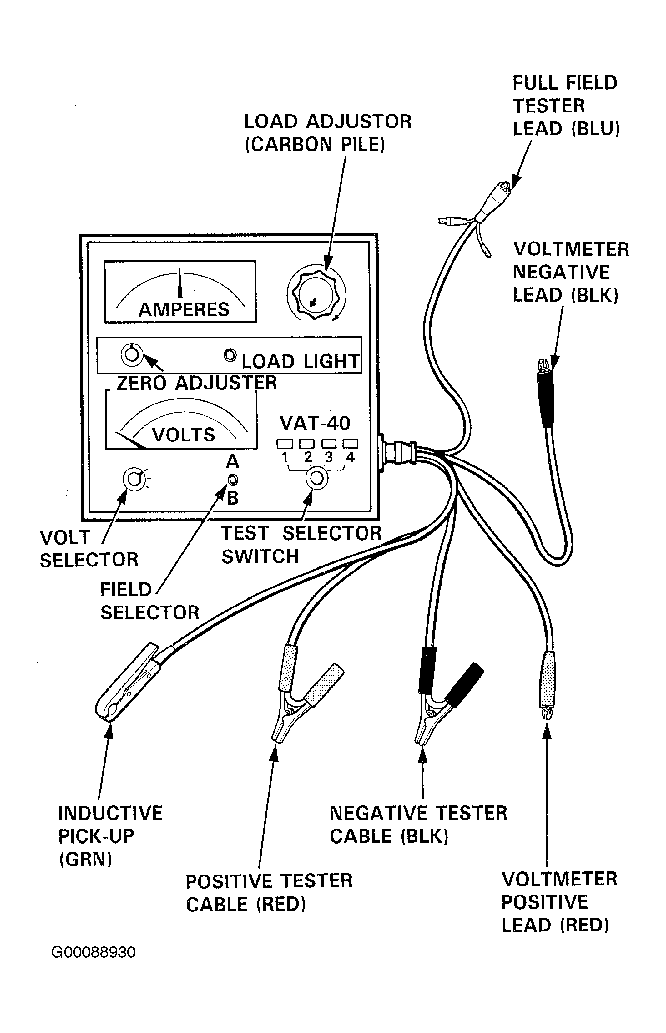

   Fig 2: Identifying SUN VAT-40 Tester Components

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Following the illustrations instructions, connect SUN VAT-40 (or equivalent) and turn test selector switch to No. 1 position. See Fig 2 .
5. Attach positive tester cable and voltmeter positive lead to jump start terminal at main fuse box. See Fig 3 .
6. Attach negative tester cable and voltmeter negative lead to top of throttle body. See Fig 4 .
NOTE: The arrow points in opposite direction from alternator B terminal.
7. Attach inductive pick-up to B terminal at alternator. See Fig 5 and Fig 6 .
8. Start engine. Turn off all accessories, move selector switch to No. 2 position.
9. Raise engine speed to 2,000 RPM and hold (make sure cooling fans are off). Apply a "load" with carbon pile, so voltage drops to no less than 12 volts. Check maximum amperage reading and compare with chart. See Fig 7 . If amperage is "NORMAL" system is okay. Proceed to CHARGE SYSTEM LIGHT TEST  . If amperage is "ABNORMAL" go to next step.

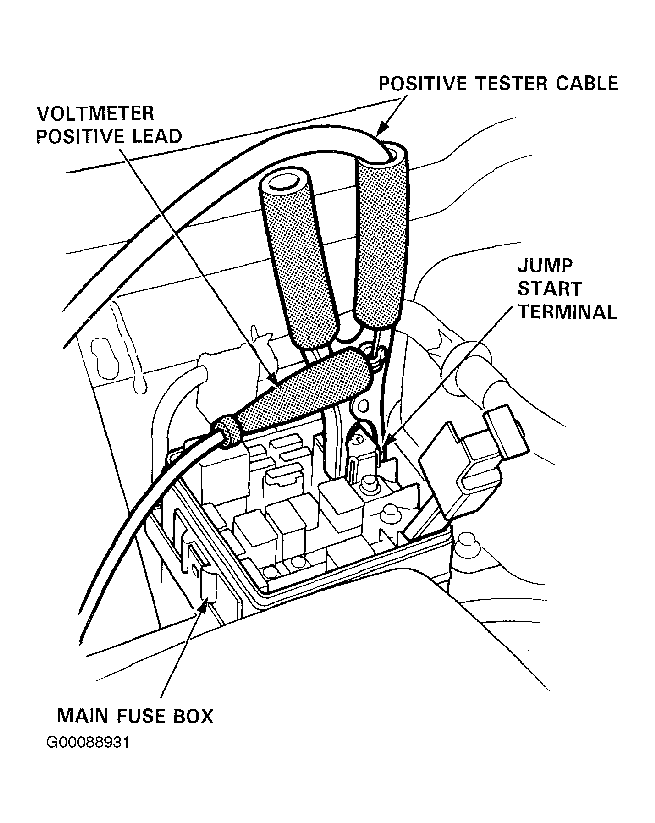

   Fig 3: Connecting Positive Tester Cable & Voltmeter Positive Lead

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

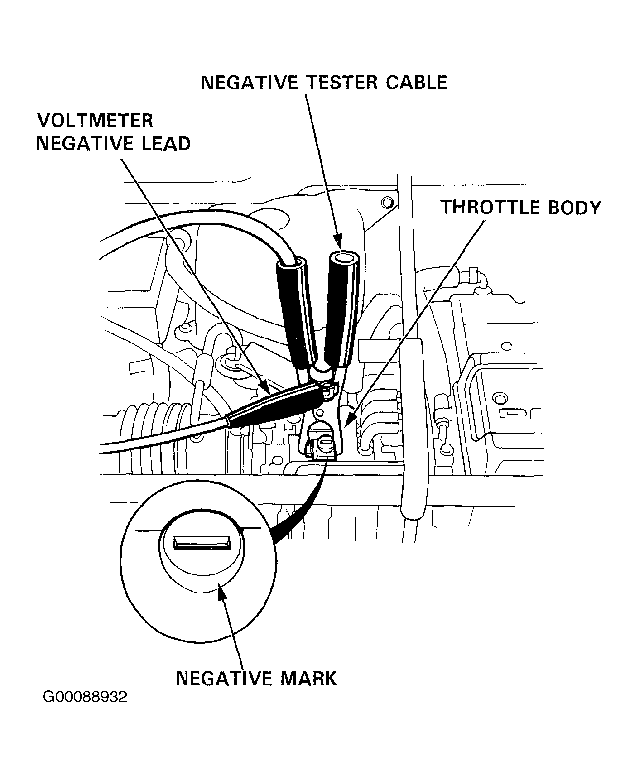

   Fig 4: Connecting Negative Tester Cable & Voltmeter Negative Lead

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

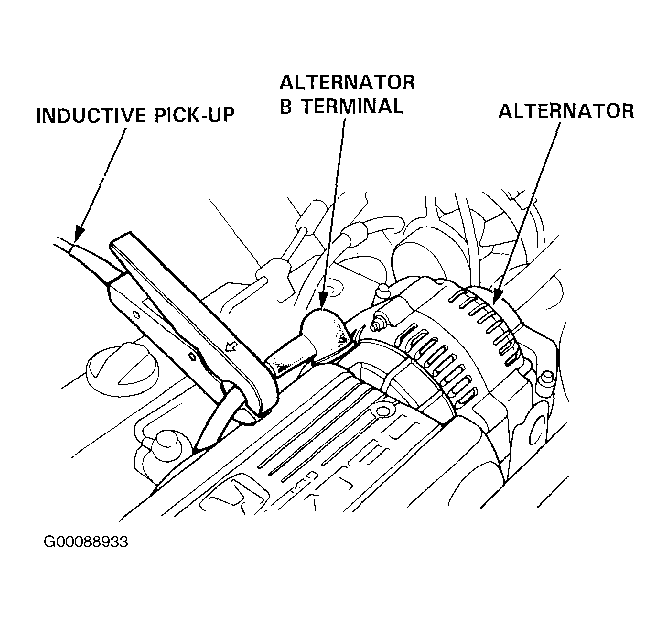

   Fig 5: Connecting Inductive Pick-Up

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 6: Identifying Inductive Pick-Up Connection Direction

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

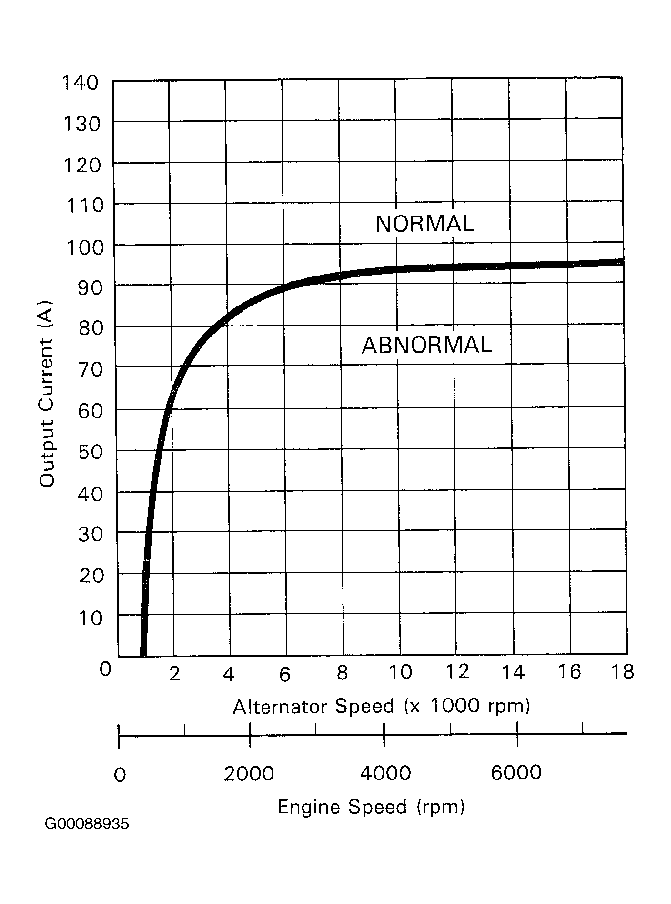

   Fig 7: Output Current Vs. Engine Speed Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Stop engine. Perform full field test by inserting full field tester lead into full field access hole at back of alternator. See Fig 8 .
11. Move test selector switch to No. 1 position.
12. Start engine and raise engine speed to 2,000 RPM and hold (make sure cooling fans are off).
CAUTION: The voltage will rise quickly when alternator is full fielded. Do not allow voltage to exceed 18 volts or damage to electrical system may result.
NOTE:
13. Switch field selector to "A (Ground)" position momentarily and check amperage reading. As an alternative, use a screwdriver and an ammeter to full field alternator. See Fig 9 . If amperage is within specification, replace regulator. If amperage is not within specification, replace alternator.

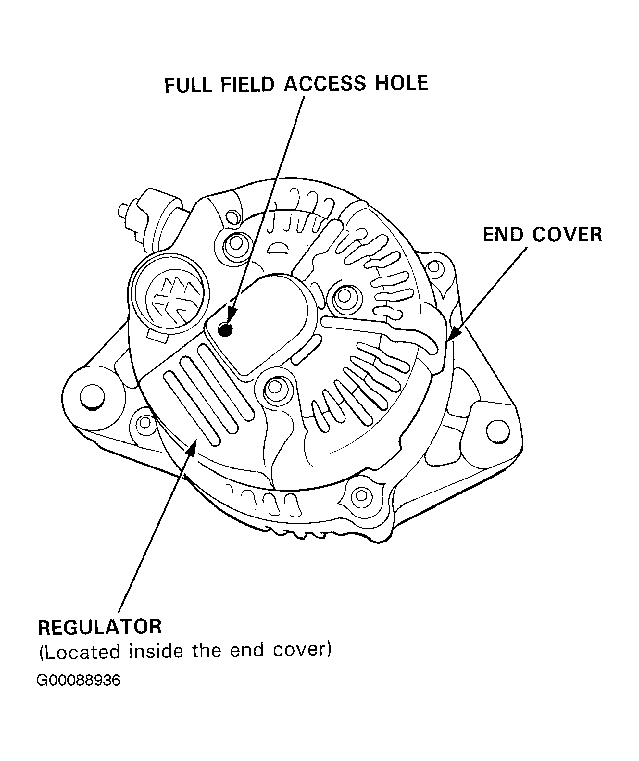

Fig 8: Performing Full Field Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.

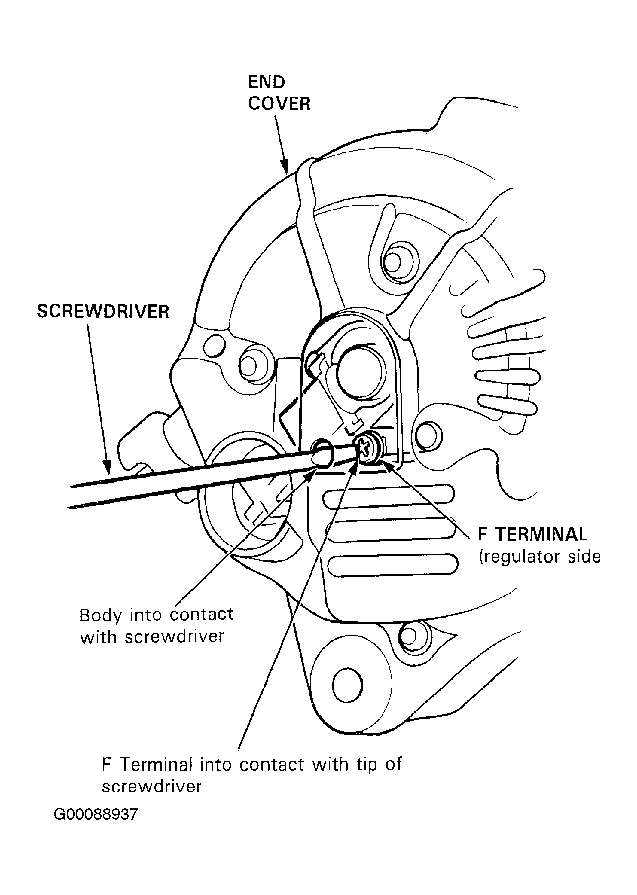

Fig 9: Full Field Test Using Screwdriver

Courtesy of AMERICAN HONDA MOTOR CO., INC.
