DTC 16: Fuel Injector

See Fig 1 -Fig 3 .

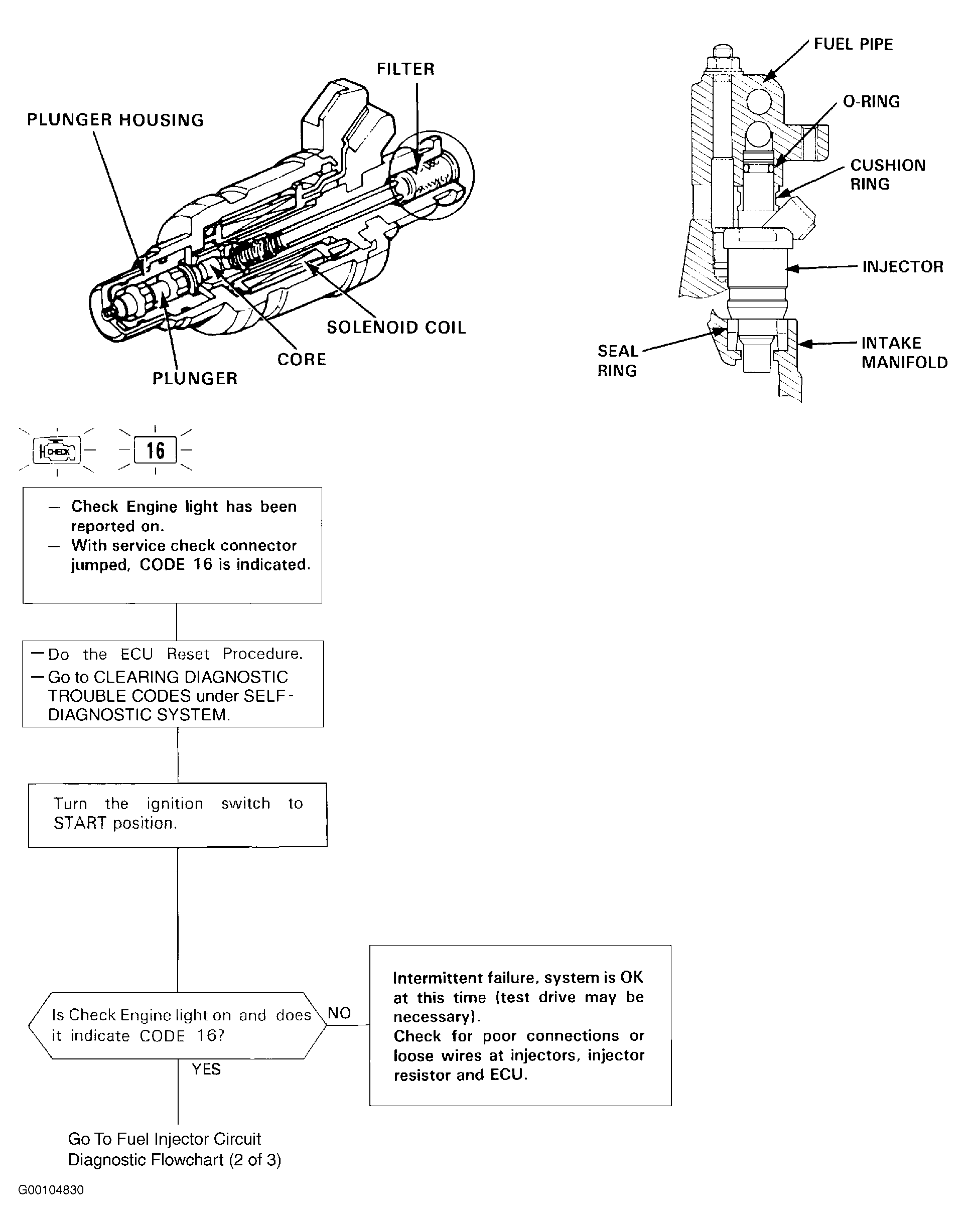

Fig 1: Fuel Injector Circuit Diagnostic Flowchart (1 Of 3)
G00104830Courtesy of AMERICAN HONDA MOTOR CO., INC.

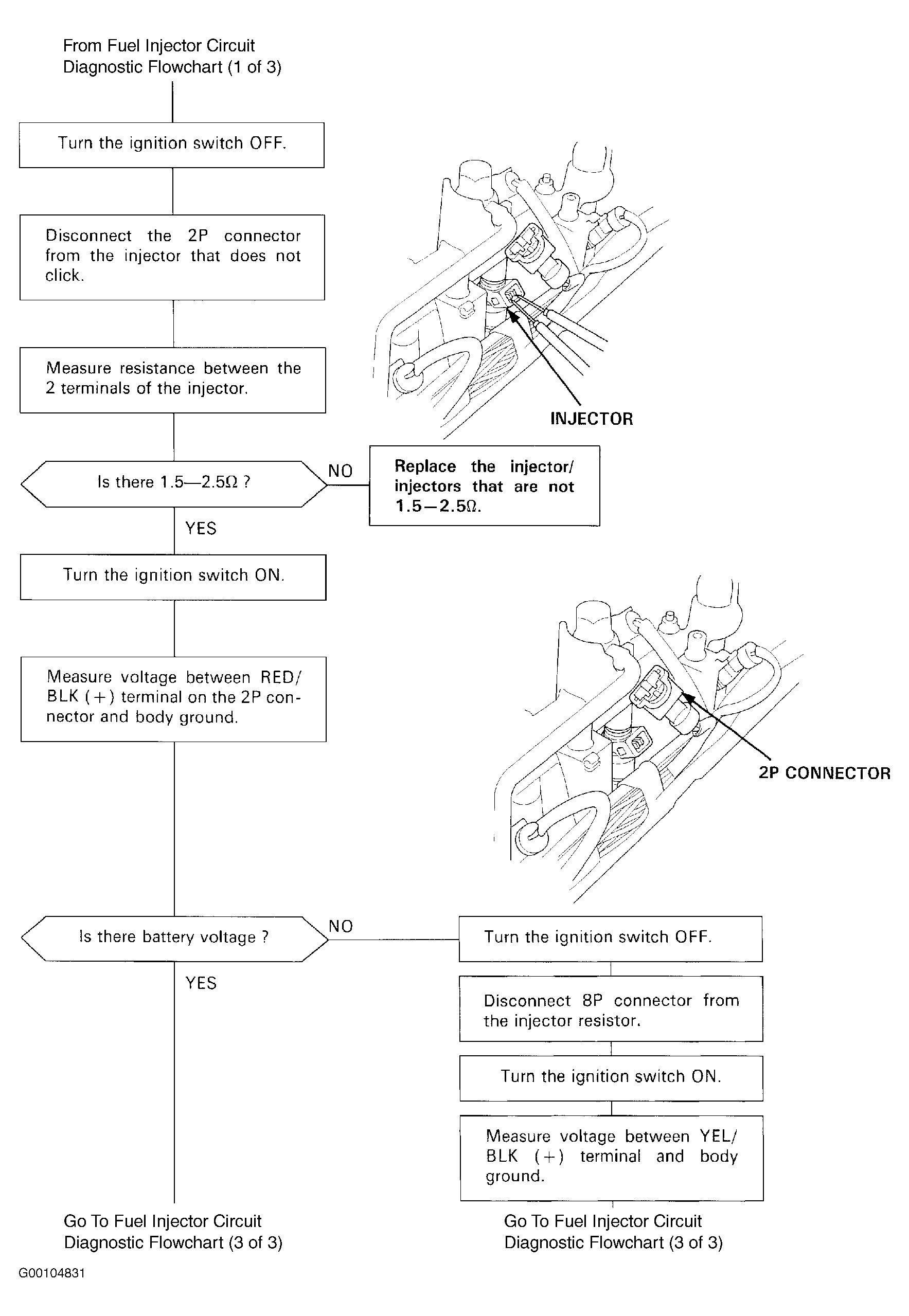

Fig 2: Fuel Injector Circuit Diagnostic Flowchart (2 Of 3)
G00104831Courtesy of AMERICAN HONDA MOTOR CO., INC.

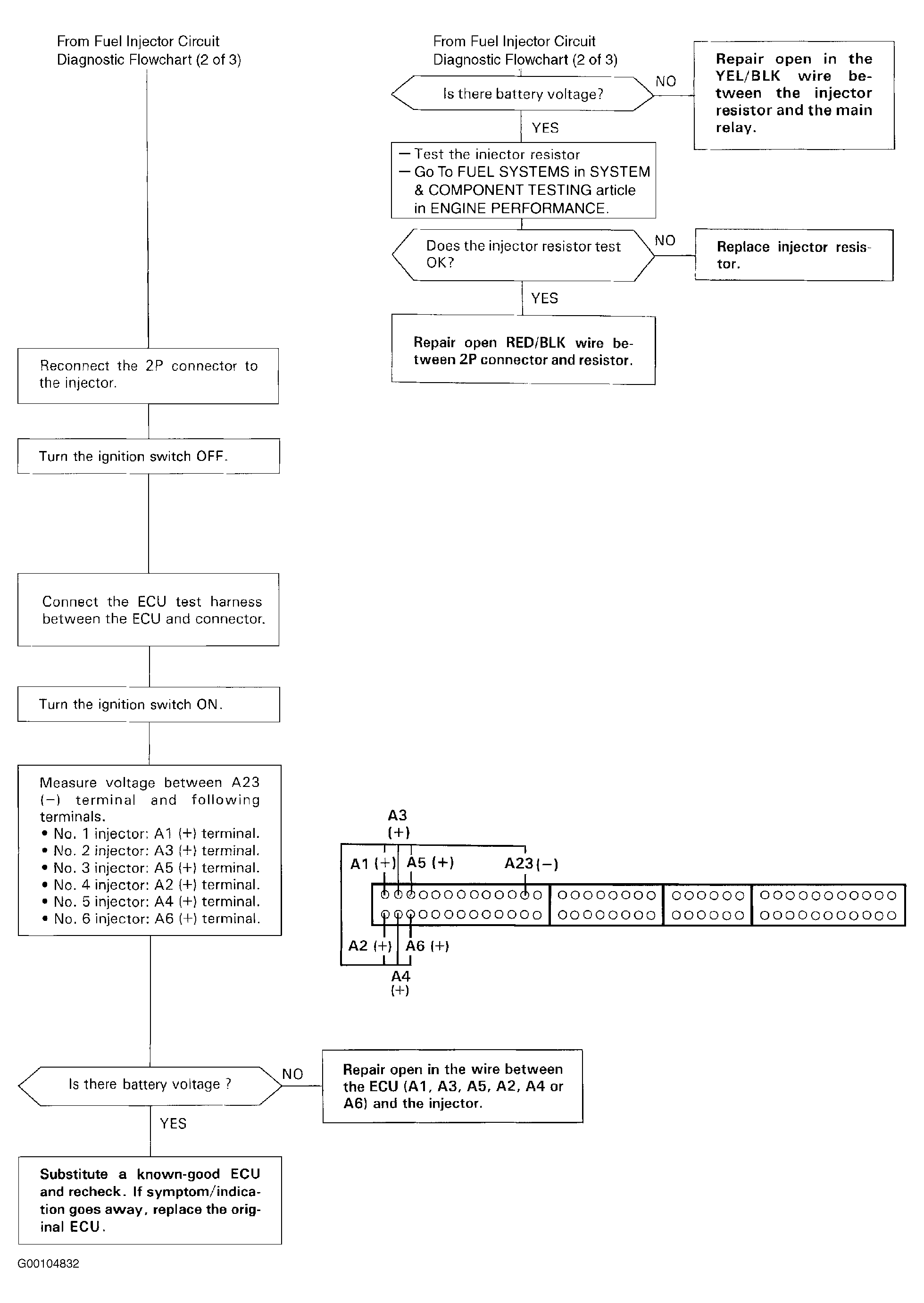

Fig 3: Fuel Injector Circuit Diagnostic Flowchart (3 Of 3)
G00104832Courtesy of AMERICAN HONDA MOTOR CO., INC.
