Air Conditioning Signal

This signals the PGM-FI ECU when there is a demand for cooling from the air conditioning system. See Fig 1 and Fig 2 .

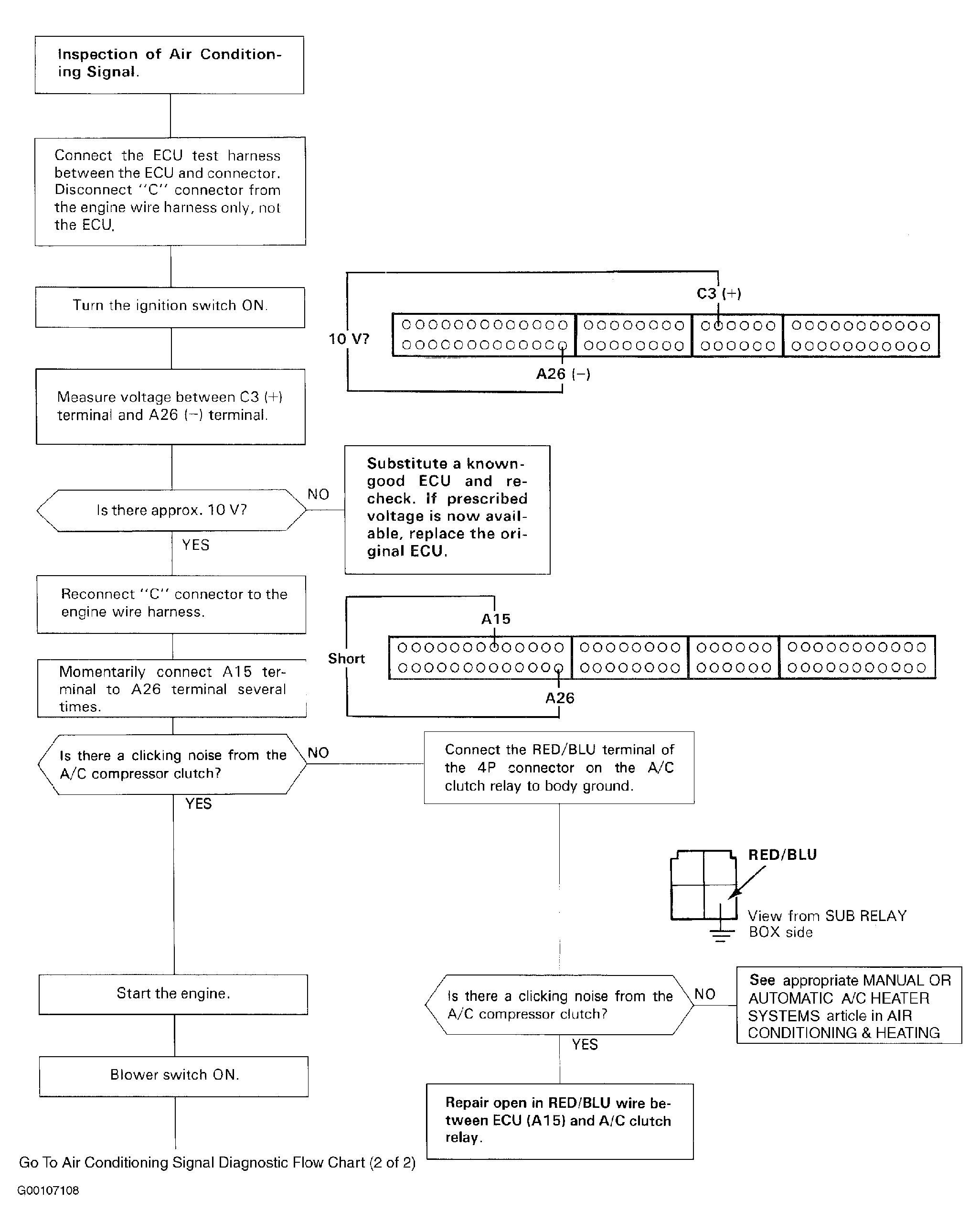

Fig 1: Air Conditioning Signal Diagnostic Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

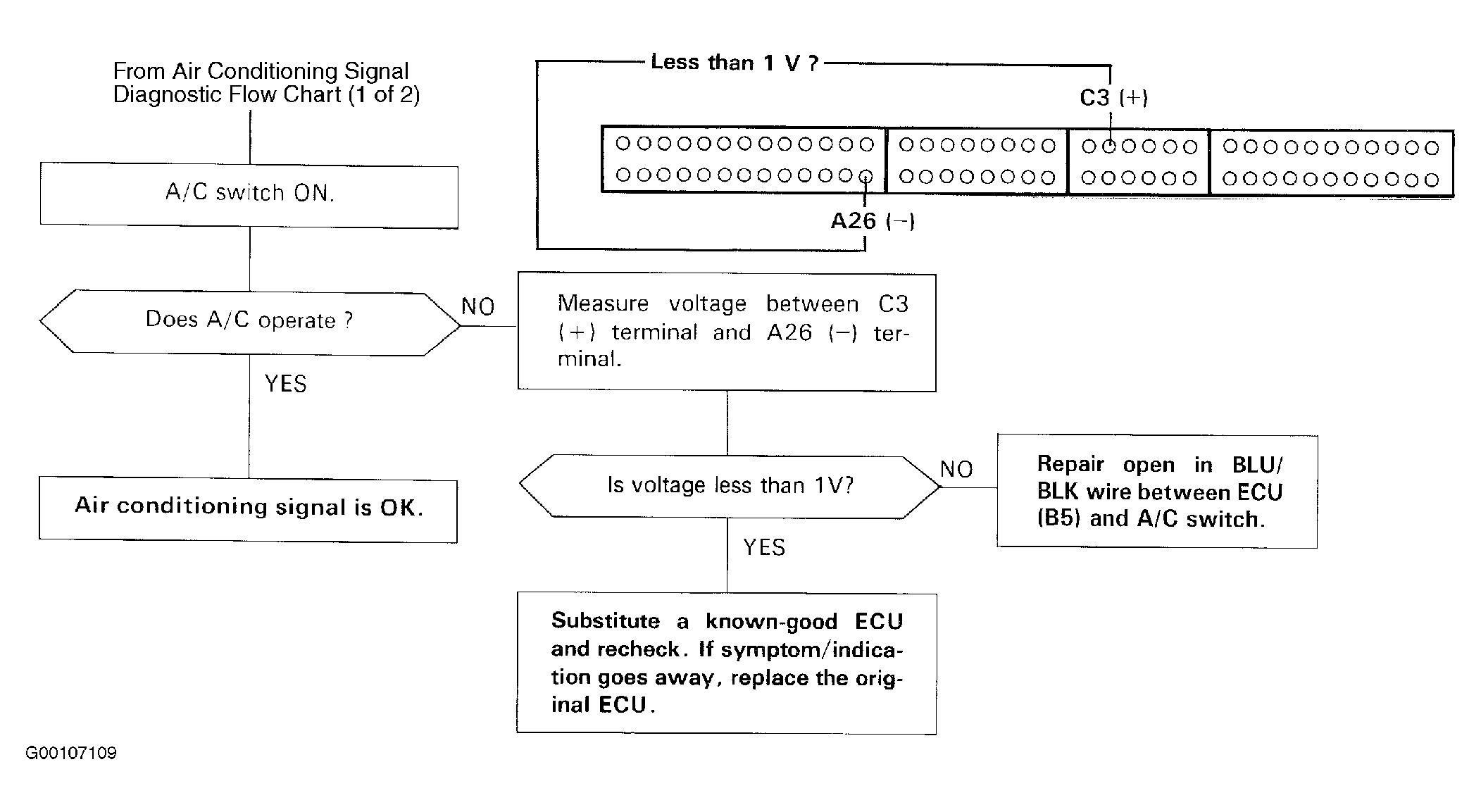

Fig 2: Air Conditioning Signal Diagnostic Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
