Problem Code 11, 12, 13 &14; Torque Sensor Related Problems
Problem Code 11, 12, 13 &14; Torque Sensor Related Problems

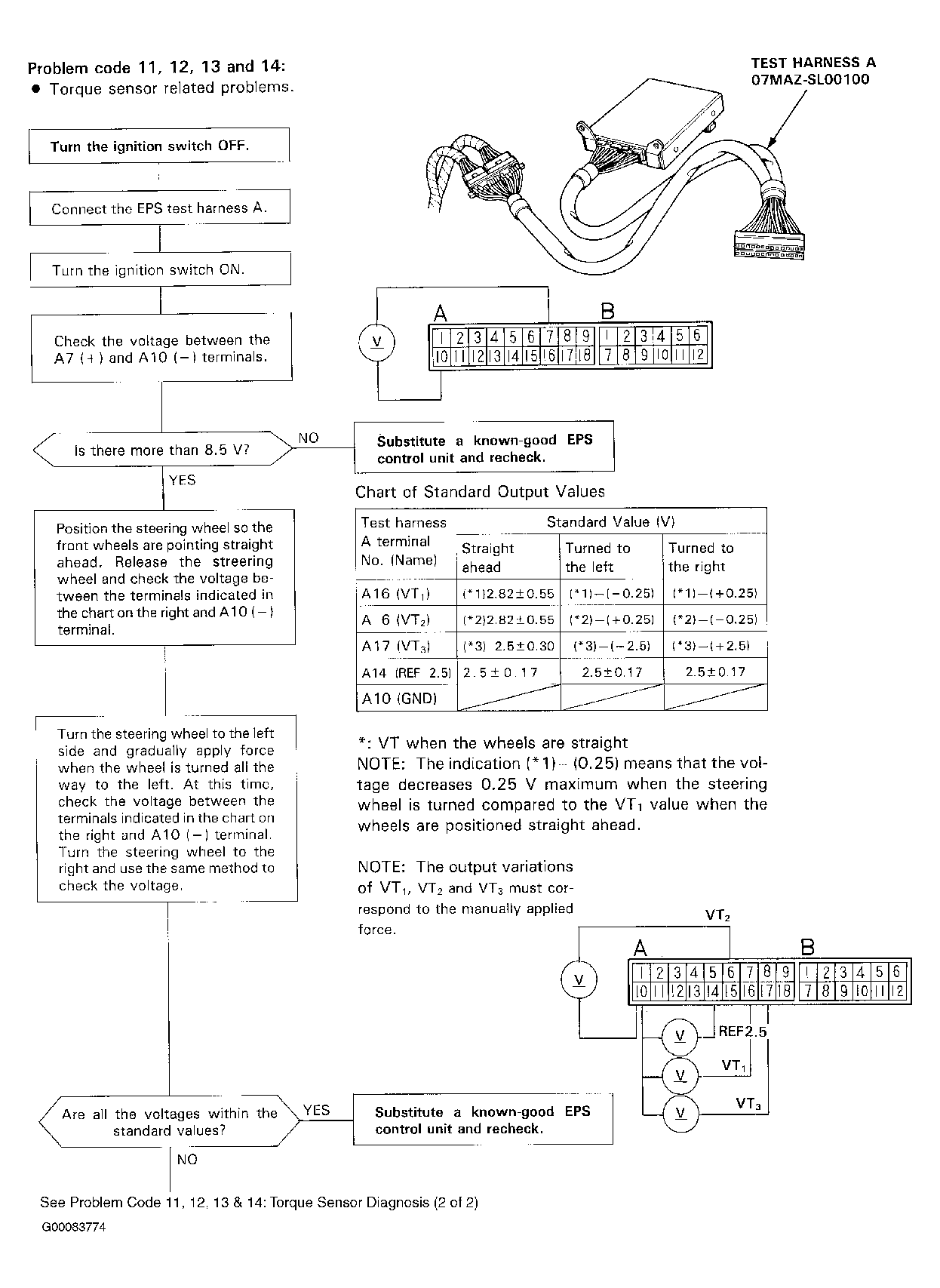

Fig 1: Problem Code 11, 12, 13 & 14 (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

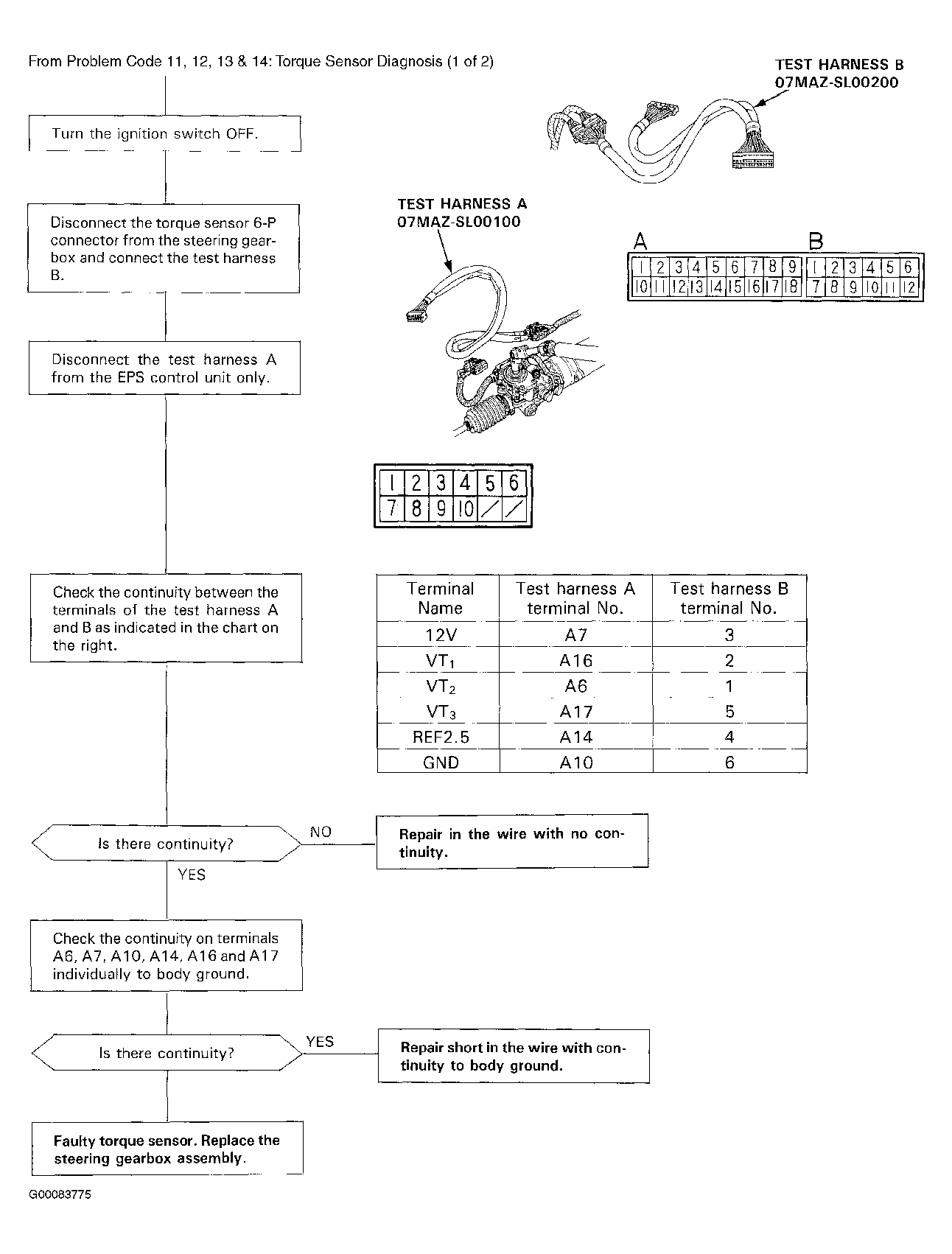

Fig 2: Problem Code 11, 12, 13 & 14 (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
